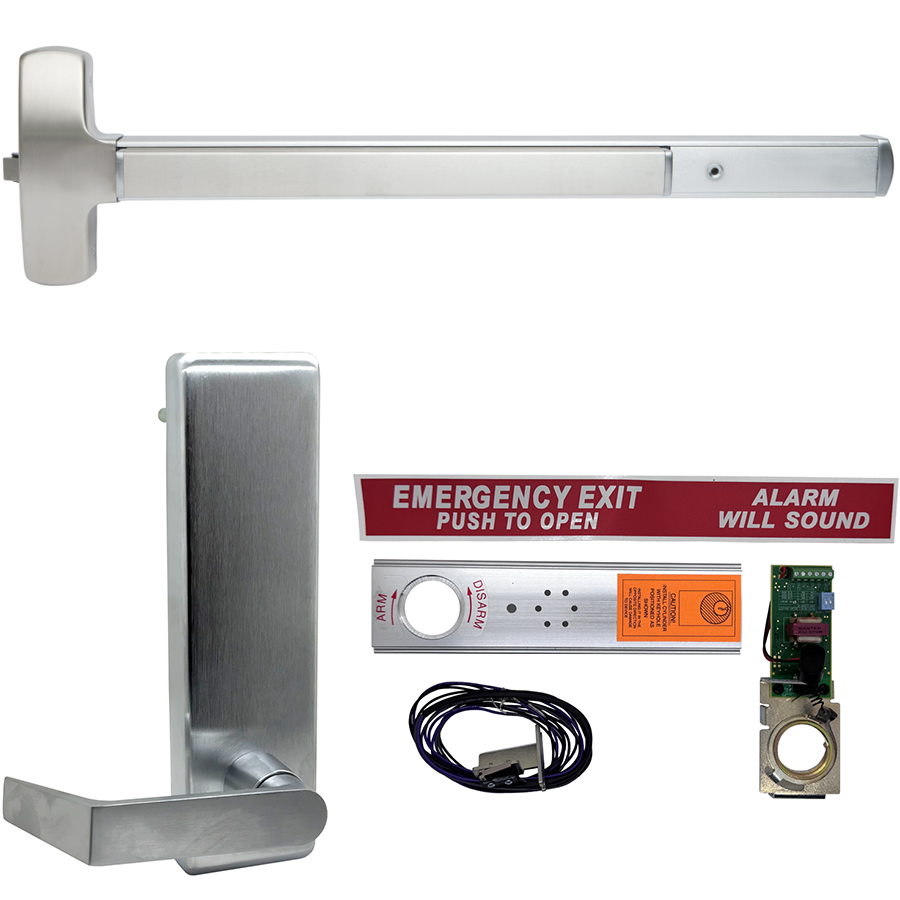

Falcon Lock EA-25R-L-BE-DAN-US26D-36-LHR Exit Alarm Rim Device w/ Blank Escutcheon Dane Lever Trim 510L-BE, Satin Chrome

Falcon Lock EA-25R-L-BE-DAN-US26D-36-LHR KIT is a robust exit alarm system designed for optimal security and safety. This Grade 1 rim exit device features a battery-powered exit alarm, which ensures effective monitoring of exit usage while adhering to egress requirements. When the touchbar is activated, a powerful 110 dB alarm sounds continuously, alerting you to unauthorized use of the exit. The EA feature is designed for ease of use; it can be reset with a standard 1 1⁄4" mortise cylinder. The system is powered by a single 9V battery, capable of lasting at least six months on standby. For added versatility, a 24-volt hardwire option is available. The device is compatible with various door types, including rim, mortise, and concealed vertical rod applications. Additional highlights include an external inhibit for card readers and LED indicators for armed, disarmed, and low battery conditions. The Falcon Lock EA-25R is UL listed and can be integrated with fail-safe or fail-secure trims, making it a reliable choice for security monitoring. Available in a sleek satin chrome finish (US26D), this exit alarm is both functional and aesthetically pleasing, ensuring that your security needs are met without compromising on style.

KIT - Exit Alarm, Rim Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
