Falcon Lock EA-25R-L-BE-DAN-US26D-36-RHR Exit Alarm Rim Device w/ Blank Escutcheon Dane Lever Trim 510L-BE, Satin Chrome

Falcon Lock EA-25R-L-BE-DAN-US26D-36-RHR KIT is a sophisticated exit alarm system designed for enhanced security and compliance with safety codes. This rim exit device features a battery-powered exit alarm that provides an effective means of monitoring exits while ensuring safe egress. When the touchbar is activated, a 110 dB alarm sounds, alerting you to the exit's use. Resetting the alarm is easily accomplished with a standard 1 1⁄4" mortise cylinder. Engineered for reliability, the EA-25R-L is UL listed and Grade 1 certified, making it suitable for high-traffic environments. It operates on a single 9V battery that can last over six months in standby mode, with the option for a 24 Volt hardwire connection. Additional features include LED indicators for armed, disarmed, and low battery statuses, as well as an external inhibit for card readers. This model is compatible with various door applications and allows for integration with fail-safe or fail-secure trim. Available in a sleek satin chrome finish (US26D), it combines functionality with aesthetic appeal, ensuring that your security measures do not compromise the visual integrity of your space. The Falcon Lock EA-25R-L-BE-DAN is a smart choice for those prioritizing safety and ease of use.

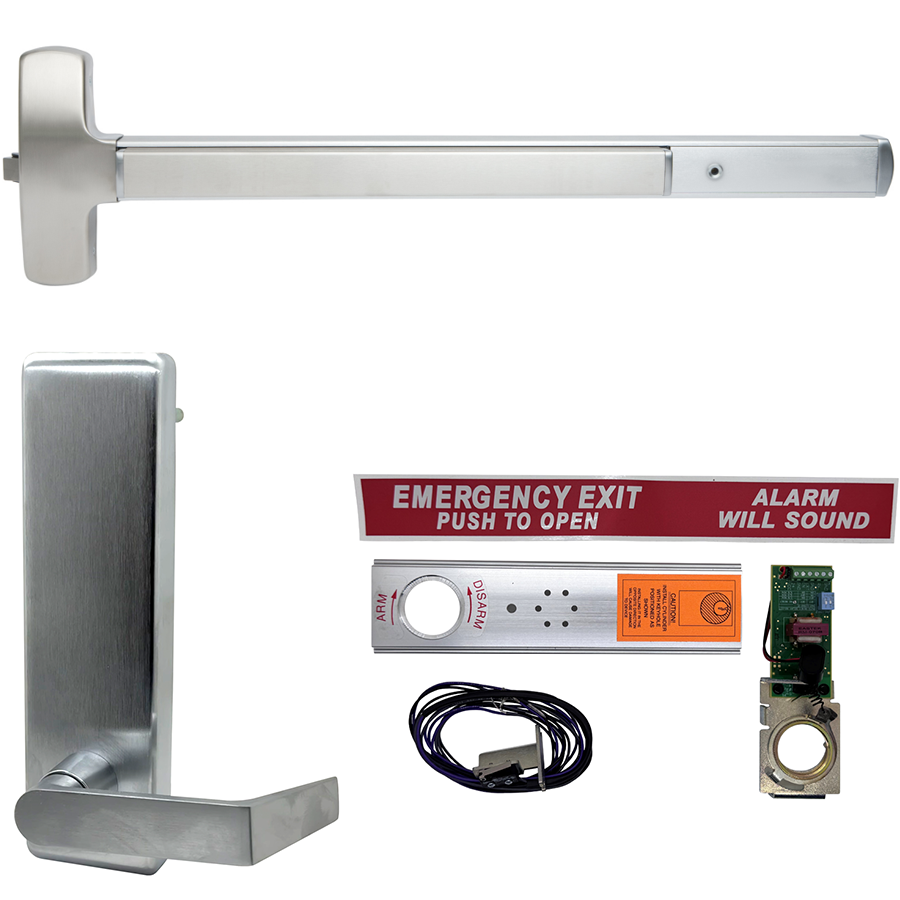

KIT - Exit Alarm, Rim Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
