Falcon Lock EA-25R-L-DAN-US26D-36-RHR KIT Exit Alarm Rim Device w/ Dane Lever Trim 510L, 36in, Grade 1, Satin Chrome

Falcon Lock EA-25R-L-DAN-US26D-36-RHR KIT combines robust security with innovative functionality, making it an ideal choice for panic devices and exit alarms. This exit alarm features a battery-powered design that effectively monitors exit usage while complying with egress code requirements. When the touchbar is activated, a powerful 110 dB alarm sounds continuously, alerting you to any unauthorized exit engagement. Resetting the alarm is simple, requiring only a standard 1 1⁄4" mortise cylinder. This unit is designed for versatility, compatible with rim, mortise, concealed, and surface vertical rod applications. The EA feature can work seamlessly with fail-safe and fail-secure trims, as well as security monitoring options. The 9V battery, designed to last for at least six months on standby, ensures reliable operation, while an optional 24V hardwire setup is available for added convenience. With a satin chrome finish (US26D) and Grade 1 certification, this exit device not only provides durability but also enhances the aesthetic of your space. The Falcon Lock EA-25R-L-DAN is perfect for professionals and homeowners seeking a secure, efficient solution for exit management. Elevate your security measures today with this reliable exit alarm system.

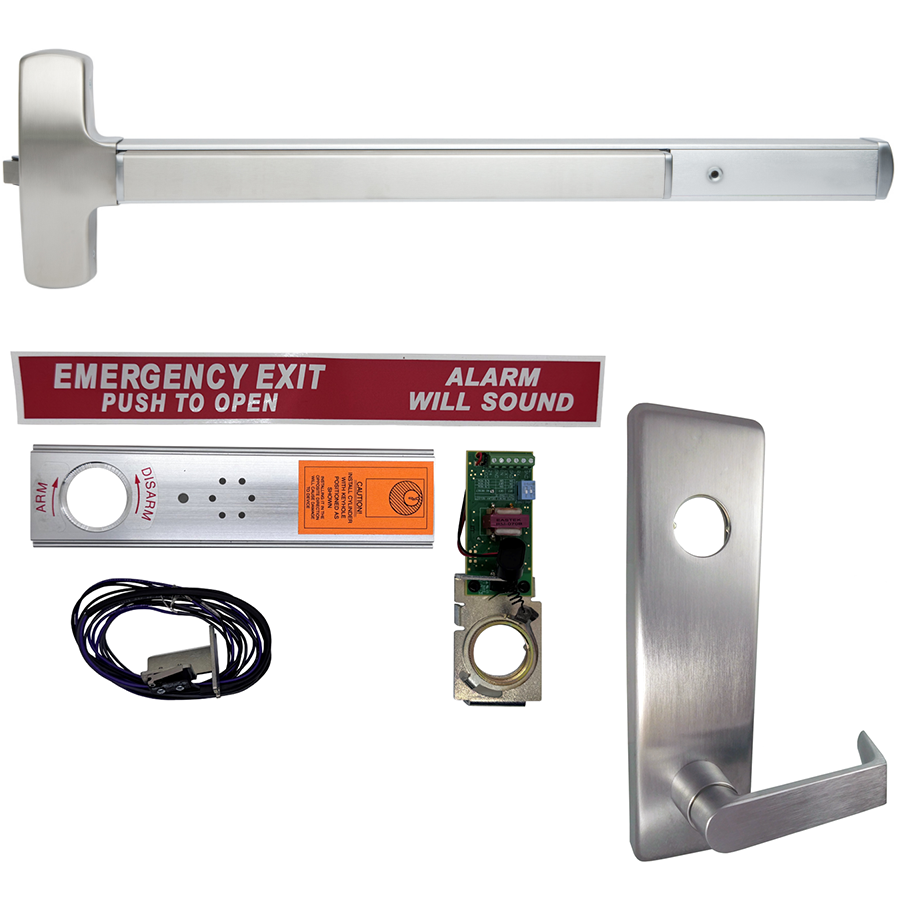

KIT - Exit Alarm, Rim Exit Device, Escutcheon x Dane Lever Trim 510L, 36in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
