Falcon Lock EA-25R-L-NL-DAN-US26D-36-LHR Exit Alarm Rim Device w/ Dane Lever Nightlatch Trim 510L-NL, Satin Chrome

Falcon Lock EA-25R-L-NL-DAN-US26D-36-LHR KIT combines security with convenience, featuring a battery-powered exit alarm designed to monitor exit usage while meeting egress codes. The robust exit device incorporates a 110 dB alarm that activates when the touchbar is depressed, providing immediate alerting of unauthorized exits. Resetting the alarm is straightforward, requiring a standard 1 1/4" mortise cylinder with an "A" cam. This exit device is UL listed and fits a variety of applications, including rim, mortise, concealed, and surface vertical rod setups. It is compatible with the recommended PS902 power supply, ensuring reliable operation for both single and double door installations. The exit alarm offers additional features such as a 24-volt hardwire option, LED indicators for armed, disarmed, and low battery statuses, and an external inhibit for card reader integration. Constructed in a sleek satin chrome finish (US26D), the Falcon Lock EA-25R-L-NL boasts a Grade 1 durability rating, making it a reliable choice for high-traffic areas. The left-handed reverse handing and lever-night latch design ensure ease of use, while the included Dane lever trim enhances aesthetic appeal. This product is ideal for anyone seeking a secure and practical exit alarm solution.

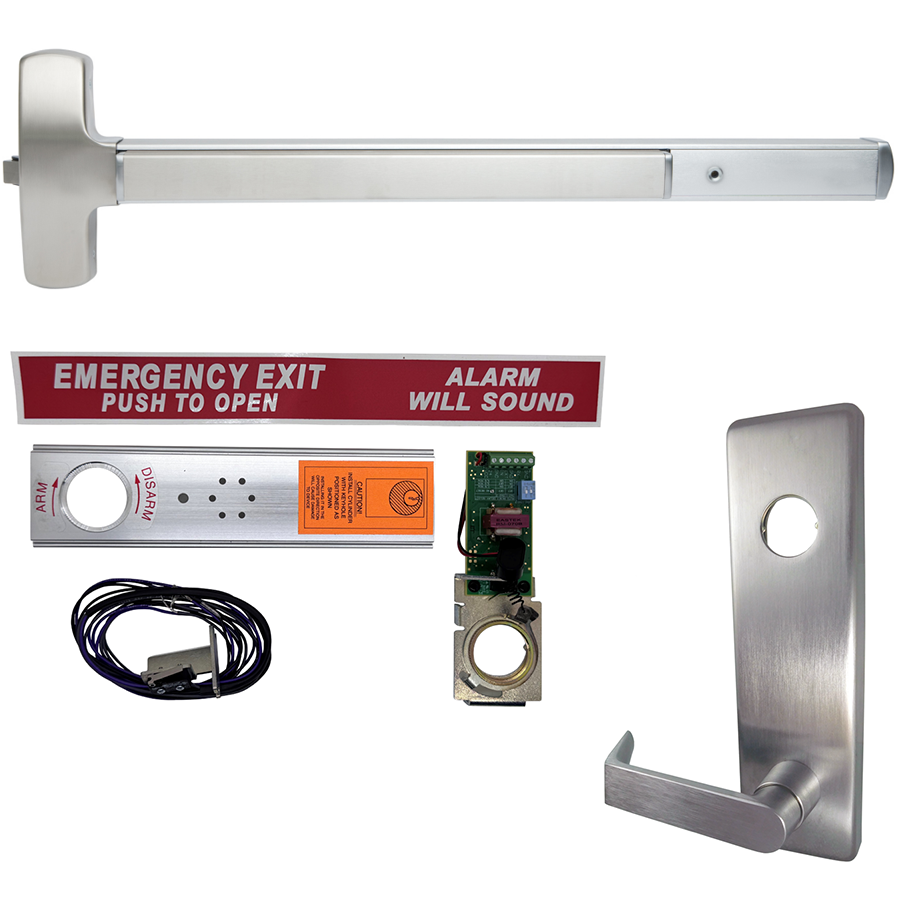

KIT - Exit Alarm, Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
