Falcon Lock EA-25R-L-NL-DAN-US26D-36-RHR Exit Alarm Rim Device w/ Dane Lever Nightlatch Trim 510L-NL, Satin Chrome

Falcon Lock EA-25R-L-NL-DAN-US26D-36-RHR KIT is a robust exit alarm solution designed to enhance security while ensuring compliance with egress requirements. This rim exit device features a built-in battery-powered alarm that emits a powerful 110 dB sound when the touchbar is engaged, alerting you to any unauthorized use of the exit. Resetting the alarm is straightforward, requiring only a standard 1 1/4" mortise cylinder. With a satin chrome finish (US26D) and a Grade 1 rating, this device is built to last. It accommodates various door sizes, specifically designed for 36-inch doors, and operates seamlessly with rim, mortise, concealed, and surface vertical rod applications. The alarm functionality can work alongside fail safe/fail secure trims and security monitoring features, providing flexibility in security configurations. The EA-25R also supports a hardwire option (24 Volt) and includes LED indicators for armed, disarmed, and low battery statuses, ensuring you remain informed about the unit’s operational state. Additionally, the single 9V battery can last for six months in standby mode, making maintenance hassle-free. Ideal for commercial spaces, this exit device combines security and convenience, making it an essential addition to your security arsenal.

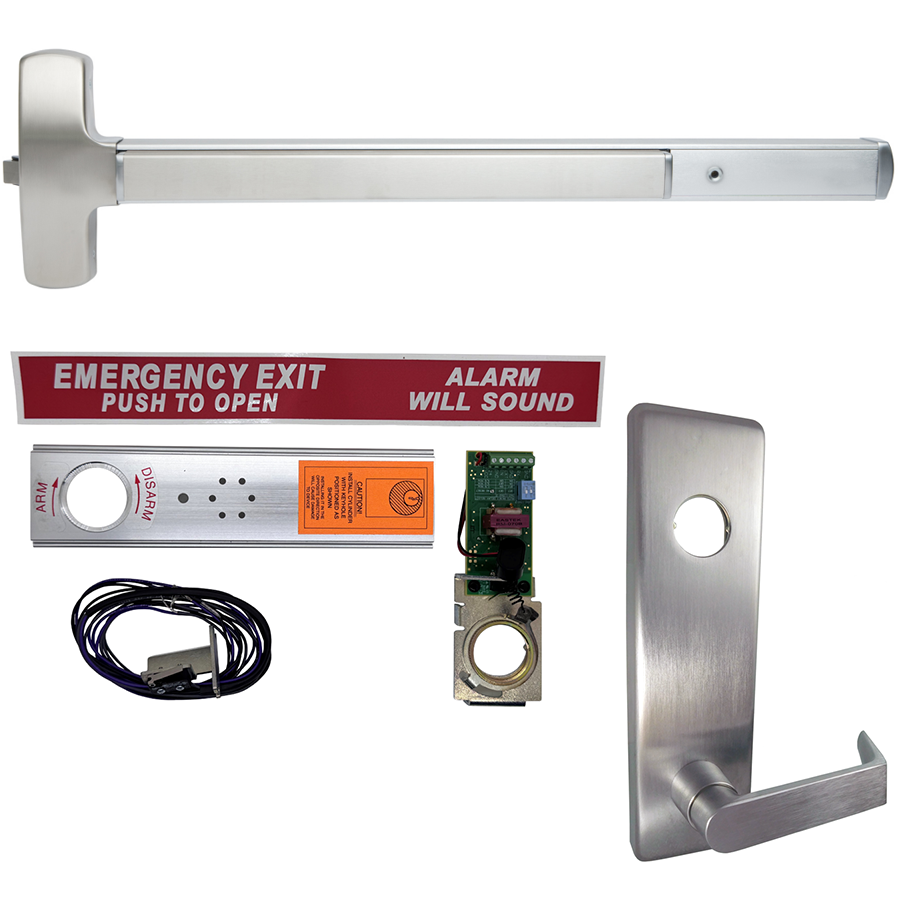

KIT - Exit Alarm, Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
