Falcon Lock EA-25R-L-NL-QUA-US26D-36-LHR Quantum Rim Exit Alarm Kit 510L-NL, 36in, Grade 1, Satin Chrome

Falcon Lock EA-25R-L-NL-QUA-US26D-36-LHR KIT is a robust exit alarm system designed for efficient monitoring and security of exit points. This Grade 1 rim exit device features a battery-powered alarm that emits a powerful 110 dB sound when the touchbar is pressed, ensuring immediate notification of exit usage while complying with egress code requirements. Its design allows for easy reset via a standard 1 1⁄4" mortise cylinder, and the single 9V battery can last up to six months in standby mode. Versatile in application, the EA feature can be integrated with various locking mechanisms, including rim, mortise, concealed, and surface vertical rod devices. Additional features include an external inhibit for card reader compatibility, LED indicators for armed, disarmed, and low battery status, and a 24-volt hardwire option for enhanced reliability. The unit is UL listed and compatible with Falcon's PS902 power supply, making it an ideal choice for both single and double door applications. Finished in sleek satin chrome (US26D), the EA-25R-L-NL-QUA is not only functional but also aesthetically appealing, suitable for any commercial environment. Essential for any security-conscious facility, this exit alarm device combines quality, reliability, and ease of use.

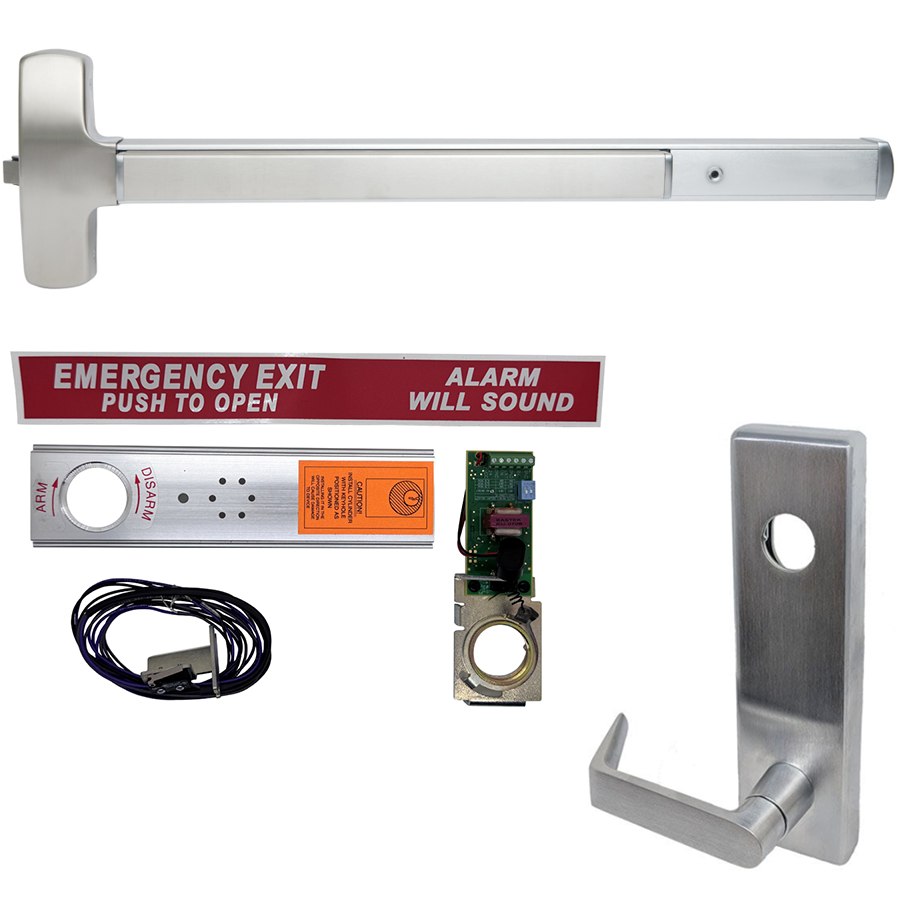

KIT - Exit Alarm, Rim Exit Device, Escutcheon x Quantum Lever Nightlatch Trim 510L-NL, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
