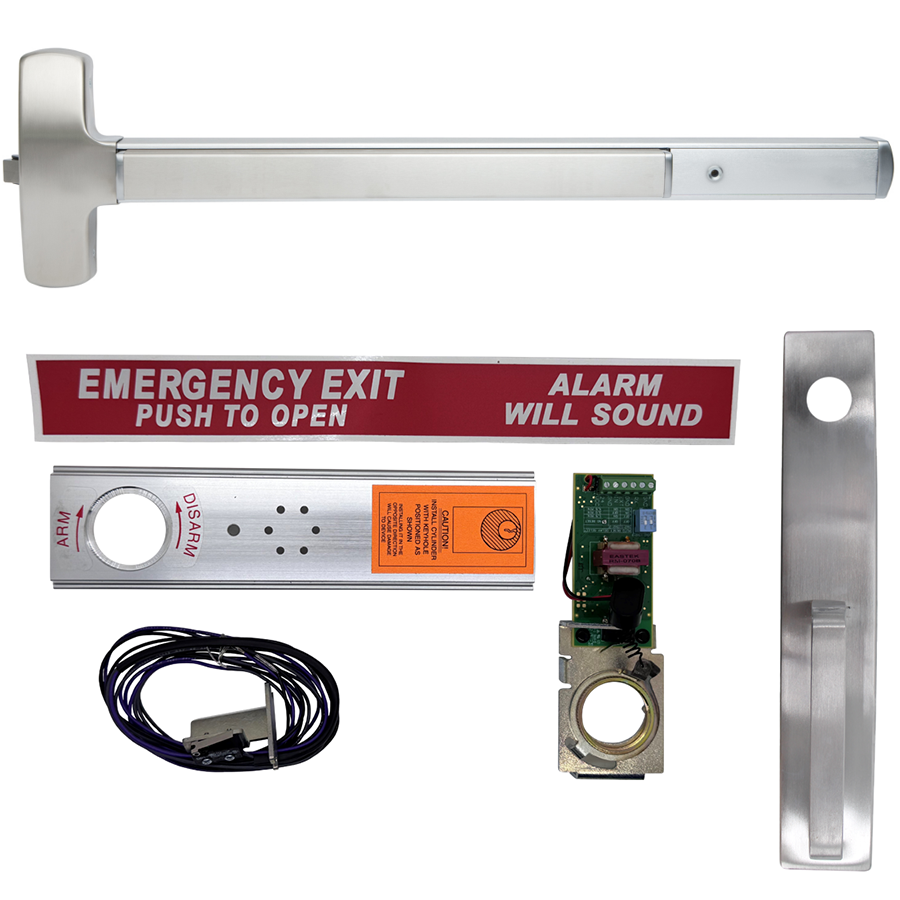

Falcon Lock EA-25R-NL-US26D-36 KIT - Exit Alarm Rim Device, Nightlatch Pull Trim 512NL, 36in, Grade 1, Satin Chrome

Falcon Lock EA-25R-NL-US26D-36 KIT is a sophisticated exit alarm system designed to enhance security while ensuring compliance with safety codes. This rim exit device features an integrated battery-powered alarm that sounds at a robust 110 dB when the touchbar is engaged, effectively notifying personnel of exit use without compromising egress. The alarm can be easily reset with a standard 1 ¼" mortise cylinder, making it user-friendly for maintenance. Constructed for durability, the EA-25R-NL is UL listed and meets Grade 1 standards, ensuring reliability in high-traffic environments. It supports various electrical options, including a hardwire connection and a 9V battery that lasts up to six months in standby mode. For enhanced functionality, an external inhibit for card readers is provided, along with LED indicators to display armed, disarmed, and low battery statuses. This exit device is compatible with a range of door types and strike configurations, accommodating both single and double doors. The satin chrome finish adds a sleek appearance, making it suitable for any aesthetic. Additionally, the EA feature can integrate with existing security monitoring systems, enhancing your overall security strategy. Choose the Falcon Lock EA-25R-NL-US26D-36 KIT for dependable exit security that prioritizes safety and functionality.

KIT - Exit Alarm, Rim Exit Device, Nightlatch Pull Trim 512NL, 36in, Less Dogging, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
