Falcon Lock EA-25V-DT-US26D-36X96 SVR Exit Alarm Device, Dummy Pull Trim 512DT, 36"x96", Left Hand, Satin ChromeFalcon Lock EA-25V-DT-US26D-36X96 KIT is a high-performance exit alarm system designed for safety and security. This unit features a battery-powered exit alarm that effortlessly monitors exit usage while complying with egress requirements. When the touchbar is activated, the 110 dB alarm emits a continuous sound, alerting personnel that the exit has been engaged. It resets easily using a standard 1 1⁄4" mortise cylinder, ensuring straightforward operation. Constructed with a Grade 1 rating, this model is built to withstand the rigors of daily use. The exit device accommodates various door types, including rim, mortise, concealed, and surface vertical rod applications. An external inhibit option for card readers adds versatility, making it suitable for access control systems. The EA-25V-DT comes with LED indicators to show armed, disarmed, and low battery status. It can also be powered through a hardwired 24 Volt option or a single 9V battery, which lasts a minimum of six months on standby. Offered in a sleek satin chrome finish, this unit not only enhances security but also complements modern architectural aesthetics. Trust Falcon Lock to provide reliable security solutions that prioritize both safety and functionality.

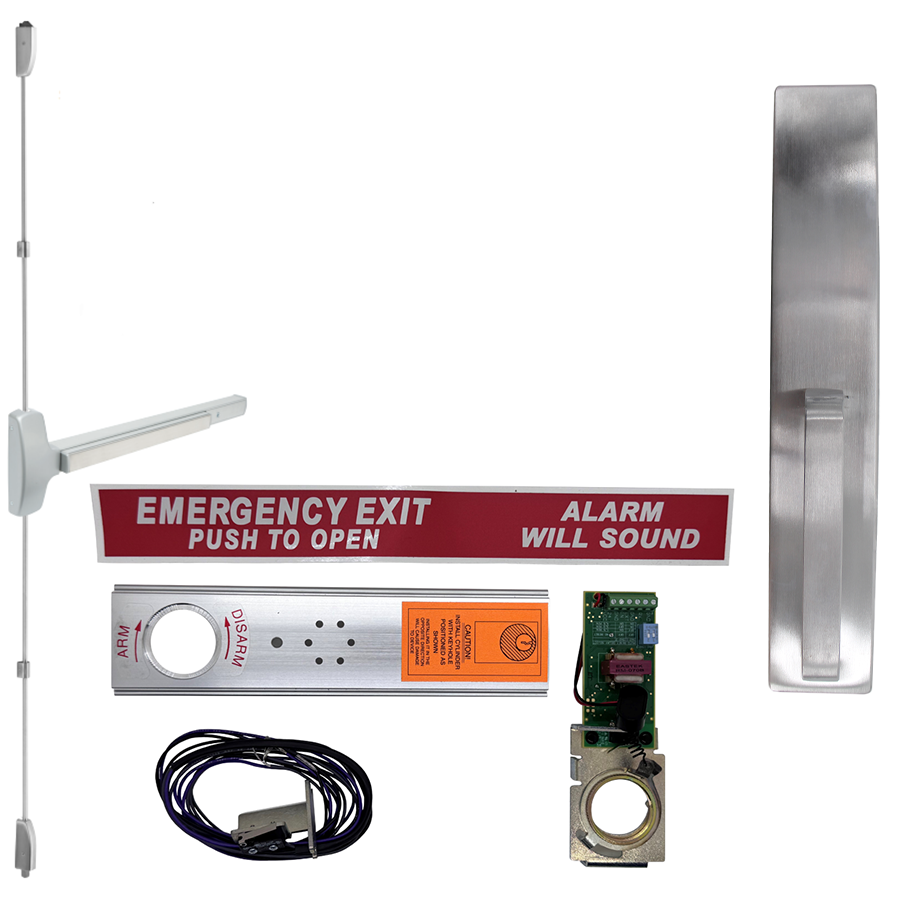

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Dummy Pull Trim 512DT, 36in x 96in, Less Dogging, Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).
Features:
- 110 dB alarm
- 24 Volt hardwire option
- 9V Battery input
- External inhibit for card reader
- LED indication
- Armed
- Disarmed
- Low battery
- EAK retrofit kit avialable for your existing devices
Specifications:
- Works with rim, mortise, concealed, surface vertical rod
- UL listed
- The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
- PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.
Stock Sizes:
| Device |
Door Size |
Door Strike |
Min. Door Opening Width |
| EA-25-R |
3' |
299 |
2' 9 1⁄4" |
| EA-25-R |
3' |
264 |
2’ 9 1⁄8" |
| EA-25-R |
3' |
1439 |
2’ 8 3⁄8" |
| EA-25-R |
3' |
1606 |
2’ 8 7⁄8" |
| EA-25-R |
4' |
299 |
3' 3 1⁄4" |
| EA-25-R |
4' |
264 |
3’ 3 1⁄8" |
| EA-25-R |
4' |
1439 |
3’ 3 7⁄8" |
| EA-25-R |
4' |
1606 |
3’ 3 7⁄8" |
| EA-25-C |
3' |
All |
2’ 8 7⁄8" |
| EA-25-C |
4' |
All |
3’ 2 7⁄8" |
| EA-25-M |
3' |
All |
2’ 9 1⁄4" |
| EA-25-M |
4' |
All |
3’ 3 1⁄4" |
| EA-25-V |
3' |
All |
2’ 8 7⁄8" |
| EA-25-V |
4' |
All |
3’ 2 7⁄8" |
Finishes:
- US3/605 - Brass, Bright
- US4/606 - Brass, Satin
- US10/612 - Bronze, Satin
- US11/643e - Bronze, Aged
- US15/619 - Nickel, Satin
- US19/622 - Black, Matte
- US26/625 - Chromium, Bright
- US26D/626 - Chromium, Satin
- US28/628 - Anodized, Aluminum
- US32/629 - Stainless Steel, Bright
- US32D/630 - Stainless Steel, Satin
- 313AN/710 - Anodized Duranodic
Attributes
Ship via: No UPS - Common Carrier Only
Access Type: Alarmed Exit
Alternate Codes: EA-25V-DT-US26D-36X96, EA25VDTUS26D36X96
Category: Exit Alarms, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, UL 305
Device Width: 36"
Dogging: HD - Hex Dogging
Door Application: Panic Devices & Exit Alarms
Electrical Option: Exit Alarm
Exit Device Category: Surface vertical rod
Finish Code: US26D
Finish Color: Brushed Chrome
Function: Dummy Trim
Grade: Grade 1
Manufacturer: Falcon Lock
Rod Extension: 12"
Series: 25
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
Trim Option: Night Latch, Thumbpiece Trim
