Falcon Lock EA-25V-L-BE-DAN-US26D-36X96-LHR SVR Surface Vertical Rod Exit Alarm Device, Blank Escutcheon, Dane Lever Trim

Falcon Lock EA-25V-L-BE-DAN-US26D-36X96-LHR KIT combines security and functionality with its innovative design as an exit alarm and surface vertical rod exit device. This Grade 1 device features a robust 110 dB alarm that activates when the touchbar is engaged, providing a reliable method for monitoring exit usage while still adhering to egress codes. The exit alarm operates on a single 9V battery, boasting a six-month standby life, ensuring minimal maintenance. Designed for versatility, the EA feature is compatible with rim, mortise, concealed, and surface vertical rod applications. It incorporates an external inhibit for card readers and LED indicators for armed, disarmed, and low battery statuses. The unit can be reset using a standard 1¼" mortise cylinder with an "A" cam, simplifying control. With a sleek satin chrome finish (US26D) and a left-hand reverse handing, this exit device is both aesthetically pleasing and functional. It includes a blank escutcheon paired with the Dane lever trim, making it suitable for various door sizes, specifically 36 inches wide and 96 inches tall. UL listed and compliant with ANSI standards, the Falcon Lock EA-25V is an ideal solution for enhancing security in commercial and public spaces.

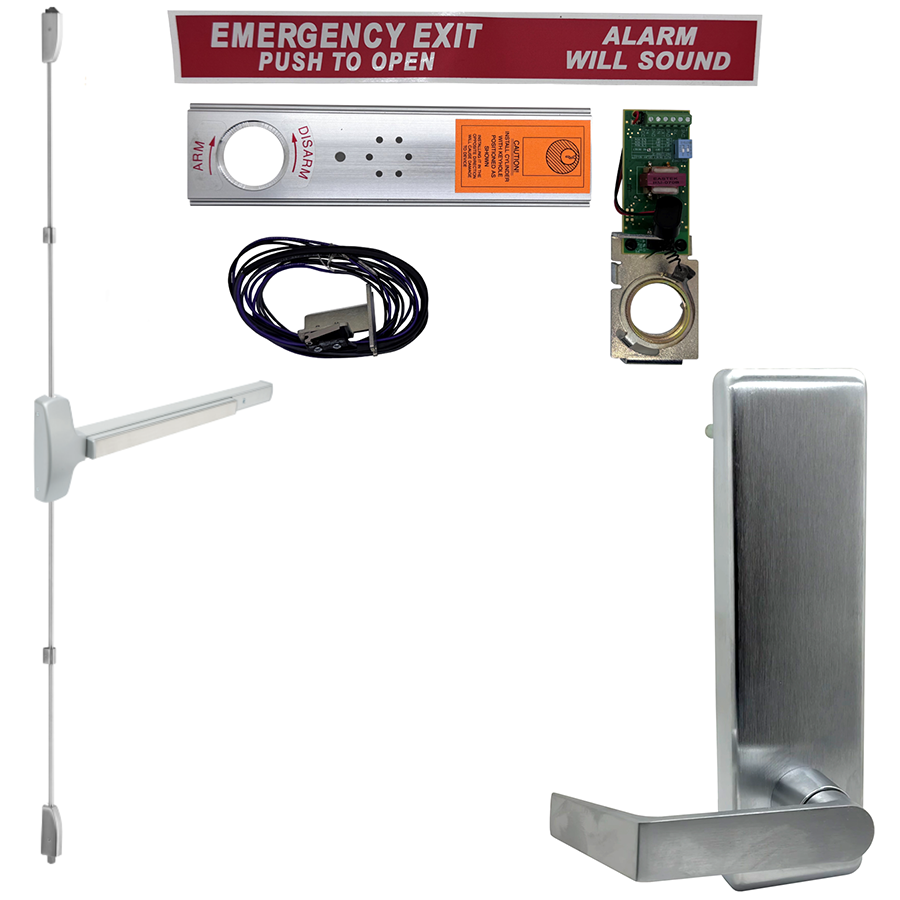

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
