Falcon Lock EA-25V-L-BE-DAN-US26D-36X96-RHR SVR Surface Vertical Rod Exit Device with Dane Lever Trim 510L-BE, Satin Chrome

Falcon Lock EA-25V-L-BE-DAN-US26D-36X96-RHR KIT is an advanced exit alarm system designed to enhance security while ensuring compliance with building codes. This surface vertical rod exit device features a robust battery-powered alarm, which activates a continuous 110 dB sound when the touchbar is engaged, alerting you to exit usage. The system is equipped with a 9V battery that lasts for at least six months on standby, making it a reliable choice for high-traffic areas. Constructed for durability, the EA-25V series meets Grade 1 standards and is UL listed, ensuring top-notch security performance. The unit's design allows for compatibility with various door types, including rim and mortise applications. It also includes an external inhibit for card reader integration and LED indicators for armed, disarmed, and low battery status. The device is finished in satin chrome (US26D), providing a sleek look that complements any environment. Additionally, it incorporates a blank escutcheon with Dane lever trim, allowing for seamless installation. Ideal for panic devices and exit alarms, the Falcon Lock EA-25V-L-BE-DAN is your go-to solution for effective exit monitoring and safety compliance.

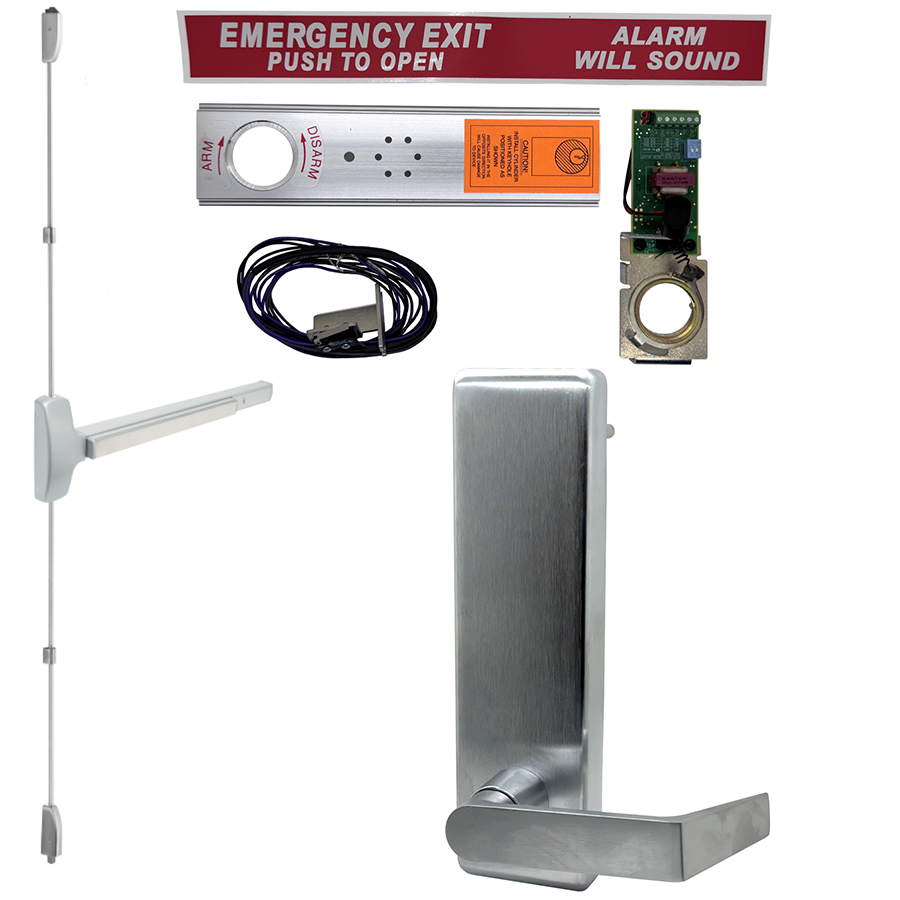

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 36in x 96in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
