Falcon Lock EA-25V-L-DAN-US26D-36X96-LHR KIT is a robust exit alarm system designed to enhance security while ensuring compliance with egress requirements. This surface vertical rod exit device features a durable satin chrome finish (US26D) and is available in a left-hand reverse configuration. The integrated exit alarm operates with a powerful 110 dB sound, providing a clear alert whenever the touchbar is engaged, ensuring that unauthorized exits are promptly noticed. This device comes equipped with a battery-powered option that utilizes a single 9V battery, boasting a standby life of at least six months. Alternatively, a 24-volt hardwire connection is also available for more permanent installations. The EA feature can be reset with a standard 1 ¼" mortise cylinder and includes an external inhibit for card readers, enhancing your access control capabilities. The EA-25V is UL listed and built to accommodate various door types, including rim, mortise, and concealed systems. It works seamlessly with additional security monitoring features, providing versatility for different security needs. With a device width of 36 inches and compatibility with multiple strikes, this exit alarm is an ideal choice for both commercial and residential applications. Choose Falcon Lock for reliable protection and peace of mind.

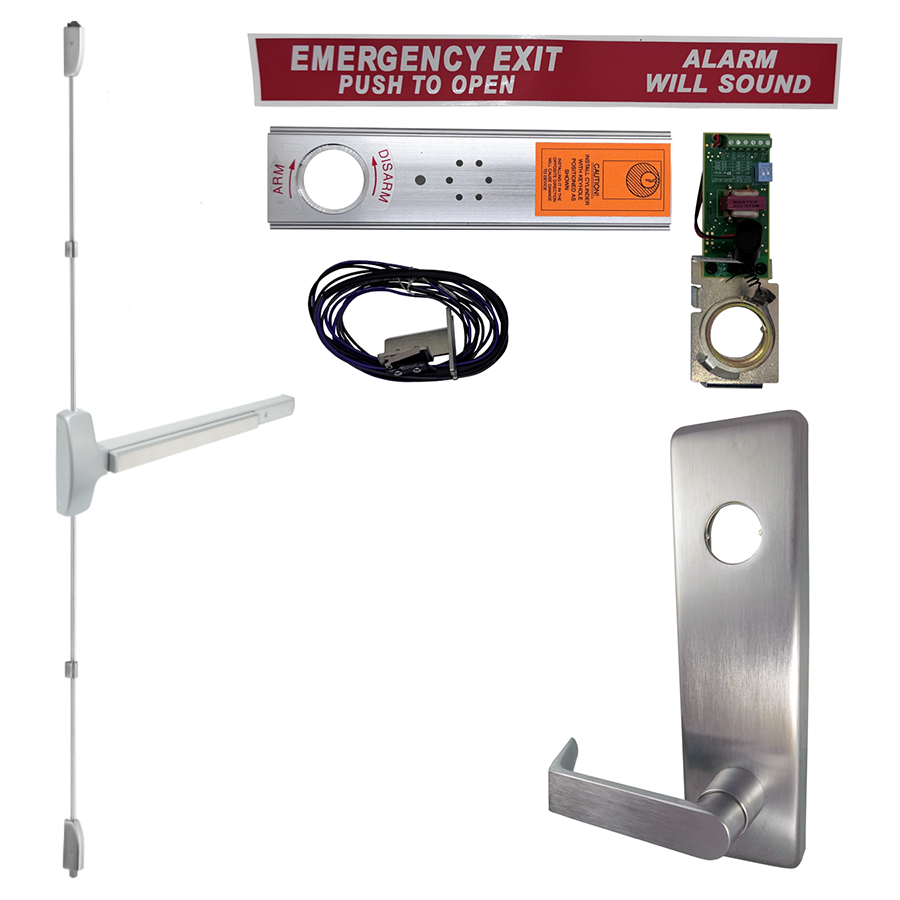

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Escutcheon x Dane Lever Trim 510L, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
