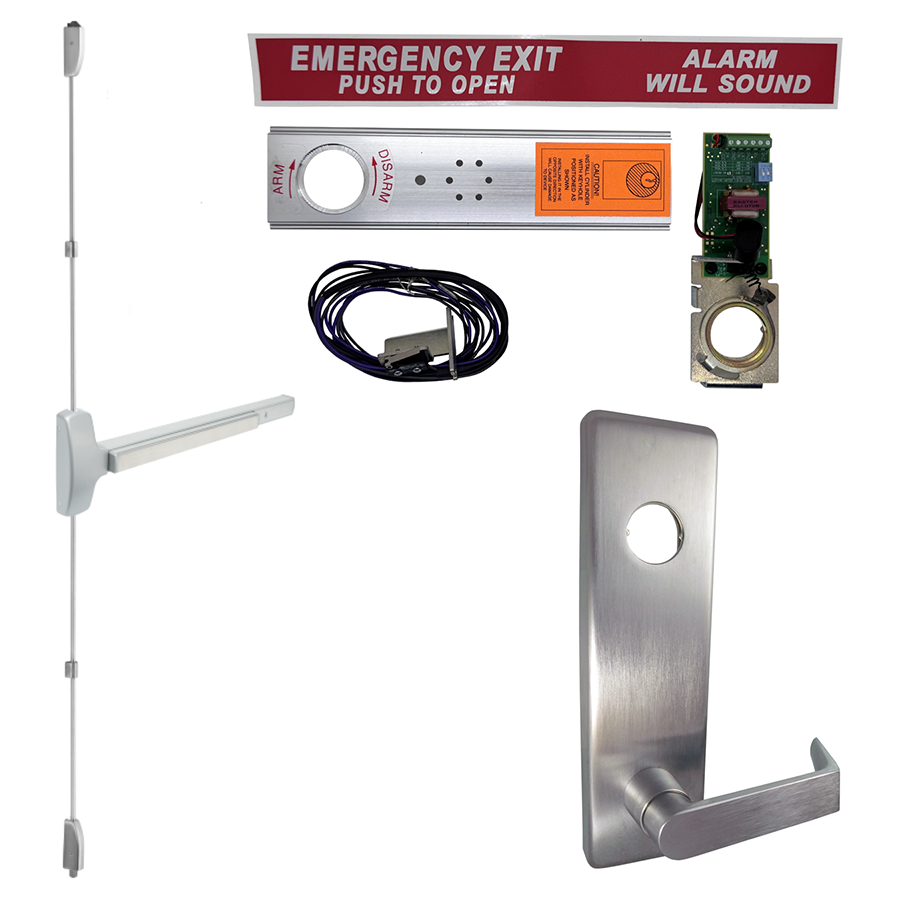

Falcon Lock EA-25V-L-DAN-US26D-36X96-RHR SVR Exit Device Alarm Kit, Dane Lever Trim 510L, 36"x96", Satin Chrome

Falcon Lock EA-25V-L-DAN-US26D-36X96-RHR KIT is a robust exit alarm system designed for enhanced security while ensuring safe egress. This surface vertical rod exit device features a battery-powered alarm that activates when the touchbar is depressed, providing a continuous 110 dB sound to alert personnel of unauthorized exit use. The system is equipped with a standard 1 1⁄4" mortise cylinder for reset, ensuring ease of use. Constructed to meet Grade 1 standards, the EA-25V is UL listed and compatible with a variety of door types, including rim, mortise, concealed, and surface vertical rod applications. The satin chrome finish (626/US26D) adds a sleek look while enhancing durability. With a single 9V battery, the exit alarm operates efficiently for up to six months on standby. Additional features include an optional 24 Volt hardwire setup, external inhibit for card readers, and LED indicators for armed, disarmed, and low battery status. Designed for versatility, the EA-25V can work seamlessly with fail-safe or fail-secure trims and security monitoring systems. Ideal for high-traffic areas requiring stringent access control, Falcon Lock’s EA-25V-L-DAN ensures safety and functionality in one comprehensive package.

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Escutcheon x Dane Lever Trim 510L, 36in x 96in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
