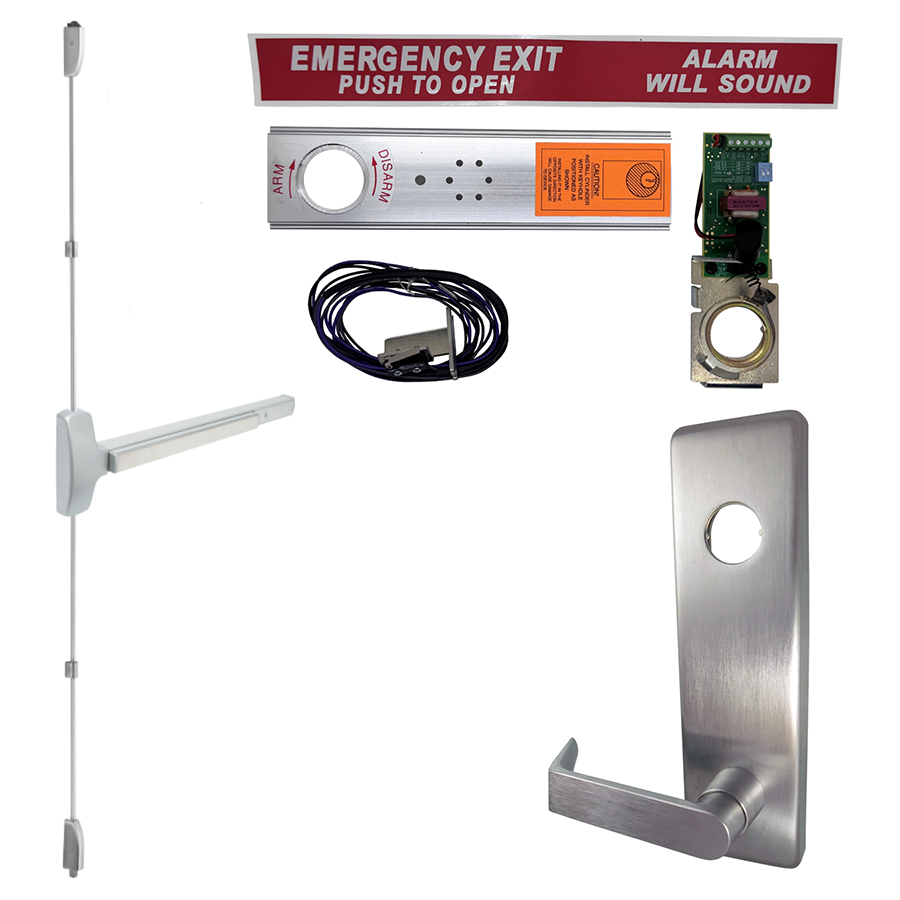

Falcon Lock EA-25V-L-NL-DAN-US26D-36X96-LHR SVR Surface Vertical Rod Exit Device with Dane Lever Nightlatch Trim 510L-NL

Falcon Lock EA-25V-L-NL-DAN-US26D-36X96-LHR KIT is an advanced exit alarm and exit device designed to enhance security while ensuring compliance with safety codes. This model features a battery-powered exit alarm that activates with a continuous 110 dB sound when the touchbar is engaged, effectively monitoring exit usage without compromising egress. Designed for durability, this device is UL listed and graded as Grade 1, ensuring superior performance in high-traffic environments. The exit alarm operates on a single 9V battery, which can last for at least six months in standby mode, and can also be hardwired for a 24-volt option. An external inhibit for card readers and LED indications for armed, disarmed, and low battery status add to its functionality. The unit is compatible with various door types, including rim, mortise, and concealed vertical rod applications. This kit includes the Dane lever nightlatch trim, available in a sleek satin chrome finish (US26D), and is designed for left-handed reversible installations. The EA feature integrates seamlessly with other security systems, making it an ideal choice for commercial and residential buildings alike. With dimensions of 36 inches by 96 inches, this exit device is a powerful combination of security and accessibility.

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
