Falcon Lock EA-25V-L-NL-DAN-US26D-36X96-RHR SVR Surface Vertical Rod Exit Device with Dane Lever Nightlatch Trim 510L-NL

Falcon Lock EA-25V-L-NL-DAN-US26D-36X96-RHR KIT is an advanced exit alarm system designed to enhance security while ensuring compliance with egress requirements. This state-of-the-art device features a battery-powered exit alarm that emits a powerful 110 dB sound when the touchbar is activated, effectively alerting you to any unauthorized exits. The EA-25V is engineered for versatility, compatible with rim, mortise, concealed, and surface vertical rod installations. It includes an external inhibit for card reader integration and offers both 9V battery input and a 24 Volt hardwire option for flexible power solutions. With LED indicators for armed, disarmed, and low battery status, you can easily monitor the system's functionality. Constructed to Grade 1 standards and UL listed, this device guarantees durability and security. The satin chrome finish (US26D) adds a sleek look that complements various architectural styles. The right-hand reverse handing configuration allows for easy installation on applicable doors. Additionally, the exit device can be retrofitted with the EAK option for existing devices, making it a practical choice for upgrades. Whether for commercial or residential applications, the Falcon Lock EA-25V-L-NL-DAN offers reliable exit monitoring with cutting-edge features for peace of mind.

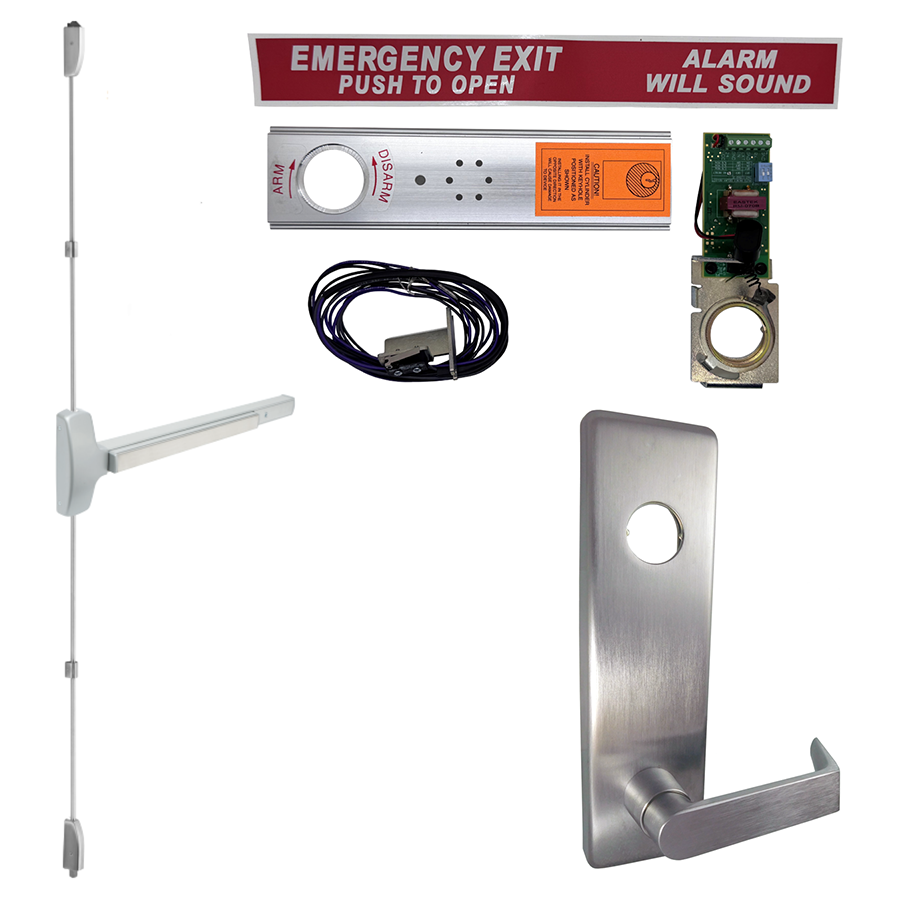

KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in x 96in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
