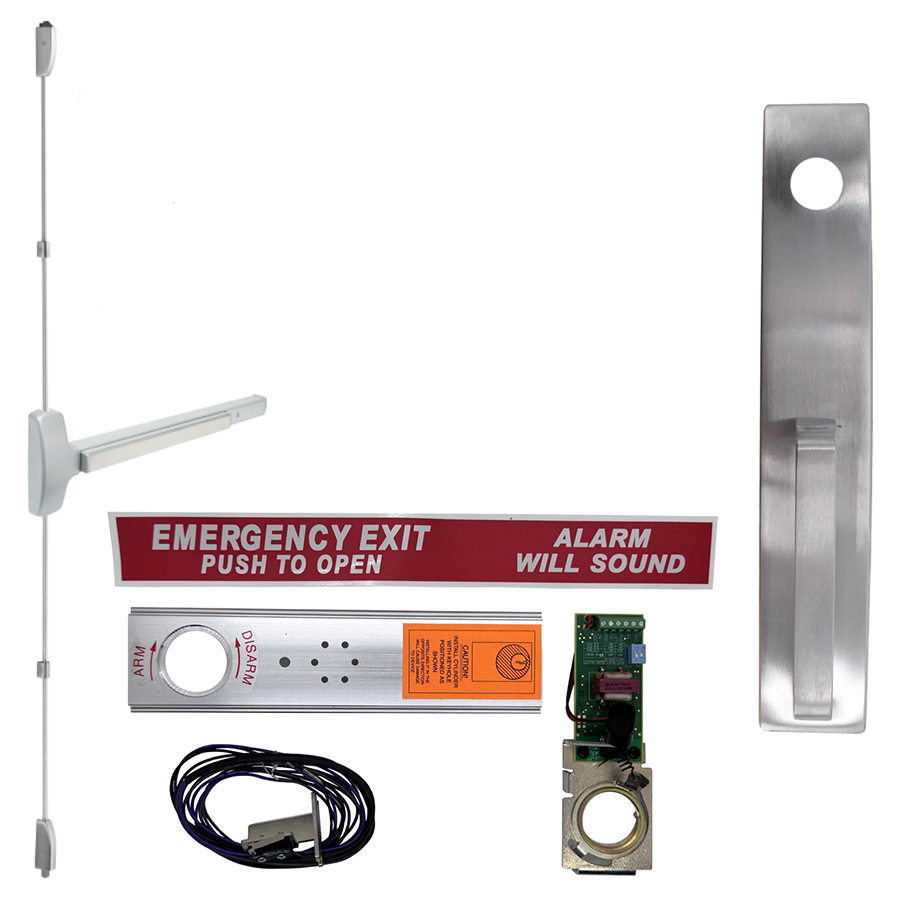

Falcon Lock EA-25V-NL-US26D-36X96 SVR Exit Alarm Device, Nightlatch Pull Trim 512NL, 36"x84", Left Hand, Satin ChromeFalcon Lock EA-25V-NL-US26D-36X96 KIT is an advanced exit alarm system designed to enhance security while ensuring compliance with egress codes. This unit features a battery-powered exit alarm that activates when the touchbar is depressed, emitting a robust 110 dB sound to alert personnel of exit use. It includes a durable nightlatch pull trim, allowing for easy access while maintaining safety protocols. Constructed for reliability, this exit device accommodates various door types, including rim, mortise, concealed, and surface vertical rods. Its Grade 1 certification ensures top-tier performance and durability. The unit is customizable with options for a 24 Volt hardwire connection or a 9V battery, capable of lasting up to six months in standby mode. Additionally, an external inhibit for card readers is provided, alongside LED indicators for armed, disarmed, and low battery statuses. The Falcon Lock EA-25V-NL is UL listed and compatible with fail-safe or fail-secure trims, making it adaptable to different security monitoring systems. Available in a sleek satin chrome finish, this exit alarm not only offers functionality but also adds a modern touch to any facility. With a device width of 36 inches and flexible rod extensions, it’s an ideal choice for various applications, ensuring safety without compromising accessibility.
KIT - Exit Alarm, SVR Surface Vertical Rod Exit Device, Nightlatch Pull Trim 512NL, 36in x 84in, Less Dogging, Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).
Features:
- 110 dB alarm
- 24 Volt hardwire option
- 9V Battery input
- External inhibit for card reader
- LED indication
- Armed
- Disarmed
- Low battery
- EAK retrofit kit avialable for your existing devices
Specifications:
- Works with rim, mortise, concealed, surface vertical rod
- UL listed
- The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
- PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.
Stock Sizes:
| Device |
Door Size |
Door Strike |
Min. Door Opening Width |
| EA-25-R |
3' |
299 |
2' 9 1⁄4" |
| EA-25-R |
3' |
264 |
2’ 9 1⁄8" |
| EA-25-R |
3' |
1439 |
2’ 8 3⁄8" |
| EA-25-R |
3' |
1606 |
2’ 8 7⁄8" |
| EA-25-R |
4' |
299 |
3' 3 1⁄4" |
| EA-25-R |
4' |
264 |
3’ 3 1⁄8" |
| EA-25-R |
4' |
1439 |
3’ 3 7⁄8" |
| EA-25-R |
4' |
1606 |
3’ 3 7⁄8" |
| EA-25-C |
3' |
All |
2’ 8 7⁄8" |
| EA-25-C |
4' |
All |
3’ 2 7⁄8" |
| EA-25-M |
3' |
All |
2’ 9 1⁄4" |
| EA-25-M |
4' |
All |
3’ 3 1⁄4" |
| EA-25-V |
3' |
All |
2’ 8 7⁄8" |
| EA-25-V |
4' |
All |
3’ 2 7⁄8" |
Finishes:
- US3/605 - Brass, Bright
- US4/606 - Brass, Satin
- US10/612 - Bronze, Satin
- US11/643e - Bronze, Aged
- US15/619 - Nickel, Satin
- US19/622 - Black, Matte
- US26/625 - Chromium, Bright
- US26D/626 - Chromium, Satin
- US28/628 - Anodized, Aluminum
- US32/629 - Stainless Steel, Bright
- US32D/630 - Stainless Steel, Satin
- 313AN/710 - Anodized Duranodic
Attributes
Access Type: Alarmed Exit
Alternate Codes: EA-25V-NL-US26D-36X96, EA25VNLUS26D36X96
Category: Exit Alarms, Panic Devices & Exit Alarms
Certifications: A156.3, ANSI, UL 305
Device Width: 36"
Dogging: HD - Hex Dogging
Door Application: Panic Devices & Exit Alarms
Electrical Option: Exit Alarm
Exit Device Category: Surface vertical rod
Finish Code: US26D
Finish Color: Brushed Chrome
Function: Key Retracts, Night Latch
Grade: Grade 1
Manufacturer: Falcon Lock
Rod Extension: 12"
Series: 25
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
Trim Option: Night Latch, Thumbpiece Trim
