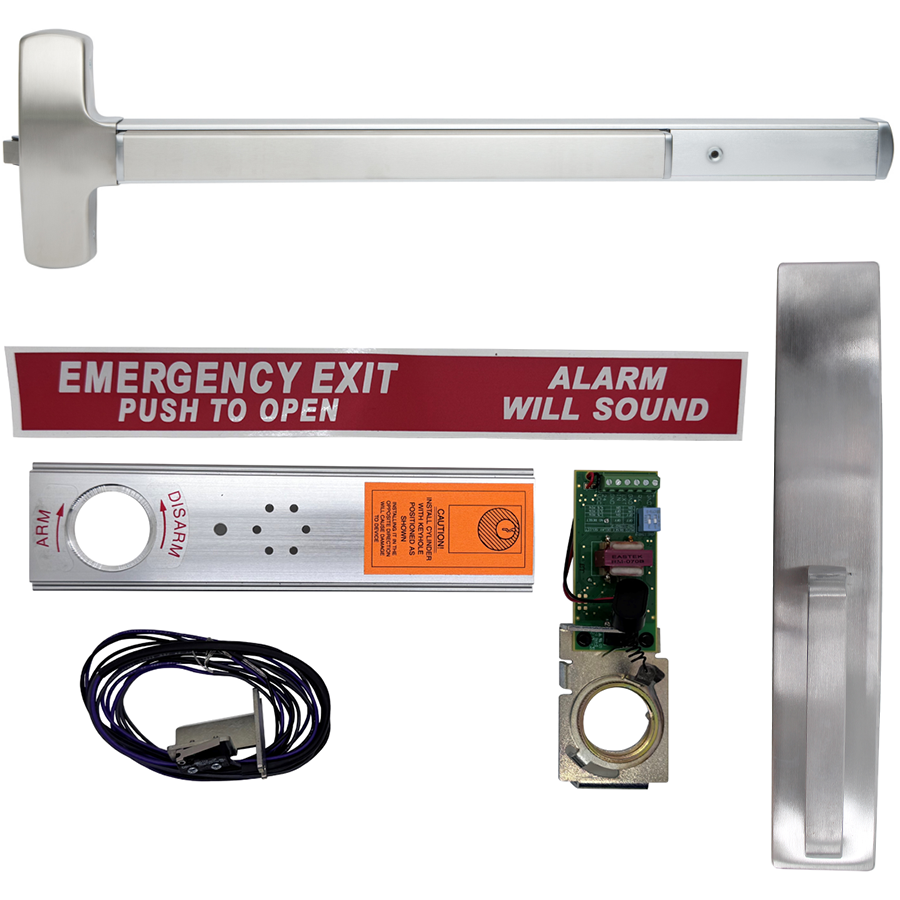

Falcon Lock EA-F25R-DT-US26D-36 KIT Exit Alarm Fire Rated Rim Device 512DT 36in Less Dogging LHR Grade 1 Satin Chrome

Falcon Lock EA-F25R-DT-US26D-36 KIT offers a reliable and secure exit solution, combining a fire-rated rim exit device with a dummy pull trim. Designed for durability and compliance, this Grade 1 device is perfect for both commercial and residential applications. The sleek satin chrome finish not only enhances aesthetics but also provides impact resistance, thanks to its extruded aluminum construction. This exit device features a battery-powered alarm that activates when the touchbar is engaged, ensuring effective monitoring of exit use while adhering to egress codes. The alarm can be easily reset with a standard mortise cylinder, and the single 9V battery can last up to six months on standby. With a non-handed design, the device is versatile for various installations, making it suitable for narrow stile aluminum doors. The EA-F25R includes a stainless steel push pad cover for added durability, and its flush-end caps reduce the risk of damage in high-traffic areas. The unit is UL certified with a "B" label for 90 minutes, making it an excellent choice for safety-conscious environments. Whether you're upgrading an existing door or installing a new exit solution, the Falcon Lock EA-F25R-DT-US26D-36 KIT delivers both functionality and peace of mind.

KIT - Exit Alarm, Fire Rated Rim Exit Device, Dummy Pull Trim 512DT, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also Features a single-point, rim type latch and can be electrified. The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL: "B" label (1-1⁄2 hr.); 4’ 0" x 8’ 0".
• Functions: F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See chart below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (# 10-24) SNB and 2 - 325 (1⁄4" -20) SNB. For devices with trim, specify 4 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK24-R.
• Exit alarm: The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements).

Stock Sizes:

Single Door Application:

Double Door Application:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625- Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
