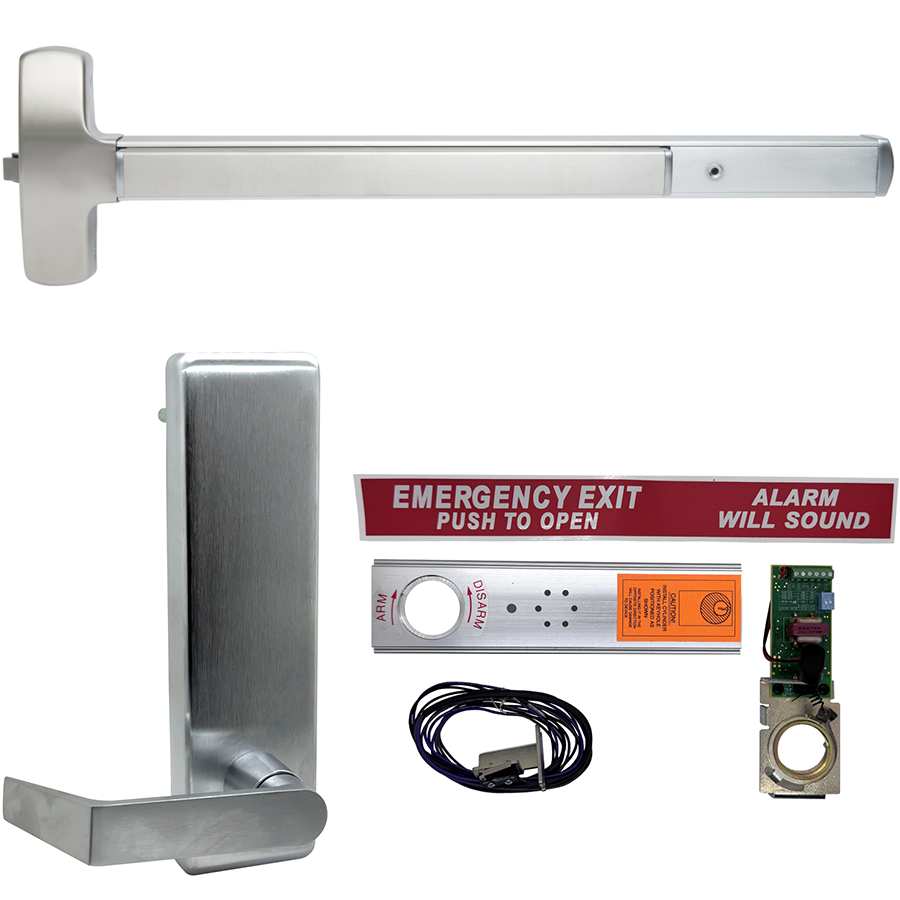

Falcon Lock EA-F25R-L-BE-DAN-US26D-36-LHR Exit Alarm Fire Rated Rim Exit Device, Dane Lever Trim 510L-BE, 36in, LHR, Satin Chrome

Falcon Lock EA-F25R-L-BE-DAN-US26D-36-LHR KIT combines advanced security with a sleek, fire-rated design, making it an ideal choice for both commercial and residential applications. This Exit Alarm is built to last, featuring a durable extruded aluminum construction that provides enhanced strength and impact resistance. With its narrow stile design, it offers versatility for installation on various door types, including single and double doors. The unit includes a battery-powered exit alarm that activates when the touchbar is pressed, ensuring effective monitoring of exits while adhering to egress regulations. The alarm can be reset using a standard mortise cylinder. Designed for ease of use, the device operates with a 9V battery that lasts up to six months in standby mode. This Grade 1 exit device is equipped with a stainless steel push pad cover, ensuring a scratch-resistant surface, while its flush-end caps enhance durability in high-traffic areas. The non-handed design and single trim input offer maximum versatility, accommodating various trims for customized aesthetics. Certified to ANSI A156.3 standards and UL listed for a 90-minute fire rating, the Falcon Lock EA-F25R is a robust solution for any exit door requirement, combining safety, functionality, and style.

KIT - Exit Alarm, Fire Rated SVR Surface Vertical Rod Exit Device, Escutcheon x Quantum Lever Trim 510L, 36in x 96in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also Features a single-point, rim type latch and can be electrified. The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL: "B" label (1-1⁄2 hr.); 4’ 0" x 8’ 0".
• Functions: F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See chart below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (# 10-24) SNB and 2 - 325 (1⁄4" -20) SNB. For devices with trim, specify 4 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK24-R.
• Exit alarm: The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements).

Stock Sizes:

Single Door Application:

Double Door Application:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625- Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
