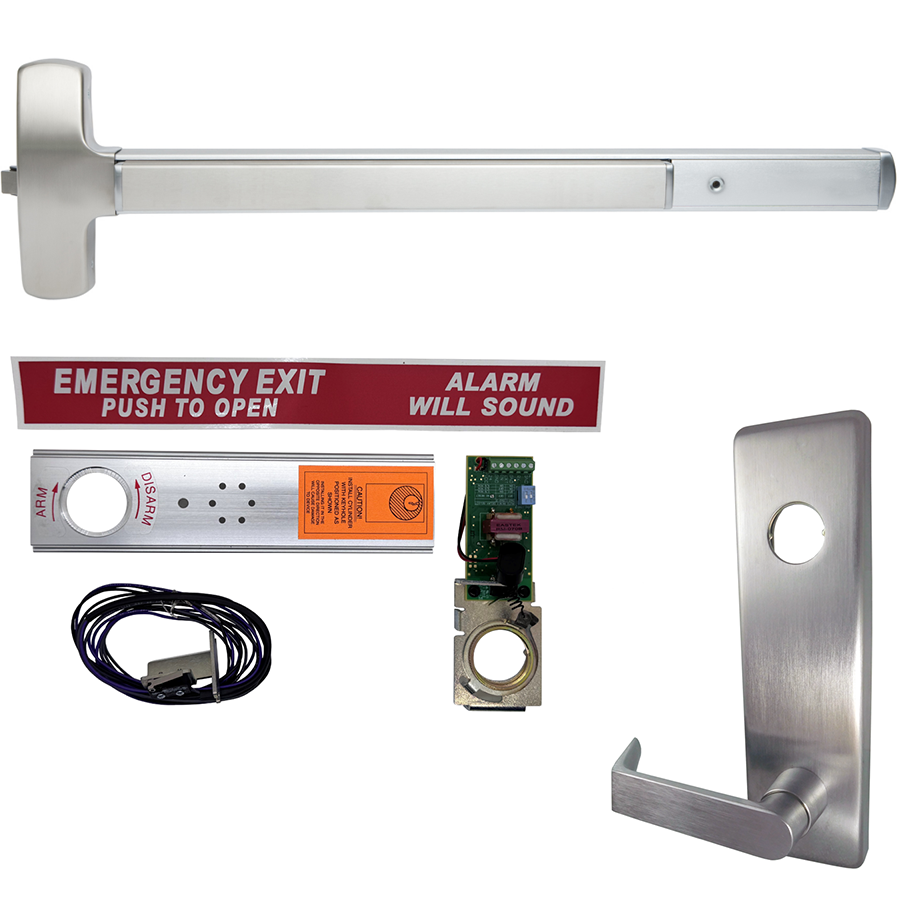

Falcon Lock EA-F25R-L-DAN-US26D-36-LHR KIT - Fire Rated Rim Exit Device, Dane Lever Trim 510L, 36in, Satin Chrome

Falcon Lock EA-F25R-L-DAN-US26D-36-LHR KIT is a robust exit alarm and fire-rated rim exit device designed for both safety and convenience. This Grade 1 device features an elegant satin chrome finish that enhances any commercial environment while ensuring compliance with fire safety standards. Its narrow stile design allows for versatile installation on 1-3/4" thick wood or metal doors. The EA feature provides a battery-powered exit alarm, ensuring that unauthorized use of exits is easily monitored without compromising egress requirements. When the touchbar is activated, a continuous alarm sounds, which can only be reset with a standard mortise cylinder. The single 9V battery is engineered to last for at least six months on standby. Constructed from extruded aluminum, the EA-F25R-L boasts impressive strength and impact resistance. The stainless steel push pad cover offers a scratch-resistant surface, while the flush-end caps prevent damage in high-traffic areas. This device is UL listed with a "B" label for 90 minutes of fire protection, making it ideal for emergency exits in various commercial applications. With the ability to interface with building security systems and an included Dane lever trim, the Falcon Lock EA-F25R-L-DAN-US26D-36-LHR KIT is a reliable choice for enhancing security and safety in any facility.

KIT - Exit Alarm, Fire Rated Rim Exit Device, Escutcheon x Dane Lever Trim 510L, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also Features a single-point, rim type latch and can be electrified. The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL: "B" label (1-1⁄2 hr.); 4’ 0" x 8’ 0".
• Functions: F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See chart below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (# 10-24) SNB and 2 - 325 (1⁄4" -20) SNB. For devices with trim, specify 4 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK24-R.
• Exit alarm: The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements).

Stock Sizes:

Single Door Application:

Double Door Application:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625- Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
