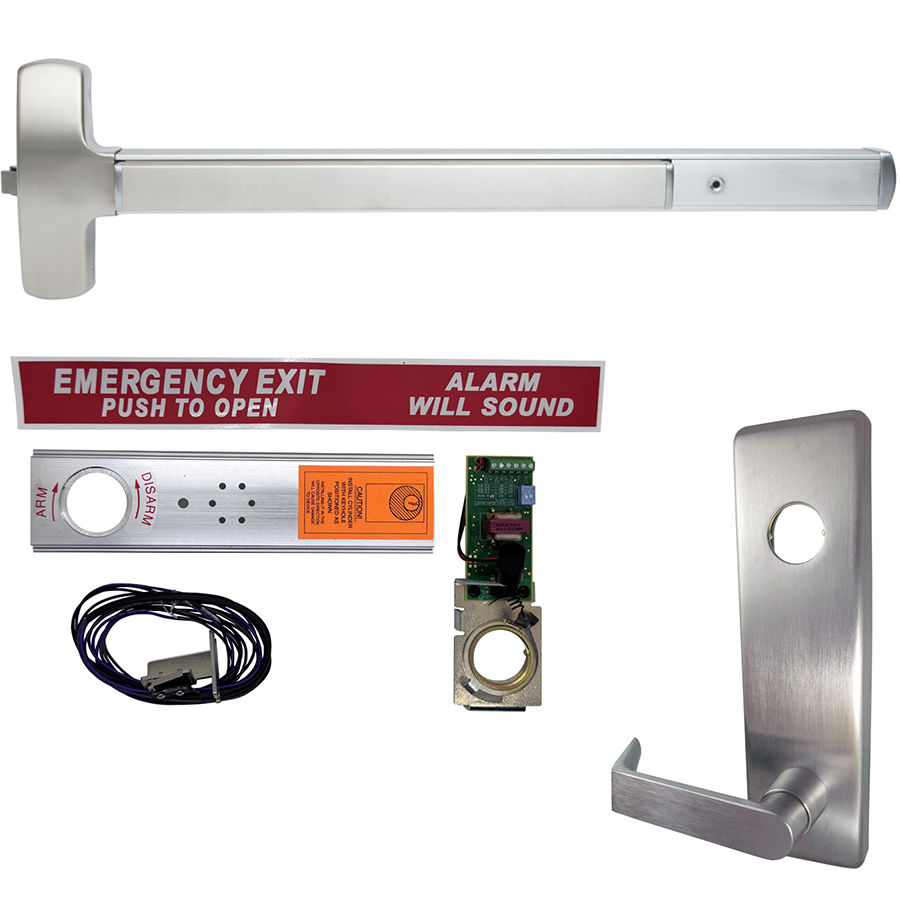

Falcon Lock EA-F25R-L-NL-DAN-US26D-36-LHR Exit Alarm Fire Rated Rim Device, Dane Lever Nightlatch Trim 510L-NL, Satin Chrome

Falcon Lock EA-F25R-L-NL-DAN-US26D-36-LHR KIT is an advanced exit alarm and fire-rated rim exit device designed for both security and safety. This device features a sleek, narrow stile construction that allows for versatile installation, making it suitable for various door applications. Its Grade 1 certification ensures exceptional durability and impact resistance, ideal for high-traffic environments. Equipped with a single-point rim latch and the innovative exit alarm (EA) feature, this device provides a battery-powered alarm that activates when the touchbar is engaged, ensuring effective monitoring of exits while complying with egress codes. The alarm can be easily reset using a standard mortise cylinder. The unit is designed for a long lifespan with a single 9V battery lasting up to six months in standby mode. The Falcon Lock EA-F25R is non-handed, accommodating both left and right-handed doors, and includes a stainless steel push pad cover that resists scratches. It features concealed mounting screws for a clean installation and a robust 3/4" stainless steel latchbolt. Additionally, it is compatible with a range of trims, including the stylish Dane lever nightlatch trim. With a fire rating of 90 minutes and compliance with ANSI and UL standards, this exit device is a reliable choice for enhancing your building’s security.

KIT - Exit Alarm, Fire Rated Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in, Less Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

The F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also Features a single-point, rim type latch and can be electrified. The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL: "B" label (1-1⁄2 hr.); 4’ 0" x 8’ 0".
• Functions: F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See chart below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (# 10-24) SNB and 2 - 325 (1⁄4" -20) SNB. For devices with trim, specify 4 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK24-R.
• Exit alarm: The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements).

Stock Sizes:

Single Door Application:

Double Door Application:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625- Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
