Falcon Lock EA-F25R-NL-US26D-36 KIT - Fire Rated Rim Exit Device, Nightlatch Pull Trim 512NL, 36in, Satin Chrome

Falcon Lock EA-F25R-NL-US26D-36 KIT - Exit Alarm, Fire Rated Rim Exit Device combines modern design with robust functionality. This exit device is engineered for superior performance, featuring a fire-rated design that ensures safety in emergencies while meeting stringent code requirements. The sleek, narrow stile construction offers versatility in installation, making it suitable for both single and double door applications. Equipped with a single-point rim latch, this device incorporates an innovative exit alarm feature that activates when the touchbar is pressed, providing a continuous sound to alert unauthorized use. The exit alarm system is powered by a standard 9V battery, which can last up to six months on standby. With no exposed screws or rivets, the streamlined design enhances the aesthetic appeal of any entryway. The EA-F25R-NL is non-handed, allowing for easy installation on wood or metal doors up to 1-3/4 inches thick. Its stainless steel components, including a 3/4-inch throw latchbolt, ensure durability and reliability. Certified to ANSI A156.3 grade 1 standards, this exit device is built to withstand heavy use while providing the highest level of security in panic situations. Choose Falcon Lock for a reliable solution that prioritizes both safety and style.

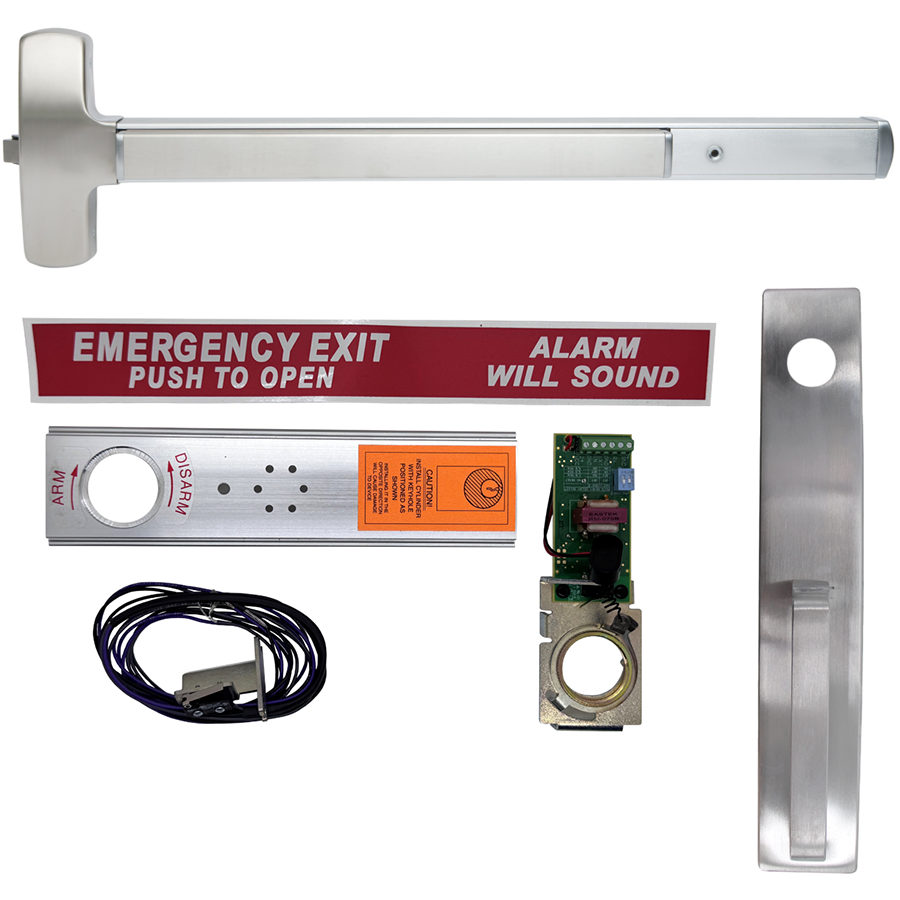

KIT - Exit Alarm, Fire Rated Rim Exit Device, Nightlatch Pull Trim 512NL, 36in, Less Dogging, Grade 1, 626/US26D Satin Chrome

The F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also Features a single-point, rim type latch and can be electrified. The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4" mortise cylinder with standard "A" cam (5⁄16" wide x 3⁄4" long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL: "B" label (1-1⁄2 hr.); 4’ 0" x 8’ 0".
• Functions: F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See chart below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (# 10-24) SNB and 2 - 325 (1⁄4" -20) SNB. For devices with trim, specify 4 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK24-R.
• Exit alarm: The Exit alarm (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements).

Stock Sizes:

Single Door Application:

Double Door Application:

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625- Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
