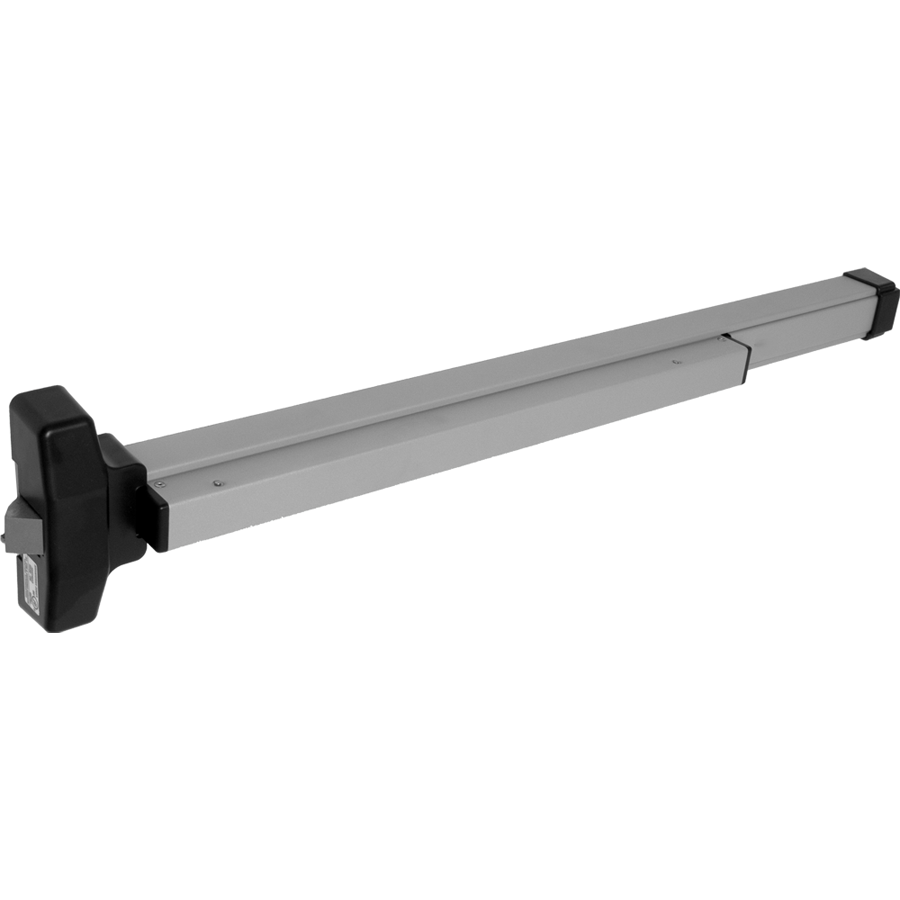

Falcon Lock F19R-EO-SP28-36 Narrow Stile Fire Rated Rim Exit Device, 36in, F570 Strike, Grade 1, No Dogging

Falcon Lock F19R-EO-SP28-36 Narrow Stile Fire Rated Rim Exit Device is a reliable solution designed for high-traffic areas requiring swift egress. This exit-only device is UL-listed for B label fire door installations, accommodating both 4'0" x 7'2" single doors and 8'0" x 7'2" double doors when paired with an F-4023 removable mullion or KRF-4023. Engineered for durability, the F19R features a non-handed design, making it versatile for various door applications. Its robust stainless steel latchbolt boasts a 3/4" throw, ensuring secure closure and reliable operation. The device meets ANSI A156.3-2001 grade 1 standards, underscoring its quality and performance. Installation is straightforward, with stock sizes available for doors ranging from 2'5" to 4' in width. The device is compatible with 1 3/4" thick wood or metal doors, allowing for customization based on specific needs. The sleek sprayed aluminum finish (SP28) enhances the aesthetics while providing corrosion resistance. With an effective deadlocking latchbolt and a projection of 2 1/2" in neutral position, the Falcon Lock F19R-EO-SP28-36 is an optimal choice for enhancing safety and compliance in commercial and residential settings. This exit device combines functionality with a commitment to fire safety, making it an indispensable addition to your security solutions.

Narrow Stile Fire Rated Rim Exit Device, Exit Only, 36in, F570 Strike, No Dogging, Grade 1, 628/SP28 Anodized Aluminum

The F–19 Rim fire exit device is an excellent addition to the touchbar. This device is non-handed and is listed by UL for B label fire door installations on 4'0" x 7'2" single doors and/or 8'0" x 7'2" double doors with an F–4023 removable mullion or KRF-4023.

Specifications:

• Hand: Non-Handed.
• Functions: All functions built into "EO" (exit only) device. For K , L, DT, NL, PULL.
• Strikes: Stainless steel, F570 or F490.
• Latchbolt: Stainless steel, 3/4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: 3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.
• Doors: 1 3⁄4" thick wood or metal. Specify thickness if other than 1 3⁄4". (SNB must be specific on wood or composite doors.)
• Projection: 2 1⁄2" in neutral position, 1 7⁄8" in depressed position. Push bar height is 1 3⁄4".
• Sex bolts: When used with wood, composite or non-reinforced hollow metal, sex bolts must be specific, 3-#4122 (1⁄4"-20)SNB standard. An additional 2-#2729 (10-24) SNB must be specified.
• Shim kit: For glass lite applications; 1⁄4" thick specify SK 19-R-1⁄4".
• 161 Cutout: Device covers 161 cutout with KIL and Centron trims. Other trim requires cover plate.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.

Finishes: Center case and End cap are Black plastic only.

• SP28
• SP313
• US32D

Features

• Sex bolts: When used with wood, composite or non-reinforced hollow metal, sex bolts must be specific, 3-#4122 (1⁄4"-20)SNB standard. An additional 2-#2729 (10-24) SNB must be specified.
• Shim kit: For glass lite applications; 1⁄4" thick specify SK 19-R-1⁄4".
• Stock sizes: 3' for doors from 2'5" up to 3'. 4' for doors from 3' up to 4'.
• 161 Cutout: Device covers 161 cutout with KIL and Centron trims. Other trim requires cover plate.
• Doors: 1 3⁄4" thick wood or metal. Specify thickness if other than 1 3⁄4". (SNB must be specific on wood or composite doors.)
• Projection: 2 1⁄2" in neutral position, 1 7⁄8" in depressed position. Push bar height is 1 3⁄4".
• Hand: Non-Handed.
• Deadlocking latchbolt: Standard.
• Functions: All functions built into "EO" (exit only) device. For K , L, DT, NL, PULL.
• Latchbolt: Stainless steel, 3/4" throw.
• Strikes: Stainless steel, F570 or F490.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
