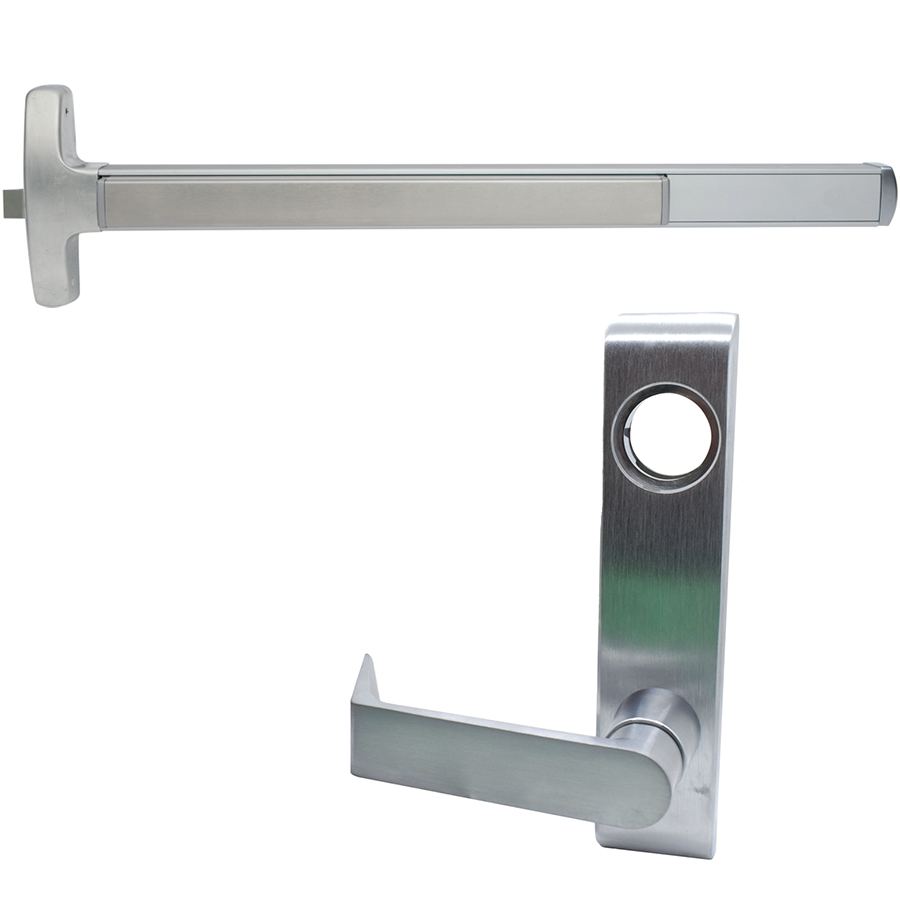

Falcon Lock F24R-L-DAN-US26D-48-LHR Fire Rated Narrow Stile Rim Exit Device, Dane Lever Trim 712L, Satin Chrome

Falcon Lock F24R-L-DAN-US26D-48-LHR KIT offers a robust solution for fire-rated exit needs. This Fire Rated Narrow Stile Rim Exit Device seamlessly combines modern aesthetics with high durability, making it perfect for various applications. Its narrow stile design provides flexible installation options, while the single-point, rim-type latch ensures reliable operation. Constructed from extruded aluminum, this device boasts impressive strength and impact resistance, making it ideal for both single and double door applications. The device features a streamlined design without exposed screws or rivets, enhancing its visual appeal. The stainless steel push pad cover is scratch-resistant, ensuring longevity even in high-traffic areas. Certified to Grade 1 standards, the Falcon Lock F24R is UL-listed for up to 1.5 hours, providing peace of mind during emergencies. It accommodates doors up to 1-3/4" thick and can interface with building security systems for added functionality. The device is also designed for easy electrification, supporting features like motorized latch retraction and exit alarms. With a satin chrome finish, this exit device not only meets safety standards but also enhances the aesthetic of your premises. Choose Falcon Lock F24R-L-DAN-US26D-48-LHR for a secure, stylish, and reliable exit solution.

KIT - Fire Rated Narrow Stile Rim Exit Device, Escutcheon x Dane Lever Trim 712L, 48in, Less Dogging, LHR Left Hand Reverse/Reversible Handing, 299F Strike, UL, Grade 1, 626/US26D Satin Chrome

The F-24-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also Features a single-point, rim type latch and can be electrified.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL: "B" label (1-1⁄2 hr.); 4’ 0" x 8’ 0"
• Functions: F-24-REO (Exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking latchbolt: Standard.
• Stock sizes: See chart below.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4"
• Projections: 2-3⁄4" maximum.
• Mounting height: 40" from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 - 425 (# 10-24) SNB and 2 - 325 (1⁄4" -20) SNB. For devices with trim, specify 4 - 425 (# 10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK24-R.

Stock Sizes:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-24-R	3’	299-F	3-1⁄2"	2’ 7-1⁄2"
F-24-R	4’	299-F	3-1⁄2"	3’ 1-1⁄2"

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-24-R	3’	299-F x F-4023	4"	2’ 7-1⁄2"
F-24-R	4’	299-F x F-4023	4"	3’ 1-1⁄2"

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 -Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
