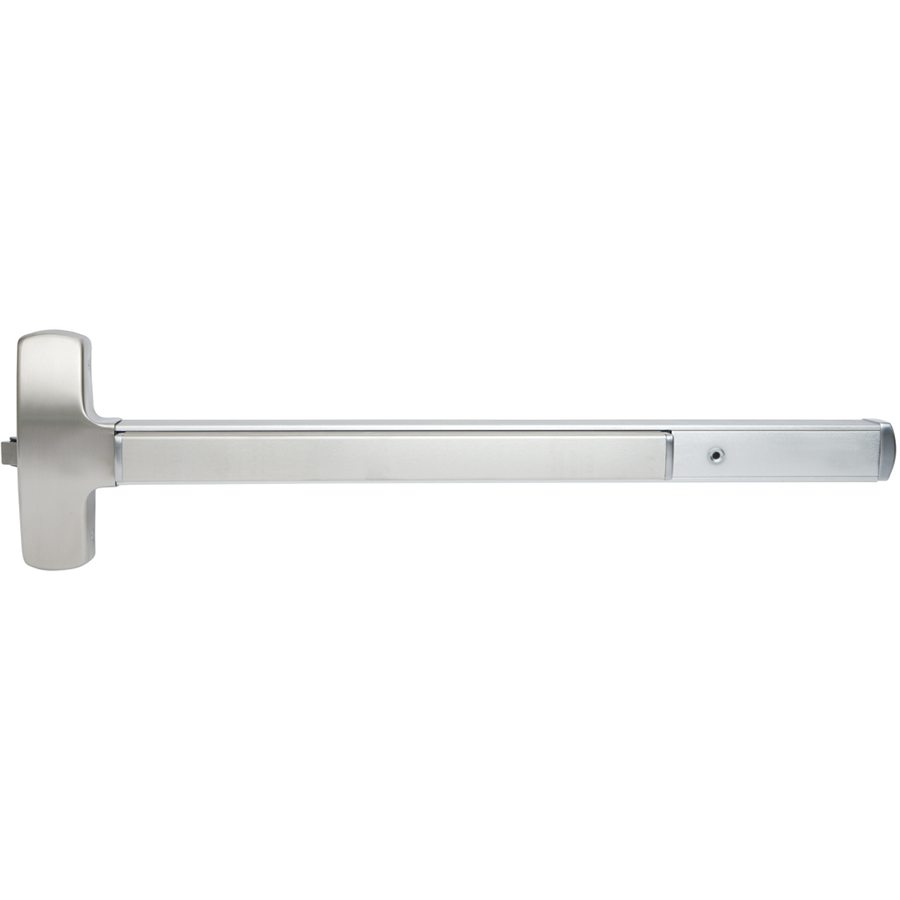

Falcon Lock F25R-EO-US26D-36 Fire Rated Rim Exit Device, 36in, Less Dogging, Grade 1, Satin Chrome

Falcon Lock F25R-EO-US26D-36 Fire Rated Rim Exit Device offers a perfect blend of reliability and modern design, making it an ideal choice for high-traffic areas. This exit-only device measures 36 inches and is crafted from extruded aluminum, ensuring exceptional strength and impact resistance. The streamlined design features no exposed screws or rivets, lending a clean aesthetic to any installation. Engineered for safety, the F25R is UL listed for fire ratings up to 90 minutes, accommodating both "A" label and "B" label applications. With a stainless steel latchbolt that boasts a ¾ inch throw, combined with deadlocking capabilities, this exit device guarantees secure access. The stainless steel push pad cover provides a scratch-resistant surface, ensuring longevity in busy environments. The device is non-handed and can be easily electrified to integrate with existing building security systems, offering additional features such as motorized electric latch retraction and security monitoring. Designed for adaptability, it fits doors that are 1-3/4 inches thick and features concealed fasteners for enhanced security. With its Grade 1 certification and durable finishes, including a satin chrome option, the Falcon Lock F25R-EO is a reliable choice for any commercial or residential setting requiring robust exit solutions.

Fire Rated Rim Exit Device, Exit Only, 36in, Less Dogging, 299F Strike UL, Grade 1, 626/US26D Satin Chrome

The F-25-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. The F-25-R also Features a single-point, rim type latch and can be electrified.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL:
• "A" label (3 hr.); 4’ 0" x 8’ 0" 8’ 0" x 8’ 0" with F-4023 mullion.
• "B" label (1-1⁄2 hr.); 8’ 0" x 8’ 0" with KRF4023.
• Strikes: 299F strike standard. 499F standard for pairs with mullion.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Required for use in EO applications when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB. For devices with trim, specify 2 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-25-R	3’	299-F	4"	2’ 7-1/2"
F-25-R	4’	299-F	4"	3’ 1-1/2"

• Double Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-25-R	3’	499-F x F-4023	4-1/2"	2’ 7-5/8"
F-25-R	4’	499-F x F-4023	4-1/2"	3’ 1-5/8"

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
