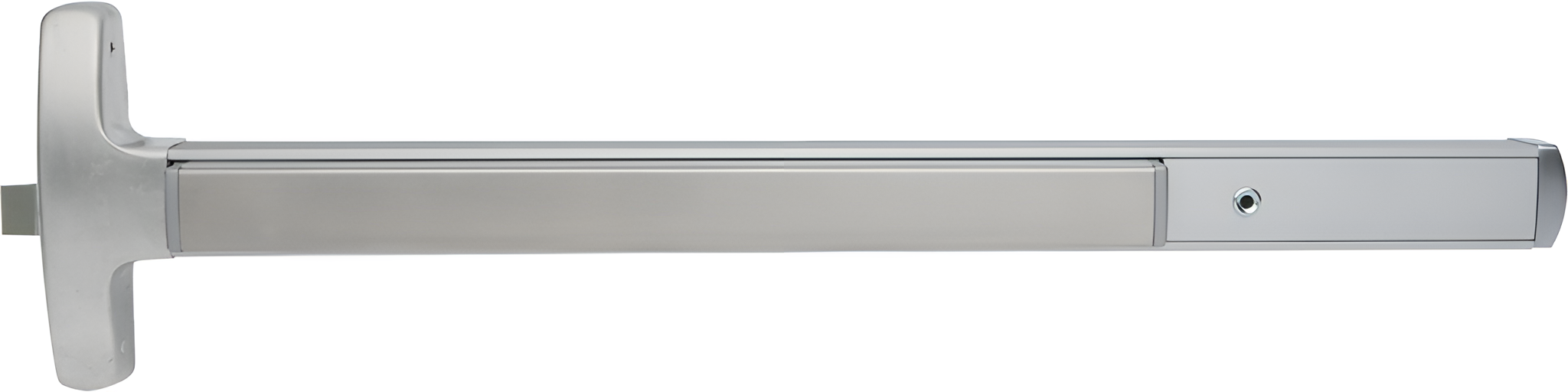

Falcon Lock F25R-EO-US26D-48 Fire Rated Rim Exit Device, 48in, Less Dogging, 299F Strike, Satin Chrome

Falcon Lock F25R-EO-US26D-48 Fire Rated Rim Exit Device is the ideal solution for ensuring safety and security in commercial applications. This exit-only device boasts a sleek design coupled with robust durability, making it suitable for high-traffic environments. Constructed from extruded aluminum, it offers exceptional strength and impact resistance, while the flush-end caps minimize damage from accidental impacts. This device features a non-handed installation with a single-point rim latch and is compatible with various trims, providing maximum versatility. The stainless steel push pad cover ensures a scratch-resistant surface, enhancing its longevity. With a fire rating of 90 minutes (UL "B" label), it also meets the stringent ANSI A156.3-2001 grade 1 standards, ensuring you have a reliable solution for fire safety. Designed for standard door thicknesses of 1-3/4 inches, the F25R-EO can accommodate both wood and metal doors. The concealed fasteners contribute to a streamlined aesthetic, and the device can be electrified for integration with building security systems. With a mounting height of 40-1/4 inches, this exit device is both practical and compliant with safety regulations, making it an essential addition to any commercial setting.

Fire Rated Rim Exit Device, Exit Only, 48in, Less Dogging, 299F Strike UL, Grade 1, 626/US26D Satin Chrome

The F-25-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. The F-25-R also Features a single-point, rim type latch and can be electrified.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL:
• "A" label (3 hr.); 4’ 0" x 8’ 0" 8’ 0" x 8’ 0" with F-4023 mullion.
• "B" label (1-1⁄2 hr.); 8’ 0" x 8’ 0" with KRF4023.
• Strikes: 299F strike standard. 499F standard for pairs with mullion.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Required for use in EO applications when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 8 - 425 (#10-24) SNB. For devices with trim, specify 2 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-25-R	3’	299-F	4"	2’ 7-1/2"
F-25-R	4’	299-F	4"	3’ 1-1/2"

• Double Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-25-R	3’	499-F x F-4023	4-1/2"	2’ 7-5/8"
F-25-R	4’	499-F x F-4023	4-1/2"	3’ 1-5/8"

Finishes:

• US3/605 - Bright Brass
• US4/606 - Satin Brass
• US10/612 - Satin Bronze
• US11/643e - Aged Bronze
• US15/619 - Satin Nickel
• US19/622 - Matte Black
• US26/625- Bright Chrome
• US26D/626 - Satin Chrome
• US28/628 - Anodized Aluminum
• US32/629 - Bright Stainless Steel
• US32D/630 - Satin Stainless Steel
• 313AN/710 - Anodized Duranodic
