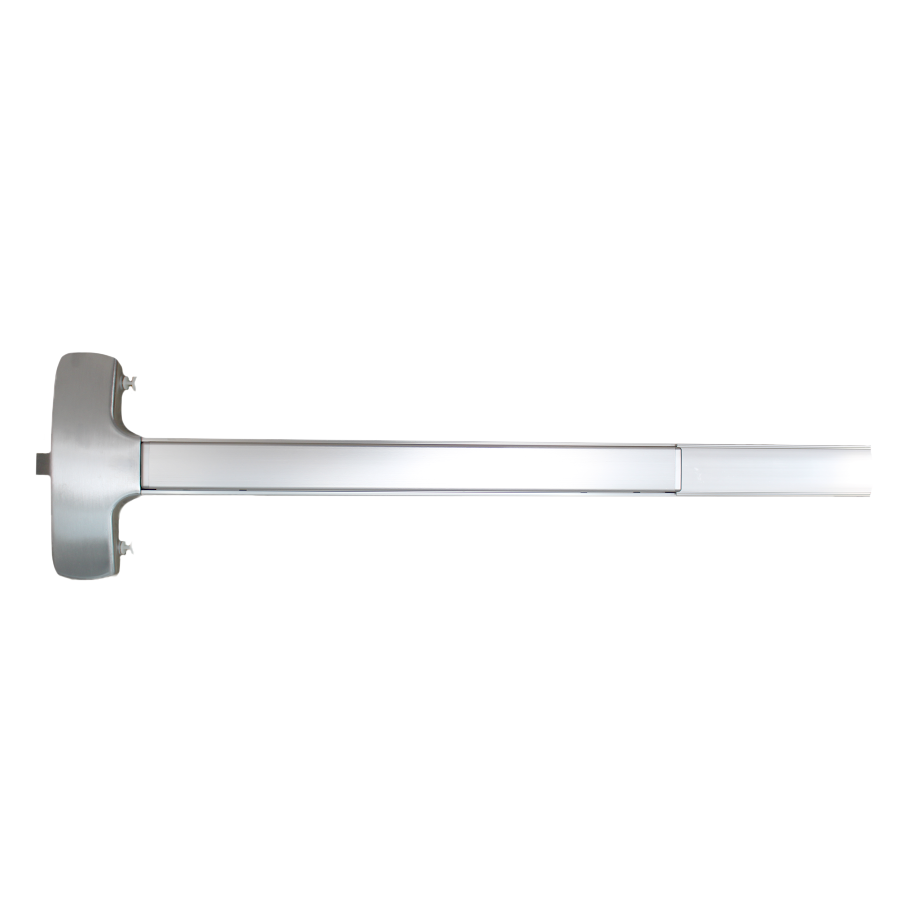

Falcon Lock LD-25R-EO-US26D-36 Rim Exit Device, 36in, Less Dogging, Non-Handed, Grade 1, Satin Chrome

Falcon Lock LD-25R-EO-US26D-36 Rim Exit Device offers a reliable solution for high-traffic environments, featuring a robust, single-point rim latch and a sleek touch bar design. Built to withstand the rigors of daily use, this exit device is ideal for both commercial and residential applications, ensuring quick egress when needed. Constructed from extruded aluminum, the LD-25R is engineered for enhanced strength and impact resistance. The device's design eliminates exposed screws or rivets, resulting in a clean, streamlined appearance that complements any door style. Its non-handed feature provides versatility to fit various door configurations, while the stainless steel push pad cover adds a scratch-resistant surface for durability. The device includes a standard deadlocking latchbolt with a ¾" throw for added security, and half turn hex dogging that eliminates wear-prone threaded parts. It accommodates 1-3/4" thick wood or metal doors, making it a versatile choice for different installations. The LD-25R also allows for electrification, enabling integration with building security systems. Certified to ANSI A156.3 Grade 1 standards, this exit device combines functionality with style, making it a dependable choice for any exit application. Available in satin chrome, the Falcon Lock LD-25R ensures safety without compromising aesthetic appeal.

Rim Exit Device, Exit Only, 36in, Less Dogging, Non-Handed, Grade 1, 626/US26D Satin Chrome

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application

Device	Door Size	Door Strike	Door Stile (in)	Min Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application

Device	Door Size	Strike x Mullion	Door Stile (in)	Min Door Opening Width
25-R	3’	299 x 2923	4 1⁄8"	2' 7 1⁄2"
25-R	3’	299 x 4023	4 3⁄8"	2' 7 1⁄2"
25-R	3’	264 x 2923	4"	2' 7 3⁄8"
25-R	3’	264 x 4023	4 1⁄4"	2' 7 3⁄8"
25-R	3’	1439 x 2923	3 7⁄8"	2' 7 1⁄4"
25-R	3’	1439 x 4023	4 1⁄8"	2' 7 1⁄4"
25-R	3’	1606 x 2923	4 1⁄4"	2' 7 1⁄8"
25-R	3’	1606 x 4023	4 1⁄2 "	2' 7 1⁄8"
25-R	4’	299 x 2923	4 1⁄8"	3' 1 1⁄2"
25-R	4’	299 x 4023	4 3⁄8"	3' 1 1⁄2"
25-R	4’	264 x 2923	4"	3' 1 3⁄8"
25-R	4’	264 x 4023	4 1⁄4"	3' 1 3⁄8"
25-R	4’	1439 x 2923	3 7⁄8"	3' 1 1⁄4"
25-R	4’	1439 x 4023	4 1⁄8"	3' 1 1⁄4"
25-R	4’	1606 x 2923	4 1⁄4"	3' 1 1⁄8"
25-R	4’	1606 x 4023	4 1⁄2 "	3' 1 1⁄8"
25-Vx 25-R	3’	1609	3 1⁄2"	2' 7 5⁄8" for 3 1⁄2" Min stile
25-Vx 25-R	4’	1609	3 1⁄2"	3’ 1 5⁄8" for 3 1⁄2" Min stile

Finishes:

• US3/605 - Brass, Bright
• US4/606 - Brass, Satin
• US10/612 - Bronze, Satin
• US11/643e - Bronze, Aged
• US15/619 - Nickel, Satin
• US19/622 - Black, Matte
• US26/625 - Chromium, Bright
• US26D/626 - Chromium, Satin
• US28/628 - Anodized, Aluminum
• US32/629 - Stainless Steel, Bright
• US32D/630 - Stainless Steel, Satin
• 313AN/710 - Anodized Duranodic
