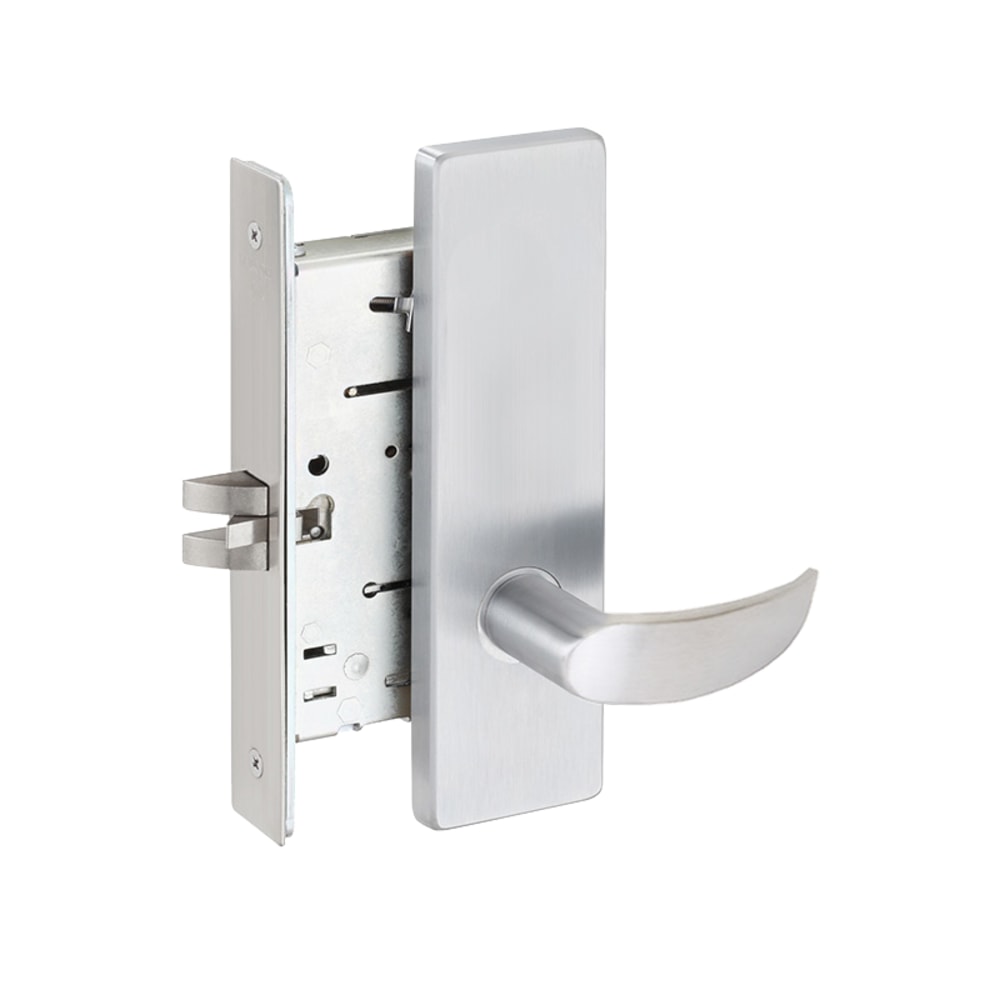

Falcon Lock MA101 AN 626 Passage Mortise Lock

Falcon Lock MA101 AN 626 Passage Mortise Lock offers robust security and high performance, making it an ideal choice for commercial environments such as offices, hospitals, and educational institutions. This Grade 1 passage lock features the elegant Avalon lever and Napa escutcheon, all finished in a sophisticated satin chrome that complements any decor. Designed to withstand heavy use, the MA Series lock is built from cold-formed steel with a zinc dichromate plating, ensuring durability and longevity. The interchangeable core simplifies re-keying and is compatible with SFIC products from other manufacturers. With a standard door thickness accommodation of 1-3/8" to 2-1/2" and a 2-3/4" backset, this lock is versatile for various applications. The lock's two-piece stainless steel latch bolt and 1" throw deadbolt provide enhanced security, while the bind-resistant trim ensures proper alignment and strength. The MA101 comes with solid brass cylinders available in various pin configurations and is furnished with two nickel silver keys. Meeting ANSI/BHMA 156.13 standards and UL listed for 3-hour A label fire ratings, the Falcon MA101 Lock is a reliable choice for any commercial project, ensuring safety without sacrificing style.

Passage Mortise Lock

Grade 1 Passage Mortise Lock, Avalon Lever, Napa Escutcheon, Satin Chrome Finish

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.
