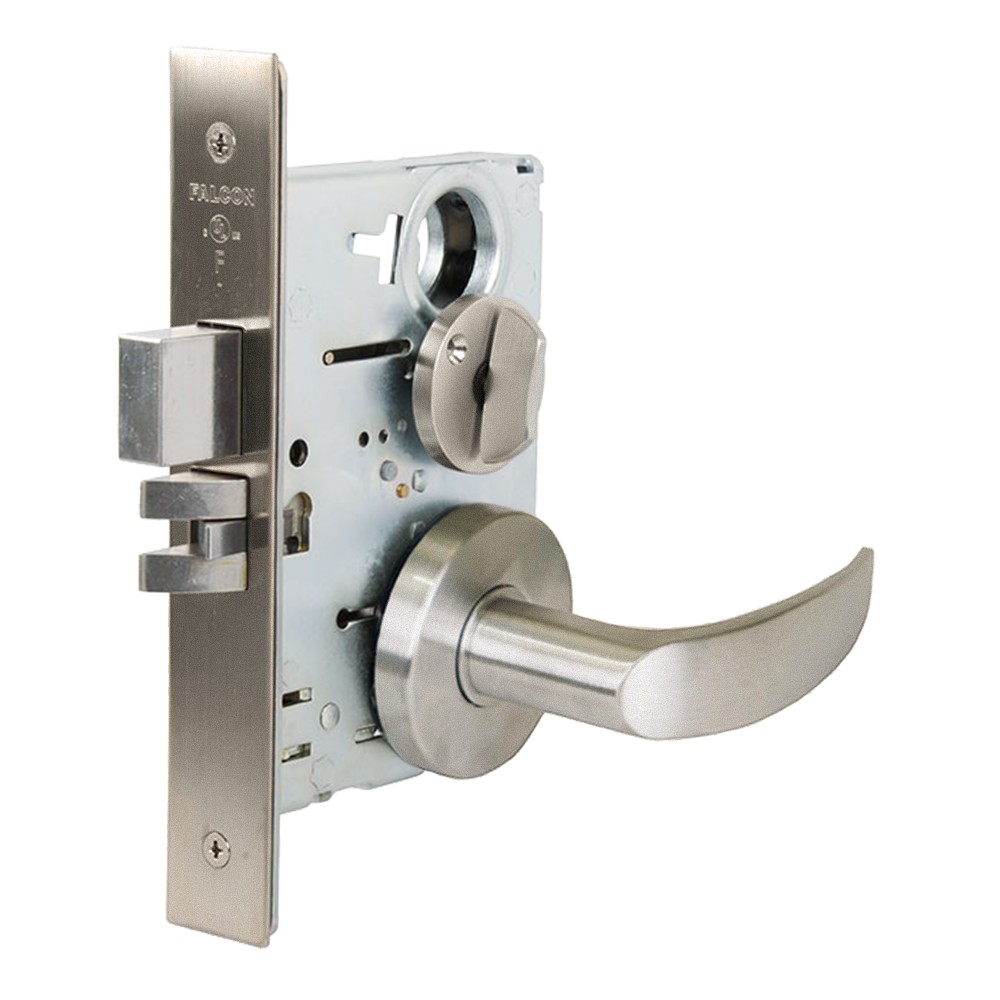

Falcon Lock MA301 AG 630 Privacy Bedroom Mortise Lock

Falcon MA301 AG 630 Privacy - Bedroom Mortise Lock offers unparalleled security and durability, making it an ideal choice for commercial environments such as offices, hospitals, and educational institutions. This Grade 1 privacy mortise lock features a non-keyed design, complemented by the elegant Avalon lever and Gala rose escutcheon, finished in satin stainless steel for a sleek, modern look. Designed to withstand constant use, the MA Series lock is built from cold-formed steel with a zinc dichromate plating, ensuring long-lasting performance. Its field-reversible handing allows for easy installation, accommodating standard door thicknesses from 1-3/8" to 2-1/2". The lock includes a solid brass cylinder and plug, offering options for 5, 6, or 7-pin configurations. With a robust two-piece stainless steel latch bolt and a 1" throw deadbolt featuring saw-resistant rollers, security is paramount. The MA301 meets ANSI/BHMA 156.13 standards and is UL listed for a 3-hour fire rating, reinforcing its reliability in critical situations. Whether updating existing hardware or outfitting new construction, the Falcon MA301 lock delivers the quality and performance expected from one of the industry's leading names, Allegion.

Privacy - Bedroom Mortise Lock

Grade 1 Privacy Mortise Lock, Non-Keyed, Avalon Lever, Gala Rose, Satin Stainless Steel Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.
