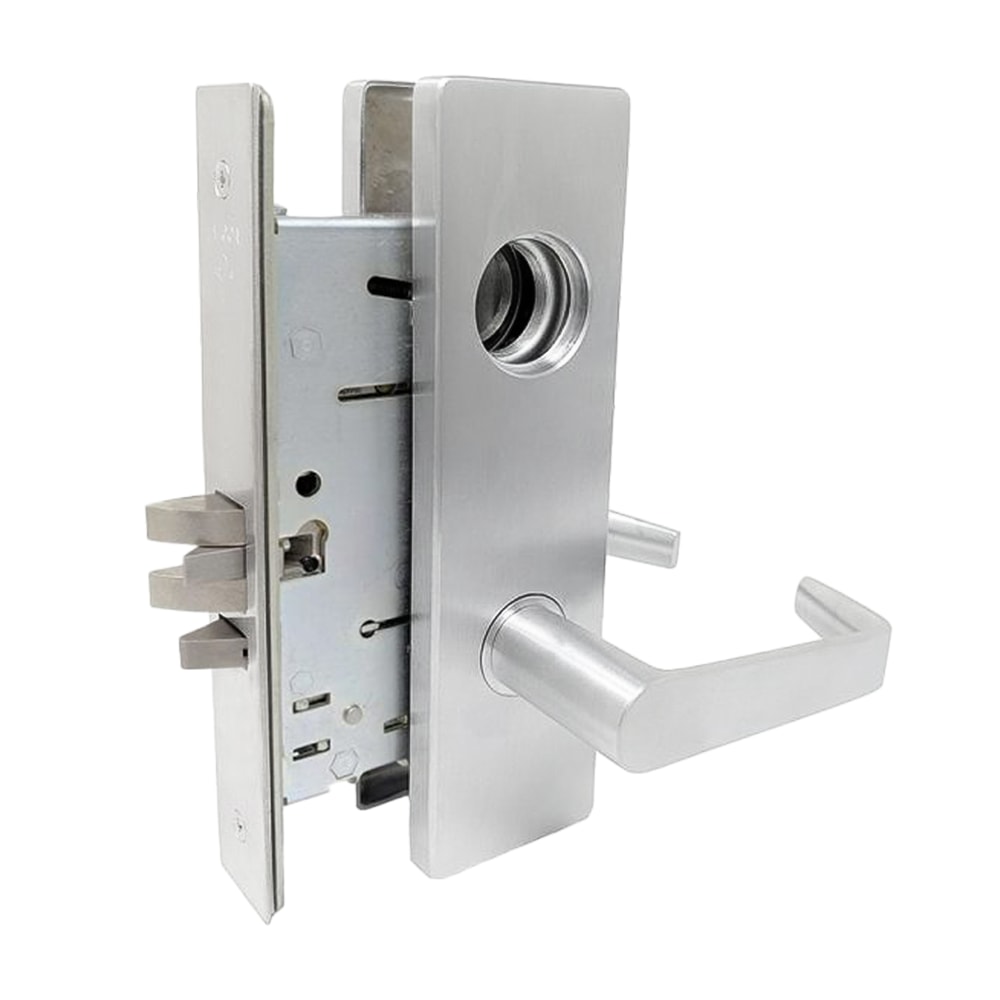

Falcon Lock MA441L DN 626 Classroom Security Mortise Lock

Falcon MA441L DN 626 Classroom Security Mortise Lock combines robust security features with user-friendly functionality, making it an ideal choice for schools, hospitals, and commercial buildings. Designed as a Grade 1 security lock, this model is built to withstand heavy use while ensuring reliable performance. The MA441L features a sleek satin chrome finish and a Dane lever design that not only enhances aesthetic appeal but also facilitates ease of use. With a standard door thickness accommodation of 1-3/8" to 2-1/2", it offers versatility for various installations. The lock's case is constructed from cold-formed steel, zinc dichromate plated for added durability, while the two-piece stainless steel latch bolt provides a reliable locking mechanism with a 3/4" projection. Field-reversible handing allows for easy installation and adaptation, while the interchangeable core simplifies re-keying. The lock meets ANSI/BHMA 156.13 standards, ensuring it adheres to high safety protocols. Additionally, it is UL listed with a 3-hour fire rating, making it a dependable choice for safety-conscious environments. With its combination of high-grade materials, exceptional performance, and aesthetic design, the Falcon MA441L DN 626 Classroom Security Mortise Lock is an excellent investment for any commercial application.

Classroom Security Mortise Loc

Grade 1 Classroom Security Mortise Lock, Less Conventional Cylinder, Dane Lever, Napa Escutcheon, Satin Chrome Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.
