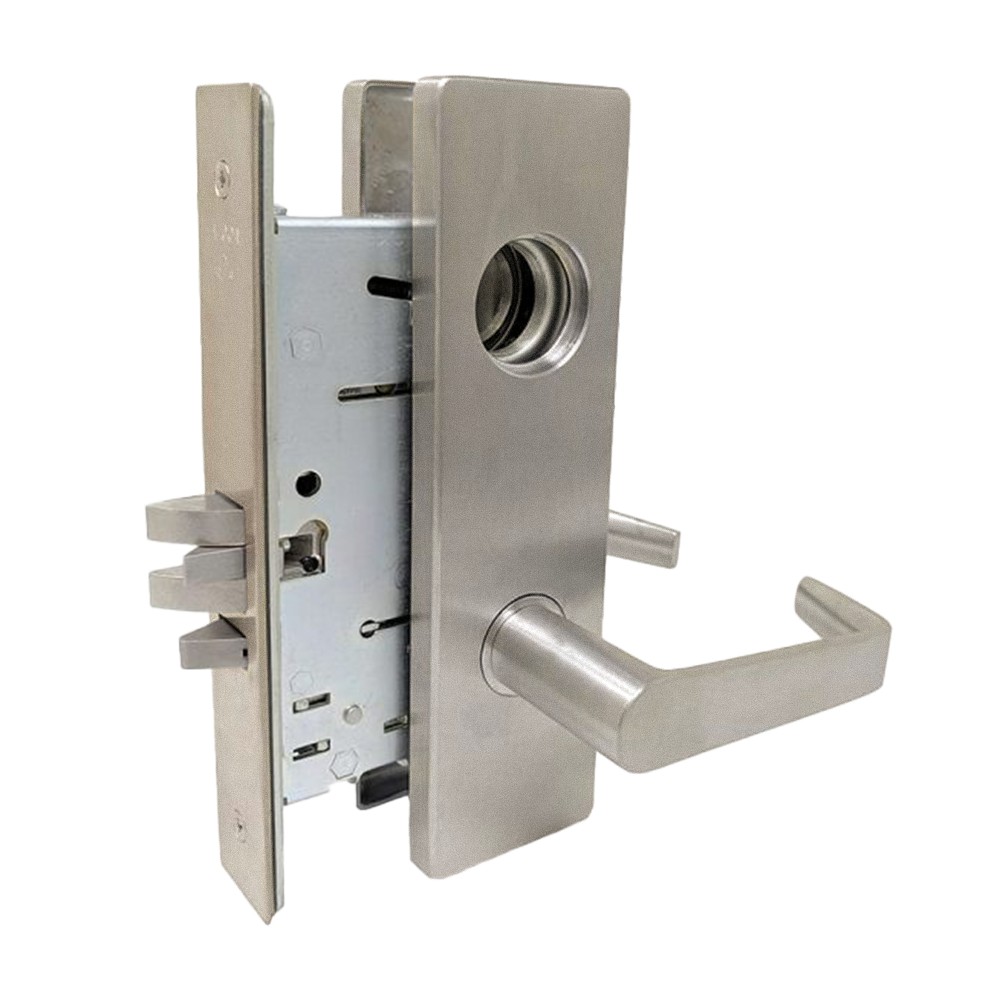

Falcon Lock MA441L DN 630 Classroom Security Mortise Lock

Falcon Lock MA441L DN 630 Classroom Security Mortise Lock combines robust security features with exceptional durability, making it an ideal choice for commercial applications such as offices, hospitals, and educational institutions. This Grade 1 lock, featuring a satin stainless steel finish, is designed to withstand heavy use while ensuring reliable performance. One of its standout features is the field-reversible handing, allowing for easy installation on both right and left-handed doors. The lock accommodates standard door thicknesses ranging from 1-3/8" to 2-1/2" and includes a 2-3/4" backset for versatile fitment. Equipped with a two-piece stainless steel latch bolt and a 1" throw deadbolt, the MA441L ensures optimal security against unauthorized access. The lock’s heavy-duty construction includes cold-formed steel and zinc dichromate plated case, providing resistance to wear and tear. Additionally, the MA441L is designed for easy retrofitting due to its interchangeable core, compatible with SFIC products from various manufacturers. Certified to meet ANSI/BHMA 156.13 standards and UL listed for 3-hour fire ratings, this lock is a trusted solution for high-traffic areas where safety and reliability are paramount. Experience peace of mind with Falcon’s exceptional craftsmanship.

Classroom Security Mortise Loc

Grade 1 Classroom Security Mortise Lock, Less Conventional Cylinder, Dane Lever, Napa Escutcheon, Satin Stainless Steel Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
