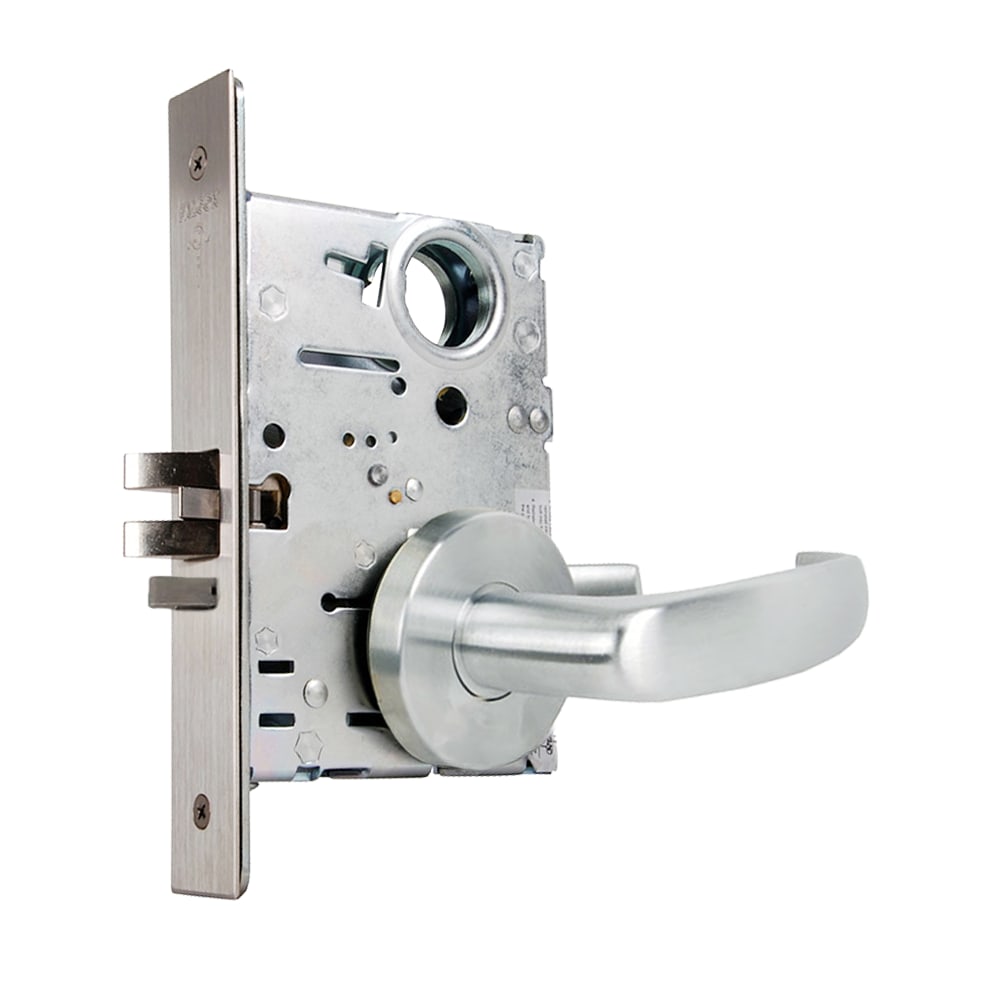

Falcon Lock MA441L QG 626 Classroom Security Mortise Lock

Falcon MA441L QG 626 Classroom Security Mortise Lock combines robust security with ease of use, making it an ideal choice for commercial environments such as offices, hospitals, and educational facilities. This Grade 1 lock is designed to withstand constant use, ensuring reliability and durability over time. Featuring a sleek Gala Rose design and finished in satin chrome, it is as aesthetically pleasing as it is functional. The MA441L is engineered for standard door thicknesses ranging from 1-3/8" to 2-1/2", with a 2-3/4" backset. Its cold-formed steel case is zinc dichromate plated, providing added resistance against wear. The heavy-duty, two-piece stainless steel latch bolt projects 3/4", while the deadbolt features a 1" throw with saw-resistant rollers for enhanced security. Installation is straightforward, as the lock is reversible in the field and compatible with interchangeable cores from other manufacturers. With bind-resistant trim and reinforced faceplates, the MA441L ensures a secure fit. This model meets ANSI/BHMA 156.13, Series 1000, and has a 3-hour UL rating, confirming its reliability in demanding settings. Choose the Falcon MA441L QG 626 for a dependable, stylish solution to your classroom security needs.

Classroom Security Mortise Loc

Grade 1 Classroom Security Mortise Lock, Less Cylinder, Quantum Lever, Gala Rose, Satin Chrome Finish

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
