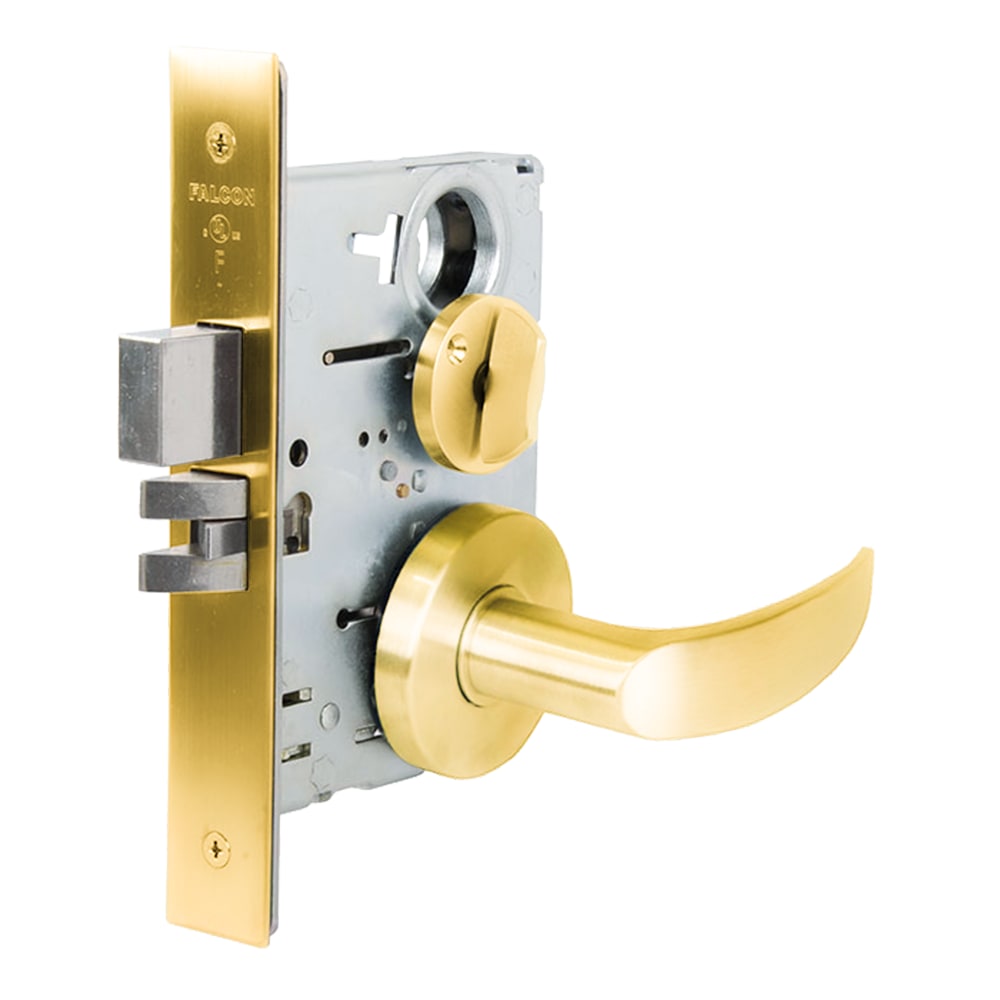

Falcon Lock MA541L AG 605 Entry/Office Mortise Lock

Falcon Lock MA541L AG 605 Entry/Office Mortise Lock offers Grade 1 security tailored for high-traffic environments such as offices, hospitals, and educational institutions. This lock features a sturdy Avalon lever with a Gala rose, complemented by a polished brass finish that enhances both aesthetics and functionality. Designed for reliability, it’s built from cold-formed steel with a zinc dichromate plating, ensuring durability against daily wear and tear. The MA541L accommodates door thicknesses ranging from 1-3/8" to 2-1/2" and features a 2-3/4" backset. Its solid brass cylinder and plug allow for customizable keying options, with 5, 6, or 7-pin configurations available. The heavy-duty design includes a two-piece stainless steel latch bolt and a 1" throw deadbolt, both engineered to resist tampering. Field-reversible handing simplifies installation, while the bind-resistant trim maintains proper alignment and resists loosening over time. The lock meets ANSI/BHMA 156.13 standards and is UL listed for up to 3 hours of fire resistance. With electrified functions available in 12 or 24 VDC, the Falcon MA541L is a versatile solution for any commercial setting, ensuring security without compromising ease of access.

Entry/Office Mortise Lock

Grade 1 Entry/Office Mortise Lock, Less Conventional Cylinder, Avalon Lever, Gala Rose, Bright Brass Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.
