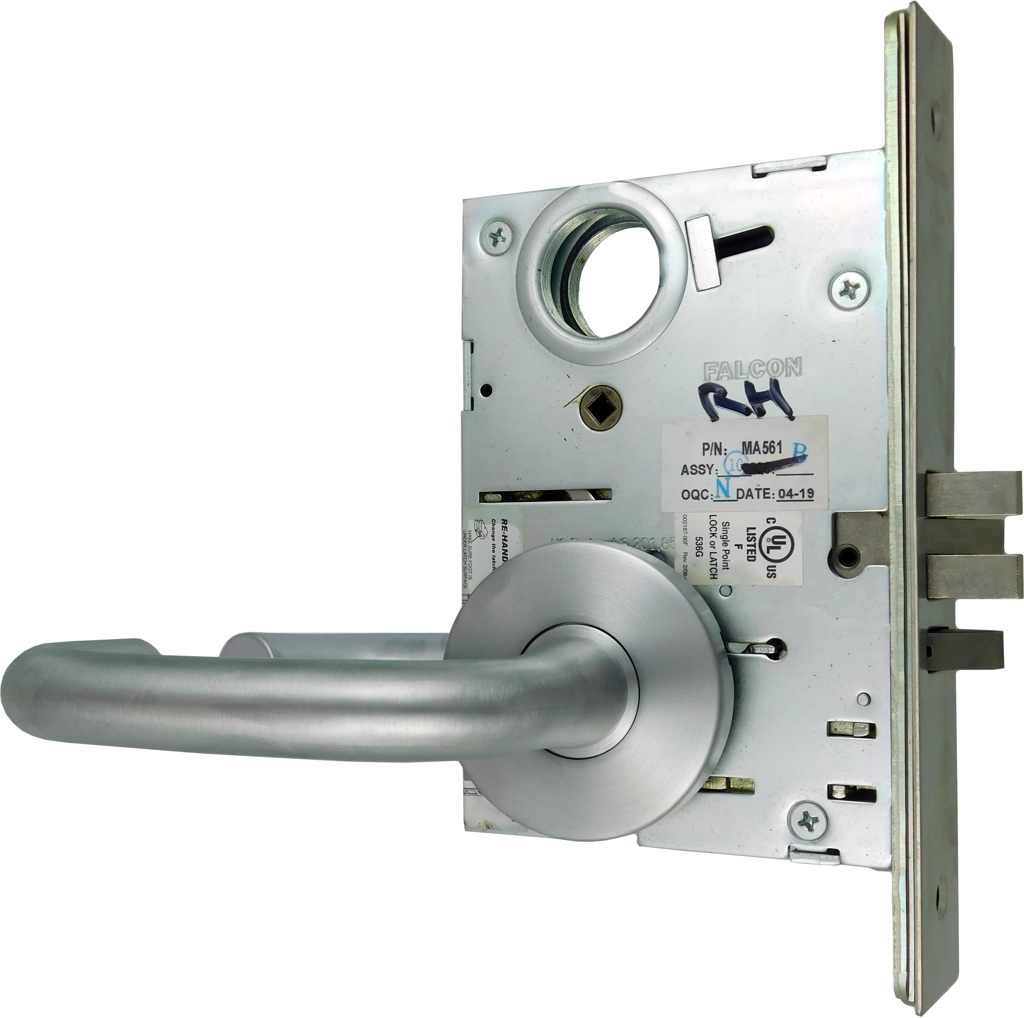

Falcon Lock MA561L-SG626-LC Classroom Mortise Lever Suto-Gala LC, 626/US26D Satin ChromeFalcon Lock MA561L-SG626-LC Classroom Mortise Lever Suto-Gala LC, 626/US26D Satin Chrome combines heavy-duty performance with exceptional value, making it ideal for educational institutions, healthcare facilities, and commercial environments. This Grade 1 mortise lock is engineered to withstand high-traffic and high-abuse applications, ensuring long-lasting reliability. Featuring a forged escutcheon for enhanced strength, the MA561L is equipped with a solid brass cylinder and plug. The 1" stainless steel deadbolt includes security roller pins, while the two-piece stainless steel anti-friction latch bolt provides seamless operation. Its corrosion-resistant cold-formed steel case guarantees durability in various settings. Designed with accessibility in mind, the lever design meets ADA requirements and allows for reversible handing without disassembly. The lock supports a range of functions, including the classroom lock function, which permits free egress while allowing secure locking from the outside. Certified by ANSI/BHMA as Grade 1 and UL listed for 3-hour fire doors, the Falcon MA561L is a secure and compliant choice. With a variety of finishes available, including the elegant satin chrome, it can easily complement any architectural style. Upgrade your security with the trusted performance of Falcon Lock.
Classroom Mortise Lever Suto-Gala LC, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The Falcon MA Series delivers the heavy-duty performance of a Grade 1 mortise lock at an affordable price for your office, hospital, education, or other commercial project. MA, as one of Falcon's toughest and most dependable locks, is designed to handle high-traffic, high-abuse applications. And, with generous trim and finish styles, the MA Series makes it easy to match existing or new design choices. Cylinders offered include the Small Format Interchangeable Core cylinders that can be removed quickly for easy, fast re-keying in high turnover environments.
Features:
- Forged escutcheon for added strength.
- Solid brass cylinder and plug.
- 1" stainless steel deadbolt with security roller pins.
- Two piece stainless steel anti-friction latch bolt.
- Cold-formed steel, zinc plated with dichromate for corrosion resistance.
- All lever designs meet ADA requirements.
- Reversible handing without opening lock chassis case.
Specifications:
- ANSI/BHMA: Certified ANSI/BHMA 156.13, Series 1000, Grade 1.
- UL: Listed 3-hour fire door, A label.
- Functions: 26 mechanical and 2 electrified (12 or 24 VDC) commercial functions available.
- Finishes: 9 options available.
- Door thickness: Standard offering only accepts door thicknesses of 1-3⁄4" - 1-7⁄8". If door thickness is between 1-7⁄8" and 2-1⁄2" customer must specify thickness.
- Backset: 2-3⁄4" only.
- Case: Cold formed steel, zinc dichromate plated, .090" thick. Optional lead wrapping available.
- Hubs: Hardened steel.
- Handing: Right hand is standard; left hand optional. Reversible in the field.
- Cylinders: Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Mortise and cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Hotel function cylinders available.
- Keyways: "G" keyway standard on conventional cylinders. "A" keyway standard on SFIC cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways.
- Bind resistant trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection.
- Dead bolt: 1" throw, stainless steel with two 3⁄16" diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates: (armored front) 11⁄4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Indicator options: Occupied/Vacant or Locked/Unlocked.
Lever/Knob Styles:
- (AG/AN): Avalon.
- (BOG/BON): Boardwalk.
- (BRG/BRN): Broadway.
- (DG/DN): Dane.
- (LTG/LTN): Latitude.
- (LGG/LGN): Longitude.
- (QG/QN): Quantum.
- (SG/SN): Sutro.
- (HG/HN): Hana.
Trim Styles:
- (G): Gala rose.
- (N): Napa escutcheon.
Function:
- MA101/F01 Passage/Closet Latchset: Latch bolt operated by knob/lever from either side at all times. Inside knob/lever always free for immediate egress.
- MA161/F31 Connecting Room/Exit Lock: Latch bolt operated by knob/lever from inside. No trim outside. Auxiliary dead latch.
- MA301/F02 Privacy Lock: Latch bolt operated by knob/lever from either side. Dead bolt operated by turn from inside and by emergency release from outside.
- MA311/F19 Privacy, Bedroom or Bath Lock with Inside Lever Release: Latch bolt operated by knob/lever from either side. Dead bolt operated by turn from inside and emergency release from outside. Operating inside knob/lever retracts both bolts. Inside knob/lever always free for immediate egress.
- MA321/F22 Privacy Lock with No Entry Lockout: Latch bolt operated by knob/lever from either side except when outside knob/lever is locked by inside turn. Operating inside knob/lever, closing door or operating outside emergency release unlocks outside knob/lever. Inside knob/lever always free for immediate egress.
- MA371/F14 Store Door Lock: Latch bolt operated by knob/lever from either side. Dead bolt operated by key from either side.
- MA381/F09 Apartment Exit Lock: Latch bolt operated by knob/lever from either side, except when outside knob/lever is locked by key from inside. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
- MA411/F30 Asylum Lock: Latch bolt operated by key from either side. Both knobs/levers always inoperative. Auxiliary dead latch.
- MA431/F34 Security Lock with Deadbolt: Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. Dead bolt retracted by key from inside or outside. Operating inside knob/lever retracts both bolts and unlocks outside. Latch bolt dead locked when dead bolt is thrown. Inside knob/lever always free for immediate egress.
- MA441/F32 Classroom Security Lock: Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. When outside knob/lever is locked, latch bolt is retracted by key from inside or outside or by operating inside knob/lever. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
- MA451/F15 Hotel Guest Lock: Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Dead bolt projected by turn from inside and all keys except emergency key are shut out. Operating inside knob/lever retracts both bolts. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
- MA521/F04 Entry/Office Lock with Button Lockout: Latch bolt operated by knob/lever from either side except when outside knob/lever is made inoperative by buttons in face. When outside knob/lever is locked, latch bolt is retracted by key from outside or by operating inside knob/lever. Auxiliary dead latch. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress.
- MA531/F15/F20 Apartment Corridor Lock: Latch bolt operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt operated by key outside or turn inside. Key outside operates both bolts. Operating inside knob/lever retracts both bolts and outside remains locked. Latch bolt is deadlocked when outside knob/lever is made inoperative or when the dead bolt is projected. When dead bolt is retracted, knob/lever is unlocked by buttons in face. Inside knob/lever always free for immediate egress.
- MA541/F21 Entry or Office Lock: Latch bolt operated by knob/lever from either side. Dead bolt operated by key from outside or turn from inside.
- MA551/F06 Holdback Lock: Latch bolt operated by lever from either side except when outside lever is locked from outside by key. Latch bolt can be locked in a retracted position by key. When outside lever is locked, latch bolt is retracted by key from outside or by operating inside lever unless latch bolt has been locked in a retracted position. Auxiliary dead latch. To activate the Holdback Function – from the unlocked position rotate the outside lever/knob to retract the latchbolt. Rotate key 360°. Release lever/knob. To release Holdback Function, rotate key 360° clockwise. Inside knob/lever always free for immediate egress.
- MA561/F05 Classroom Lock: Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from outside by key. When outside knob/lever is locked, latch bolt is retracted by key from outside, or by operating inside knob/lever. Auxiliary dead latch deadlocks latchbolt when door is closed. Inside knob/lever always free for immediate exit.
- MA571/F13 Dormitory or Exit Lock: Latch bolt operated by knob/lever from either side. Dead bolt projected by key from outside and turn from inside. Operating inside knob/lever retracts both bolts and unlocks outside. Inside knob/lever always free for immediate egress.
- MA581/F07 Storeroom Lock: Latch bolt operated by key from outside or by operating inside knob/lever. Outside knob/lever is always inoperative. Auxiliary dead latch. Inside knob/lever always free for immediate egress.
- MA621/F10 Apartment Corridor Lock with Button Lockout: Latch bolt is operated by knob/lever from either side, except when outside knob/lever is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside knob/lever is unlocked by button on face. Inside knob/lever always free for immediate egress.
- MA641 Dormitory Lock: Latch bolt by knob/lever inside and key outside. Inside knob/lever free. Outside knob/lever rigid. Deadbolt by key outside or T-turn inside. Rotating inside knob/lever retracts both bolts. Deadlocking latch. Inside knob/lever always free for immediate egress.
- MA851 Storeroom-Fail Safe (EL - 12 or 24V DC) (RX option - request to exit): Latch bolt operated by knob/lever from either side except when outer knob/lever is electrically locked. When outer knob/lever is locked, latch bolt retracted by key in cylinder outside. Deadlocking latch. Inside knob/lever always free for immediate egress.
- MA881 Storeroom-Fail Secure (EU - 12 or 24V DC) (RX option- request to exit): Latch bolt operated by knob/lever from inside except when outer knob/lever is electrically unlocked, then latch bolt from either side. When locked, key in cylinder outside retracts latch bolt. Deadlocking latch. Inside knob/lever always free for immediate egress.
- MA911/F29 Classroom Dead Lock: Key from outside operates dead bolt. Turn from inside retracts but does not project dead bolt.
- MA921/F18 Outside Only Deadlock: Dead bolt operated by key from outside only.
- MA931/F16 Two Sided Deadlock: Dead bolt operated by key from either side.
- MA941/F17 Deadlock with Inside Turn: Dead bolt operated by key from outside and by turn from inside.
- MA12 Single Dummy: Single dummy trim.
- MA18 Double Dummy: Double dummy trim.
Finishes:
- 605/US3 - Brass, Bright
- 606/US4 - Brass, Satin
- 613/US10B - Bronze, Oil Rubbed
- 619/US15 - Nickel, Satin
- 622/US19 - Black, Matte
- 625/US26 - Chromium, Bright
- 626/US26D - Chromium, Satin
- 629/US32 - Satinless Steel, Bright
- 630/US32D - Satinless Steel, Satin
- 643e/US11 - Bronze, Aged
Attributes
Alternate Codes: FALMA561SG626-LC, MA561L-SG626-LC, MA561LSG626LC, MA561SG626-LC, MA561SG626LC
Armor Front Width: 1-1/4"
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Certifications: A156.13, A label, ANSI, BHMA, UL Listed for 3-hour fire door
Cylinder Type: Less 6 Pin Cylinder
Door Application: Mortise Locks
Door Thickness: 1-3/4"
Fasteners: Machine Screws, Wood Screws
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Classroom Lock
Grade: Grade 1
Handing: Right Handed
Key Quantity: 2
Lever Design: Sutro
Manufacturer: Falcon Lock
Rose/ Escutcheon: Gala Rose
Series: MA
Strike Type: Standard Mortise
