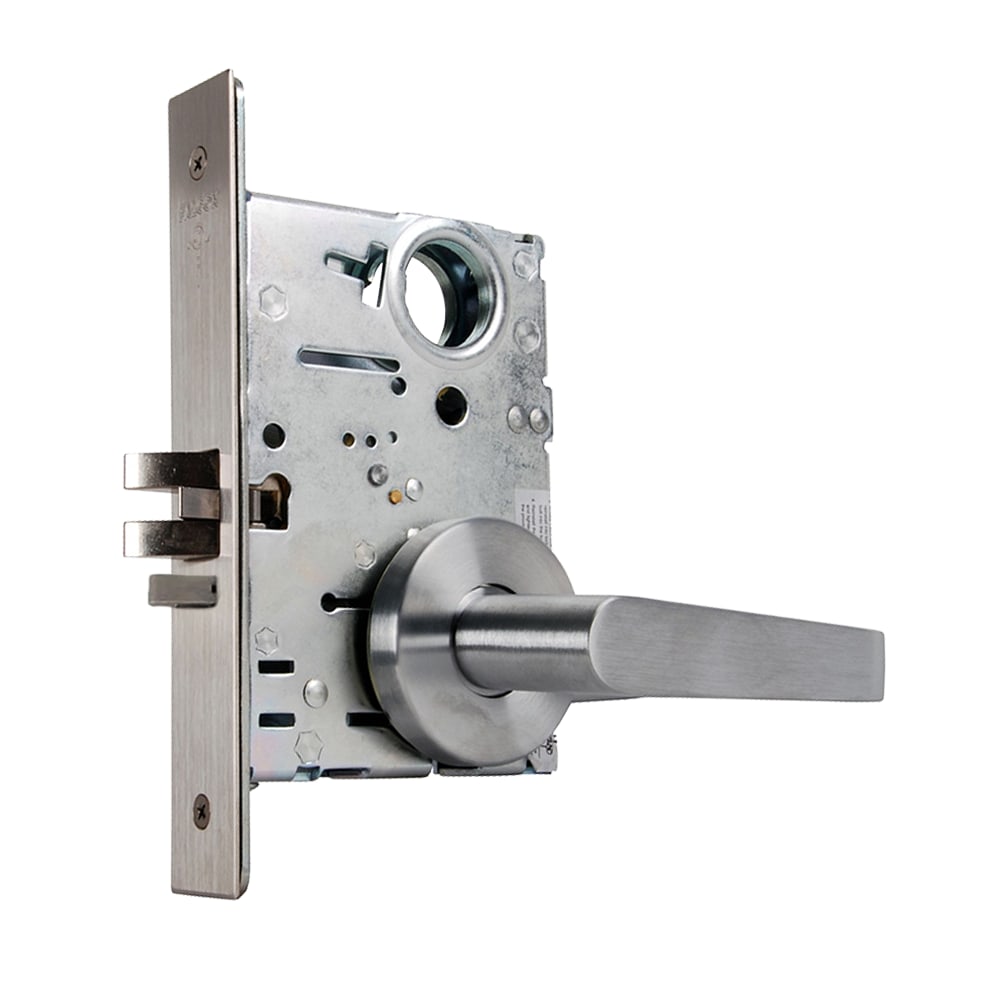

Falcon Lock MA581L DG 626 Storeroom Mortise Lock

Falcon MA581L DG 626 Storeroom Mortise Lock offers exceptional security and durability for various commercial applications, including offices, hospitals, and educational facilities. This Grade 1 storeroom mortise lock is designed for high performance and longevity, ensuring reliable operation even under constant use. The lock features an elegant Dane lever and a Gala rose, finished in satin chrome, providing both aesthetic appeal and functionality. It accommodates door thicknesses ranging from 1-3/8" to 2-1/2" and includes a 2-3/4" backset. The cold-formed steel case is zinc dichromate plated for enhanced corrosion resistance, while the hardened steel hubs ensure strength and reliability. Designed for easy retrofit, the MA581L comes with an interchangeable core for quick re-keying and compatibility with SFIC products from other manufacturers. The heavy-duty through-bolted inserts maintain proper alignment, and the two-piece stainless steel latch bolt features a 3/4" projection for added security. With a 1" throw deadbolt and reinforced faceplates, this lock meets ANSI/BHMA 156.13 standards and is UL listed for a 3-hour fire rating. Choose the Falcon MA581L DG 626 for a dependable, secure locking solution that stands the test of time.

Storeroom Mortise Lock

Grade 1 Storeroom Mortise Lock, Less Cylinder, Dane Lever, Gala Rose, Satin Chrome Finish

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset: 2-3/4” only.
• Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs: Hardened steel.
• Handing: Right hand is standard; left hand optional. Reversible in the field.
• Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions: Available in 12 or 24 VDC.
• ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
• UL: 3 hour A label.

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
