Falcon Lock MEL-25R-L-BE-DAN-US26D-48-LHR Motorized Electric Latch Retraction Rim Exit Device w/ Dane Lever Trim 510L-BE

Falcon Lock MEL-25R-L-BE-DAN-US26D-48-LHR KIT combines cutting-edge design with practical functionality, making it an ideal choice for multifamily and commercial properties. This motorized electric latch retraction (MEL) exit device offers an energy-efficient solution for door control, allowing for both momentary and extended latch retraction through credential readers or automated systems. Constructed to Grade 1 standards, this rim exit device features a sleek satin chrome finish (626/US26D) and a left-hand reversible design, ensuring versatility in installation. The 24VDC, 1 Amp power requirement enables compatibility with various standard Schlage power supplies, while the modular design simplifies upgrades from existing mechanical Falcon exit devices. This MEL device is equipped with advanced features, including on-board diagnostics for installation and troubleshooting, a self-calibrating motor assembly, and vandal resistance to detect tampering. Ideal for use in conjunction with automatic operators, the MEL enhances security by maintaining mechanical egress while providing users with authorized access. For complete functionality, an electrified power transfer (EPT) is necessary and sold separately, ensuring a seamless integration with existing systems. The Falcon Lock MEL-25R-L-BE-DAN is a reliable solution for modern safety needs, marrying convenience with robust security features.

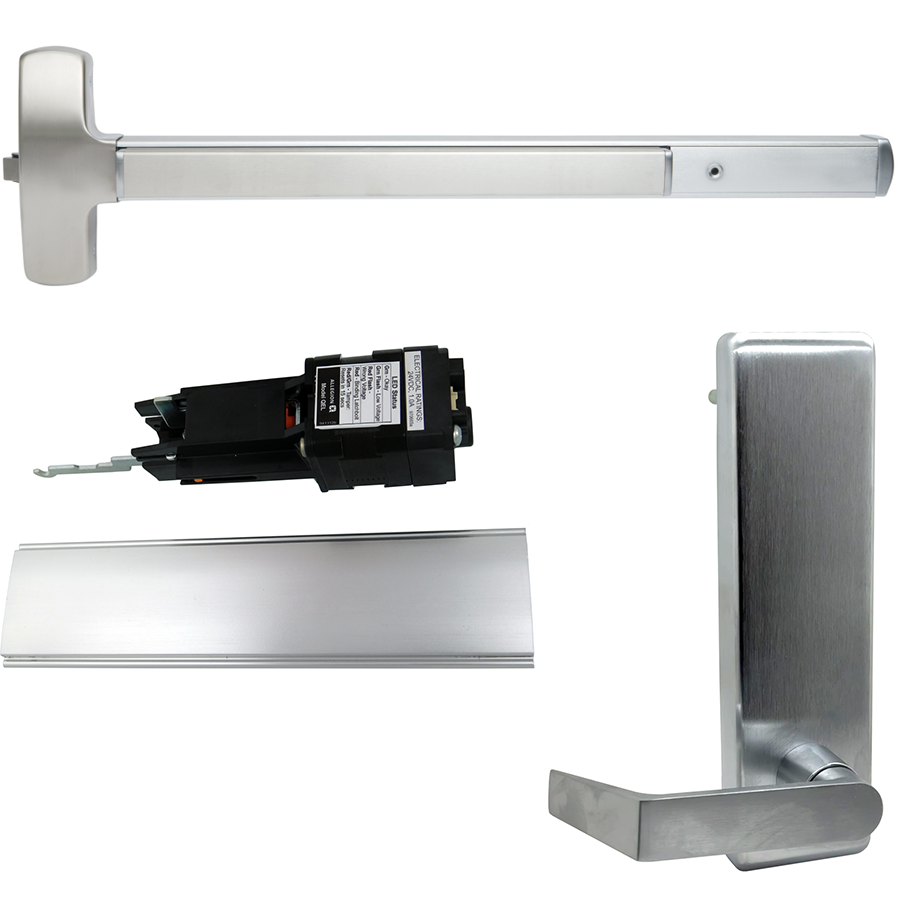

KIT - Motorized Electric Latch Retraction, Rim Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 48in, LHR Left Hand Reverse/Reversible, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering
• A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
