Falcon Lock MEL-25R-L-DAN-US26D-48-RHR Motorized Electric Latch Retraction Rim Exit Device with Dane Lever Trim 510L

Falcon Lock MEL-25R-L-DAN-US26D-48-RHR KIT offers a robust solution for electronic door control with its advanced Motorized Electric Latch Retraction (MEL) feature. This rim exit device combines efficiency and security, making it ideal for multifamily and commercial properties. With a sleek Satin Chrome finish, this Grade 1 device is not just about looks; it ensures reliable performance through its energy-efficient 24VDC motor, requiring only 1 Amp for operation. Designed for versatility, the MEL option is compatible with most Falcon 24 and 25 Series exit devices, providing mechanical egress at all times. Its modular design simplifies installation, allowing for easy conversion from mechanical to electronic systems. The self-calibrating motor assembly and built-in diagnostics enhance user experience by facilitating straightforward installation and troubleshooting. This exit device can be integrated with credential readers for secure entry, providing controlled access while also allowing for moments of free entry when needed. Vandal resistance features ensure durability against tampering, making the MEL-25R a reliable choice for high-traffic areas. To complete your installation, a power transfer device is required, sold separately. Upgrade your security with the Falcon Lock MEL-25R-L-DAN, where convenience meets advanced technology.

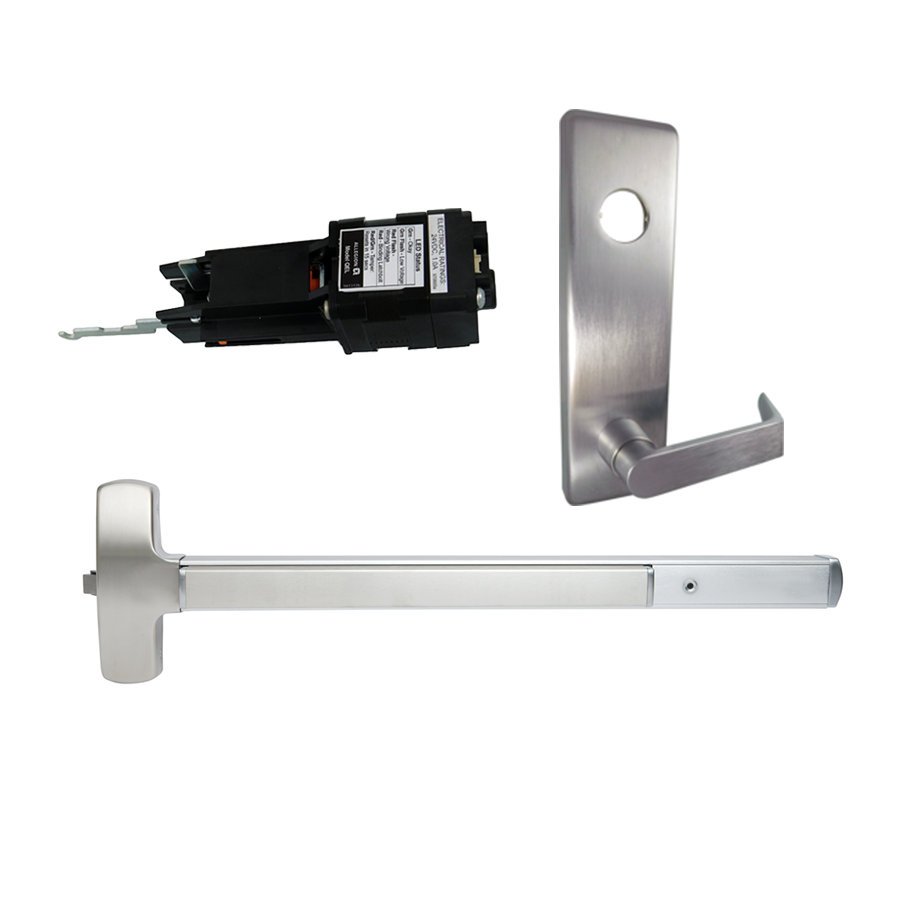

KIT - Motorized Electric Latch Retraction, Rim Exit Device, Escutcheon x Dane Lever Trim 510L, (Requires 1-1/4 Mortise Cylinder), 48in, RHR Right Hand Reverse/Reversible, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering
• A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
