Falcon Lock MEL-25R-L-NL-DAN-US26D-48-RHR Motorized Electric Latch Retraction Rim Exit Device with Dane Lever Trim 510L-NL

Falcon Lock MEL-25R-L-NL-DAN-US26D-48-RHR KIT offers a sophisticated solution for enhanced security in commercial and multifamily environments. This motorized electric latch retraction (MEL) system is designed for use with Falcon’s 24 and 25 Series exit devices, making it an ideal choice where efficient electronic control is essential. The rim exit device features a sleek escutcheon paired with the Dane lever nightlatch trim, ensuring both functionality and professionalism. With a 24VDC power requirement and a low inrush current of 1 amp, the MEL device is compatible with standard Schlage power supplies, facilitating straightforward integration. Its energy-efficient design allows for longer wiring runs, which simplifies installation. The modular design enables easy upgrades from existing mechanical devices. Additionally, the on-board diagnostics and self-calibrating motor assembly ensure reliable operation and ease of maintenance. The MEL system not only provides mechanical egress but can also be integrated with credential readers for secure access. Its vandal-resistant features detect tampering, adding a layer of protection. With a grade 1 rating and a satin chrome finish (US26D), this exit device is built to withstand the rigors of daily use while maintaining a polished appearance.

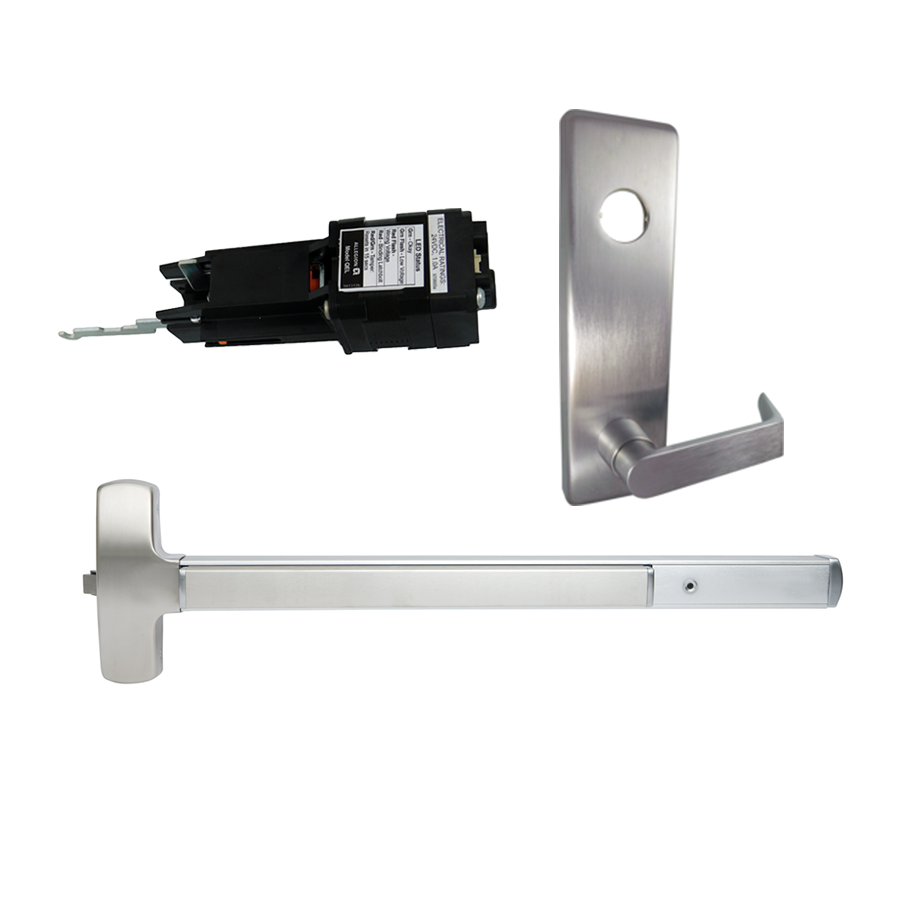

KIT - Motorized Electric Latch Retraction, Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 48in, RHR Right Hand Reverse/Reversible, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering
• A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
