Falcon Lock MEL-25R-L-NL-QUA-US26D-36-LHR Quantum Motorized Electric Latch Rim Exit Device, 24VDC, Satin Chrome

Falcon Lock MEL-25R-L-NL-QUA-US26D-36-LHR KIT offers an advanced motorized electric latch retraction (MEL) system designed for efficient electronic control of exit devices. This rim exit device is ideal for multifamily and commercial real estate applications, providing a reliable and cost-effective solution that ensures mechanical egress at all times. The satin chrome finish (626/US26D) adds a sleek touch while maintaining durability. With a 24VDC, 1 Amp power requirement, the MEL system is energy efficient, making it compatible with standard Schlage power supplies, allowing for longer wire runs. The modular design simplifies installation and enables easy upgrades to existing Falcon 24 or 25 Series exit devices. Built-in diagnostics enhance troubleshooting, while the self-calibrating motor assembly ensures optimal performance. Equipped with vandal resistance features, the MEL-25R responds to tampering, contributing to security. This device can be integrated with credential readers for authorized access, providing flexibility in operation. The need for an Electric Power Transfer (EPT) ensures a seamless wiring path from door to frame, enhancing the overall system integrity. Upgrade your security solutions with the Falcon Lock MEL-25R, offering reliability, efficiency, and modern functionality in one comprehensive package.

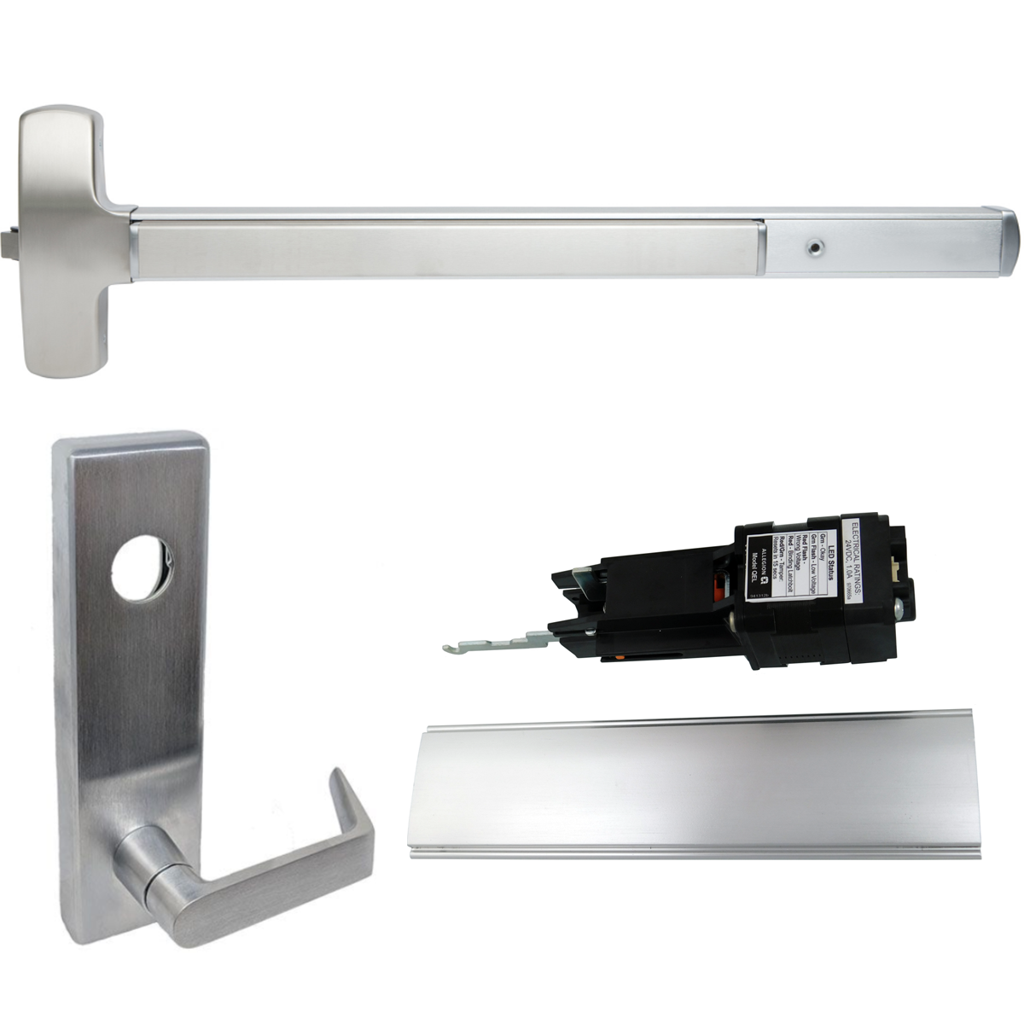

KIT - Motorized Electric Latch Retraction, Rim Exit Device, Escutcheon x Quantum Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 36in, LHR Left Hand Reverse/Reversible, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering
• A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
