Falcon Lock MEL-25V-DT-US26D-36X96 Motorized Electric Latch Retraction SVR Exit Device, Dummy Pull Trim 512DT, 24VDC

Falcon Lock MEL-25V-DT-US26D-36X96 KIT features a motorized electric latch retraction (MEL) system that brings energy-efficient, electronic control to your exit devices. This advanced surface vertical rod exit device is designed for multifamily and commercial applications, offering a reliable solution for controlled access while ensuring mechanical egress at all times. The MEL option enhances the traditional functionality of Falcon's 24 and 25 Series exit devices, facilitating momentary unlatching when paired with credential readers. It also allows for extended access periods, making it a convenient alternative to mechanical dogging. The modular design simplifies installation, and the self-calibrating motor assembly provides seamless operation, with built-in diagnostics for troubleshooting. This Grade 1 device is compatible with standard Schlage power supplies, utilizing a low inrush current of only 1 amp, ensuring efficient power management. Its vandal-resistant features detect tampering and attacks, thus bolstering security. The MEL-25V-DT comes in a sleek satin chrome finish (626/US26D) and is ideal for doors sized 36" x 96". For enhanced security, additional options include fail-safe or fail-secure electric trim and power transfer solutions, sold separately. Upgrade your security system with the Falcon Lock MEL-25V-DT for dependable access control.

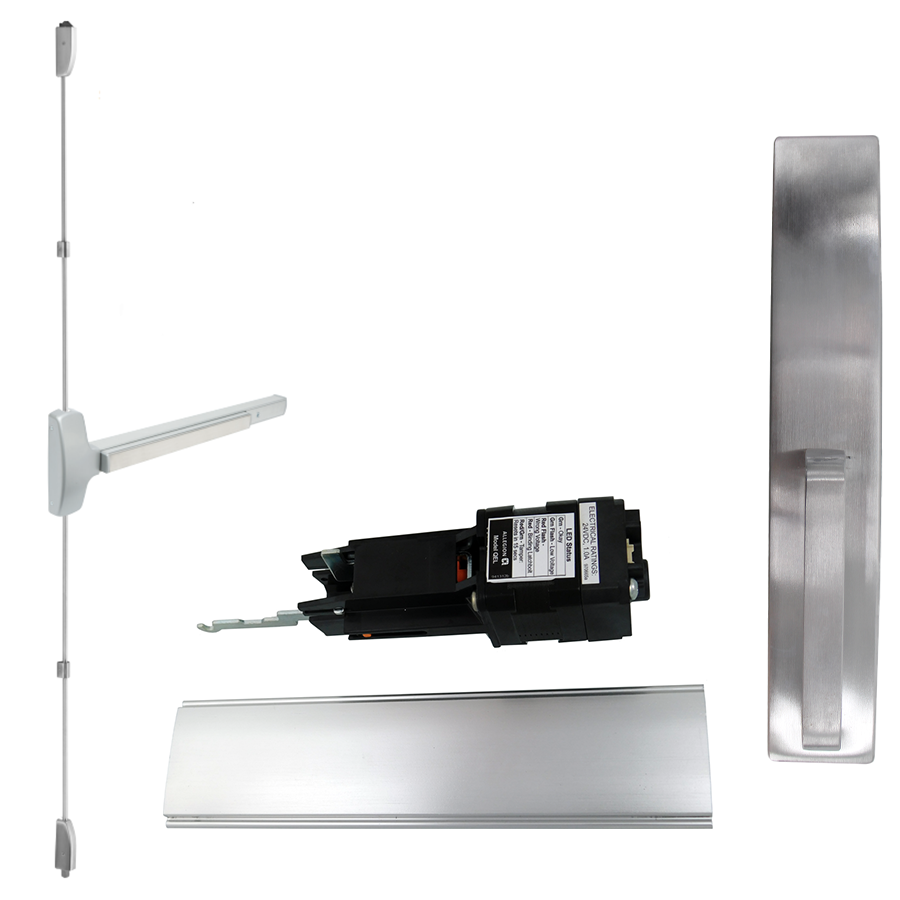

KIT - Motorized Electric Latch Retraction, SVR Surface Vertical Rod Exit Device, Dummy Pull Trim 512DT, 36in x 96in, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering
• A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
