Falcon Lock MEL-F25R-L-NL-DAN-US26D-48-RHR Motorized Electric Latch Retraction Fire Rated Rim Exit Device 510L-NL

Falcon Lock MEL-F25R-L-NL-DAN-US26D-48-RHR KIT offers a sophisticated solution for security in multifamily and commercial buildings. This motorized electric latch retraction (MEL) system allows for energy-efficient electronic control of an exit device, enhancing safety without compromising accessibility. Designed for use with Falcon’s 24 and 25 Series exit devices, the kit features a fire-rated rim exit device combined with a Dane lever nightlatch trim. With a UL rating and powered by a 24VDC, 1 Amp motor, this Grade 1 exit device provides reliable performance. The modular design simplifies installation and compatibility with existing Falcon devices. The MEL option allows for momentary unlatching with credential readers or can be configured for extended periods of free entry, making it an excellent alternative to mechanical dogging. Vandal-resistant features ensure that the device detects and responds to tampering, enhancing security. To facilitate installation, an electrified hinge, door loop, or power transfer (EPT) is required and sold separately. Available in a sleek satin chrome finish (626/US26D), this exit device is not only functional but also aesthetically pleasing, making it a valuable addition to any security setup.

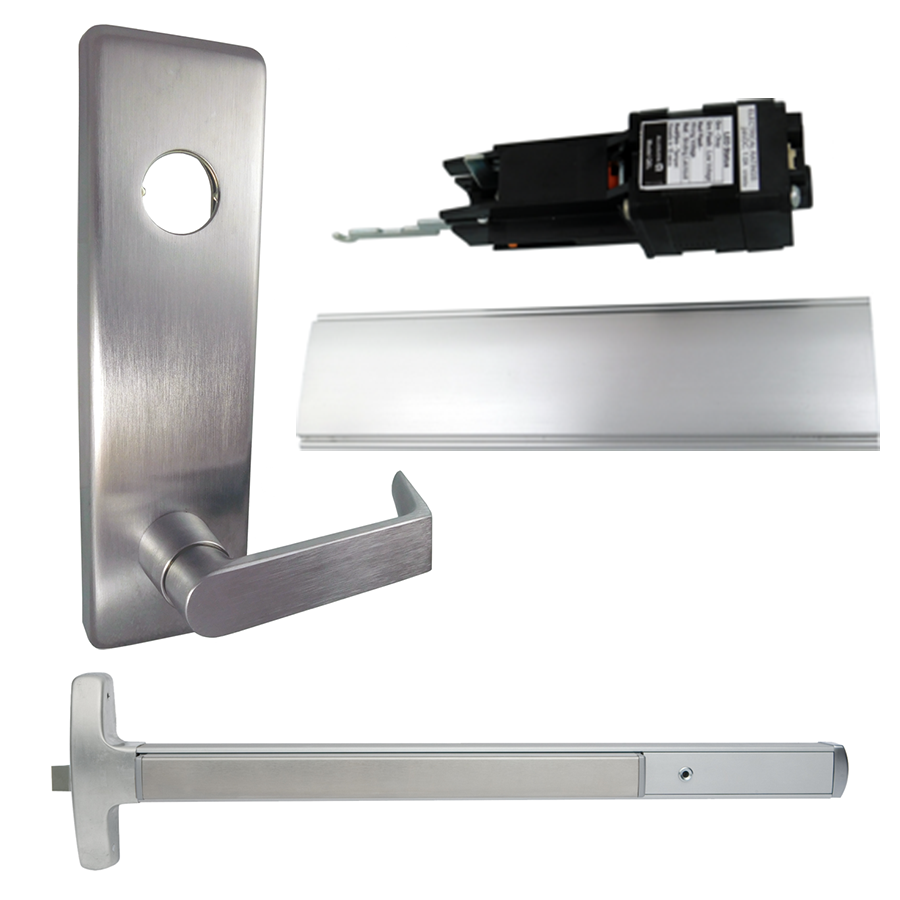

KIT - Motorized Electric Latch Retraction, Fire Rated Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 48in, RHR Right Hand Reverse/Reversible, UL, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering
• A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
