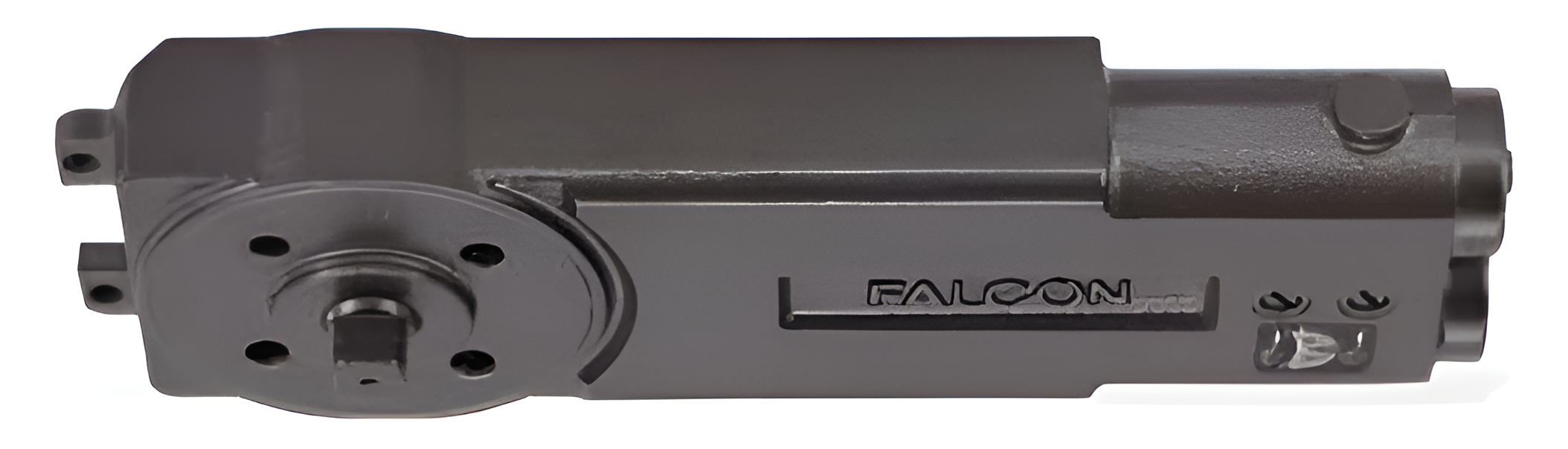

Falcon Lock OHC100A-S105-SL-GE Size 3-5 105 Degree Non Hold Open SL Arm offers exceptional performance and durability for a variety of commercial environments. Constructed with a robust cast iron body, this concealed overhead closer is designed to fit seamlessly within a standard aluminum frame header, making it an ideal choice for installations in retail spaces, restaurants, libraries, offices, and medical clinics. This model features adjustable spring sizes ranging from 1 to 3, providing flexibility for different door weights and uses. The OHC100A is UL10C fire rated and adheres to ADA compliance standards, ensuring safety and accessibility for all users. Its maintenance-free performance means you can rely on it for years without worry, backed by a 5-year warranty. Installation is a breeze thanks to its compatibility with the Jackson hole pattern, allowing for easy retrofitting. The non-handed arm type is designed for side loading and center hanging, providing versatility in various applications. Available in a dark bronze finish, this door closer combines functionality with an attractive aesthetic. Choose the Falcon Lock OHC100A-S105-SL-GE for a reliable solution that enhances security while ensuring smooth operation in high-traffic areas.

Size 3-5 105 Degree Non Hold Open SL Arm

The OHC100 Series closer fits inside a standard aluminum frame header and the cast iron construction provides enhanced security. It offers 2 size options and matches the Jackson hole pattern for easy retrofit. It is designed for interior and exterior use with aluminum doors and frames. It is ideal for retail installations, restaurants, libraries, offices and medical clinics. The OHC100 Series has a cast iron body and fits inside a standard aluminum frame header. Its use with aluminum frames and doors makes for maintenance-free performance. The series is UL10C fire rated, meets the American Disabilities Act (ADA) compliance and meets ANSI A117.1. The OHC100 Series also comes with a 5-year warranty.

Features:

• Body construction
• Cast iron design
• 90° and 105° standard opening with optional hold-open
• Fits inside the standard aluminum frame header
• Quality and durability
• 5-year warranty
• Maintenance-free performance
• Hold-open option available
• Installation
• Matches the Jackson hole pattern for retrofitting
• Used with aluminum frames and doors
• Adjustable spring sizes
• OHC100 adjustable sizes 1-3
• OHC101 adjustable sizes 3-5

Specifications:

• UL10C fire rated (OHC100 and OHC101 Series without hold-open)
• Meets ADA compliance (OHC100 Series)
• Meets ANSI A117.1 (OHC101 Series)

Cylinder Options:

• Standard cylinder
• Hold-open cylinder

Series Arm Options:

• "S" arm, OHC100-SL, OHC100A-SL
• Non-handed arm
• Side load
• Center hung
• Steel forge
• "A" arm, OHC100-EL, OHC100A-EL
• Non-handed arm
• End load
• Center hung
• Steel forge
• "VO" arm, OHC100-VO, OHC100A-VO
• Non-handed arm
• Offset arm with slide channel
• Steel forge
