Falcon Lock RX-25R-L-NL-DAN-710-48-LHR RX Request to Exit Rim Device w/ Dane Lever Nightlatch Trim, LHR, Grade 1

Falcon Lock RX-25R-L-NL-DAN-710-48-LHR KIT combines exceptional functionality with sleek design, making it the perfect choice for high-traffic commercial environments. This RX Request to Exit device features a robust rim exit mechanism complemented by the elegant Dane lever night latch trim. Designed for left-hand reverse applications, this exit device is made from extruded aluminum, offering superior strength and impact resistance, ensuring reliable performance under constant use. Certified to ANSI/BHMA Grade 1 standards, the RX-25R is equipped with a streamlined touch bar for effortless egress in emergencies. The device supports both single and double door applications and includes panic exit and fire exit hardware, making it versatile for various settings like offices, banks, and retail spaces. Notably, the device comes with hex dogging for secure locking and features concealed mounting screws for a clean installation. With a 48-inch width and a striking dark bronze anodized finish, the RX-25R not only enhances safety but also adds an aesthetic appeal. Its stainless steel push pad cover ensures a scratch-resistant surface, while flush-end caps protect against damage in demanding environments. Upgrade your building’s security and accessibility with the Falcon Lock RX-25R exit device.

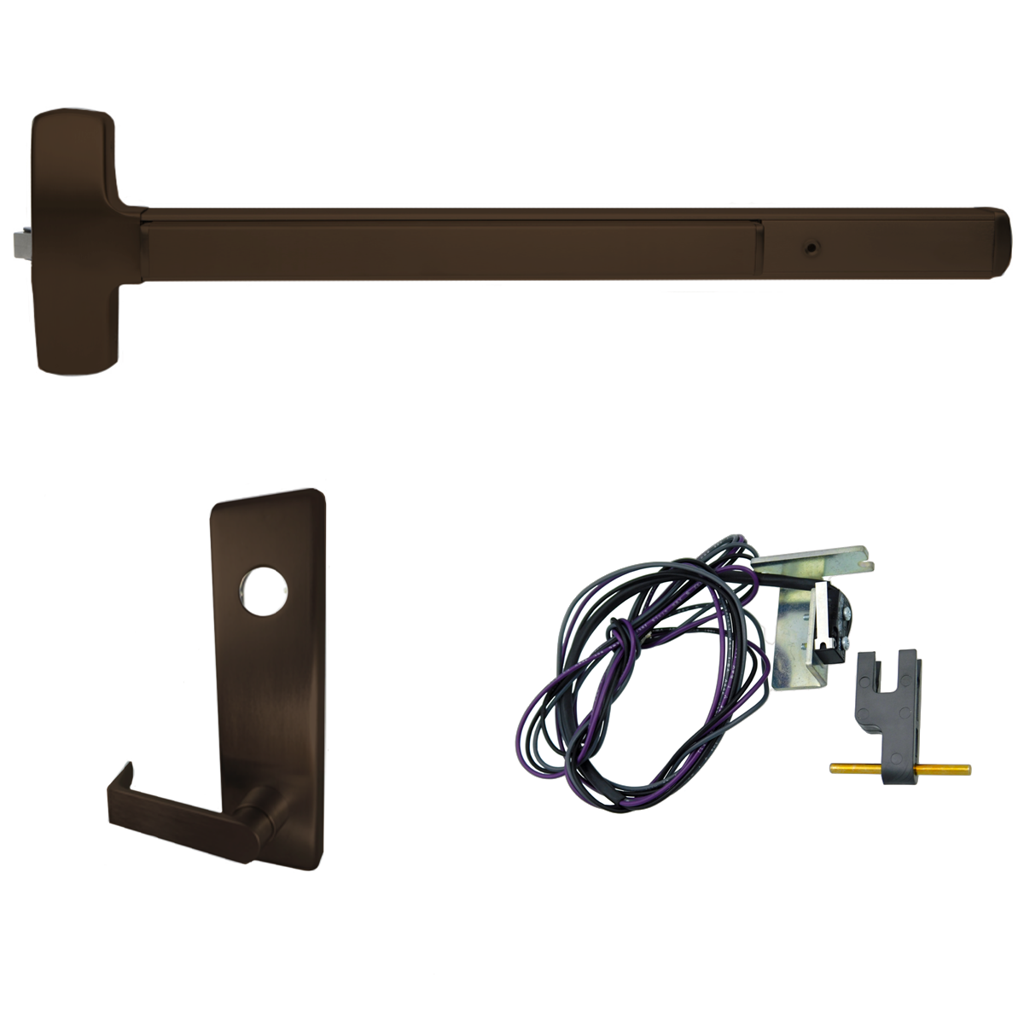

KIT - RX Request to Exit, Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 48in, Hex Dogging, LHR Left Hand Reverse/Reversible Handing, 299 Strike, Grade 1, 710/313AN Dark Bronze Anodized

The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. The 25-R series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility

Features:

• Extruded aluminum construction delivers greater strength and impact resistance
• Includes panic exit and fire exit hardware for single and double door applications
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
• One trim input design provides maximum versatility and ability to use various trims
• Stainless steel push pad cover provides a scratch-resistant pushing surface
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors

Functions:

• EO (01): Exit only, no trim.
• DT (02): Entrance by trim when actuating bar is locked down.
• NL (03): Entrance by trim when latchbolt is retracted by key. Key removable only when locked.
• TP (05): Entrance by thumbpiece. Key locks or unlocks thumbpiece.
• L or K (08): Entrance by knob or lever. Key locks or unlocks knob.
• L(NL) or K(NL) (03): Entrance by knob or lever when latchbolt is retracted by key. Lever/knob is rigid. Key removable only when locked.

Lever Designs:

• Avalon (AVA): Projection 3-1⁄4"
• Quantum (QUA): Projection 3-1⁄4"
• Dane (DAN): Projection 3"
• Broadway (BRW): Projection 3-1⁄5"
• Boardwalk (BRK): Projection 3-1⁄5"
• Danish (DSH): Projection 2-9⁄10"
• Latitude (LAT): Projection 3-1⁄10"
• Longitude (LON): Projection 3-1⁄10"
• Sutro (SUT): Projection 3-1⁄4"

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4" throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Hex dogging standard
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Double Cylinder – Classroom Security: Available with L function for 25-R-L less dogging and F-25-R-L devices only. Specify handing. Cylinders sold separately.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Mounting Height: 40-1⁄4" from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 - 425 (#I0-24) SNB. For devices with trim, specify 2 - 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4" thick, specify SK25-RM.

Stock Sizes:

• Single Door Application:

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4"	2' 7 1⁄2"
25-R	3’	264	3 7⁄8"	2' 7 3⁄8"
25-R	3’	1439	3 1⁄4"	2' 6 3⁄4"
25-R	3’	1606	3 5⁄8"	2' 7 1⁄8"
25-R	4'	299	4"	3' 1 1⁄2"
25-R	4'	264	3 7⁄8"	3' 1 3⁄8"
25-R	4'	1439	3 1⁄4"	3' 3⁄4"
25-R	4'	1606	3 5⁄8"	3' 1 1⁄8"

• Double Door Application:

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4-1⁄8"	2' 7-1⁄2"
25-R	3’	299 x 4023	4-3⁄8"	2' 7-1⁄2"
25-R	3’	264 x 2923	4"	2' 7-3⁄8"
25-R	3’	264 x 4023	4-1⁄4"	2' 7-3⁄8"
25-R	3’	1439 x 2923	3-7⁄8"	2' 7-1⁄4"
25-R	3’	1439 x 4023	4-1⁄8"	2' 7-1⁄4"
25-R	3’	1606 x 2923	4-1⁄4"	2' 7-1⁄8"
25-R	3’	1606 x 4023	4-1⁄2 "	2' 7-1⁄8"
25-R	4’	299 x 2923	4-1⁄8"	3' 1-1⁄2"
25-R	4’	299 x 4023	4-3⁄8"	3' 1-1⁄2"
25-R	4’	264 x 2923	4"	3' 1-3⁄8"
25-R	4’	264 x 4023	4-1⁄4"	3' 1-3⁄8"
25-R	4’	1439 x 2923	3-7⁄8"	3' 1-1⁄4"
25-R	4’	1439 x 4023	4-1⁄8"	3' 1-1⁄4"
25-R	4’	1606 x 2923	4-1⁄4"	3' 1-1⁄8"
25-R	4’	1606 x 4023	4-1⁄2 "	3' 1-1⁄8"
25-Vx 25-R	3’	1609	3-1⁄2"	2' 7-5⁄8" for 3-1⁄2" Min stile
25-Vx 25-R	4’	1609	3-1⁄2"	3’ 1-5⁄8" for 3-1⁄2"Min stile

Finishes:

• US3/605 - Bright brass
• US4/606 - Satin brass
• US10/612 - Satin bronze
• US11/643e - Aged bronze
• US15/619 - Satin nickel
• US19/622 - Matte black
• US26/625 - Bright chrome
• US26D/626 - Satin chrome
• US28/628 - Anodized aluminum
• US32/629 - Bright stainless steel
• US32D/630 - Satin stainless steel
• 313AN/710 - Anodized duranodic
