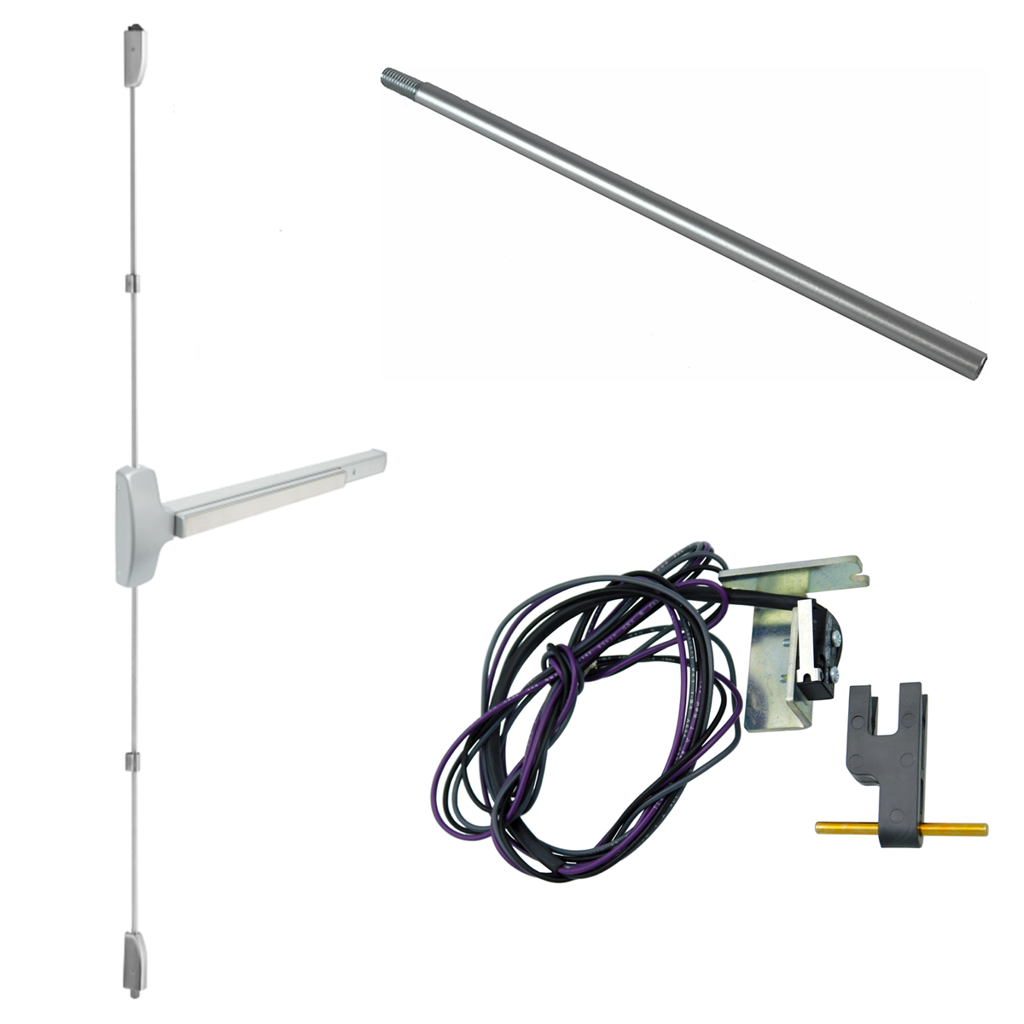

Falcon Lock RX-25V-EO-26D-36X84 KIT - RX Request to Exit, SVR Vertical Rod Exit Device, 36in, Satin Chrome

Falcon Lock RX-25V-EO-26D-36X84 KIT is engineered for high-traffic environments, providing robust security and ease of use with its surface vertical rod exit device. Designed for exit-only applications, this 36-inch model features a sleek touch bar and hex dogging mechanism, ensuring an attractive and functional installation. Constructed from extruded aluminum, it offers enhanced strength and impact resistance, making it an ideal choice for both single and double door setups. The RX-25V-EO is equipped with a deadlocking latchbolt for added security, along with stainless steel push pad covers that resist scratches. Its streamlined design eliminates exposed screws and rivets, contributing to a polished appearance. This device accommodates doors up to 1-3/4 inches thick, whether wood or metal, and is compatible with various trim styles. Certified to ANSI A156.3-2001 Grade 1 standards, it features concealed mounting screws for a clean installation. The device also supports electric features, allowing integration with building security systems for added functionality, including delayed egress and exit alarms. With its versatile design and durable construction, the Falcon Lock RX-25V-EO-26D-36X84 KIT is the perfect choice for reliable and secure access control in any setting.

KIT - RX Request to Exit, SVR Surface Vertical Rod Exit Device, Exit Only, 36in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25 Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor.
• Angle Bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.
• Deadlocking Latchbolt: Standard in top latch.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Electric Features: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Vertical Rods: Furnished to length based on a 40-1⁄4" horizontal CL from finished floor and a 7’ 0" door standard. Variations from these standards must be specified when ordering.
• 25-V-LBR: Less bottom rod vertical device.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-V.

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 612/US10 - Bronze, Satin
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Stainless Steel, Bright
• 630/US32D - Stainless Steel, Satin
• 628/US28 - Anodized Aluminum
• 643e/US11 - Bronze, Aged
• 710/313AN - Anodized Duranodic
