Falcon Lock RX-25V-EO-US3-36X96 KIT is designed for high-traffic environments where security and reliability are paramount. This surface-mounted vertical rod exit device combines a sleek design with robust functionality, making it an ideal choice for both single and double door applications. Constructed from extruded aluminum, it offers exceptional strength and impact resistance, ensuring long-lasting performance. The RX-25V features a top latch and deadlocking for added security, while the hex dogging mechanism allows for easy operation without wear-prone threaded parts. Its stainless steel push pad cover provides a scratch-resistant surface that maintains its appearance over time, and the flush-end caps prevent damage in demanding situations. With no exposed screws or rivets, this device presents a streamlined look that enhances the aesthetic of any entrance. Compliant with ANSI A156.3 Grade 1 standards, the RX-25V is suitable for doors up to 1-3/4" thick and is reversible for flexibility during installation. It includes integrated panic and fire exit hardware, ensuring safety during emergencies. Available in polished brass finish, this exit device not only meets rigorous safety requirements but also complements a variety of architectural styles, making it a smart choice for modern building professionals and informed homeowners alike.

KIT - RX Request to Exit, SVR Surface Vertical Rod Exit Device, Exit Only, 36in x 96in, Hex Dogging, Grade 1, 605/US3 Polished Brass

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25 Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor.
• Angle Bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.
• Deadlocking Latchbolt: Standard in top latch.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.

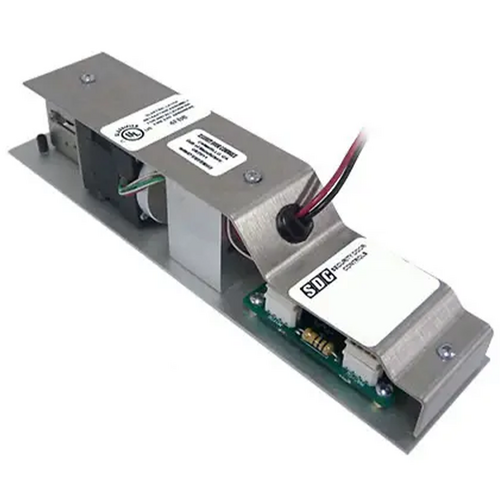

• Electric Features: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Vertical Rods: Furnished to length based on a 40-1⁄4" horizontal CL from finished floor and a 7’ 0" door standard. Variations from these standards must be specified when ordering.
• 25-V-LBR: Less bottom rod vertical device.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-V.

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 612/US10 - Bronze, Satin
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Stainless Steel, Bright
• 630/US32D - Stainless Steel, Satin
• 628/US28 - Anodized Aluminum
• 643e/US11 - Bronze, Aged
• 710/313AN - Anodized Duranodic
