Falcon Lock RX-25V-L-FSE-DAN-US26D-36X96-LHR RX Request to Exit Electrified Trim, SVR Vertical Rod, Satin Chrome, Grade 1

Falcon Lock RX-25V-L-FSE-DAN-US26D-36X96-LHR KIT is engineered for high-traffic scenarios, offering robust security and ease of use. This electrified trim exit device features a surface-applied design with a standard top latch and a deadlocking mechanism for dependable performance. Ideal for both single and double door applications, its extruded aluminum construction enhances strength and impact resistance, ensuring long-lasting durability. The sleek touch bar design not only provides functionality but also adds a sophisticated aesthetic to the installation. With no exposed screws or rivets, the RX-25V maintains clean lines, contributing to its streamlined appearance. The half-turn hex dogging feature is standard, eliminating the risk of wear associated with threaded parts. Designed for versatility, the device is field-reversible and compatible with various trims, making it suitable for a diverse range of settings. The stainless steel push pad cover offers a scratch-resistant surface, while flush-end caps protect against damage in high-abuse environments. Certified to ANSI A156.3-2001 Grade 1 standards, this device is perfect for both commercial and residential applications. With electric features that can interface with building security systems, the Falcon Lock RX-25V-L-FSE-DAN-US26D is an excellent choice for ensuring safety and accessibility.

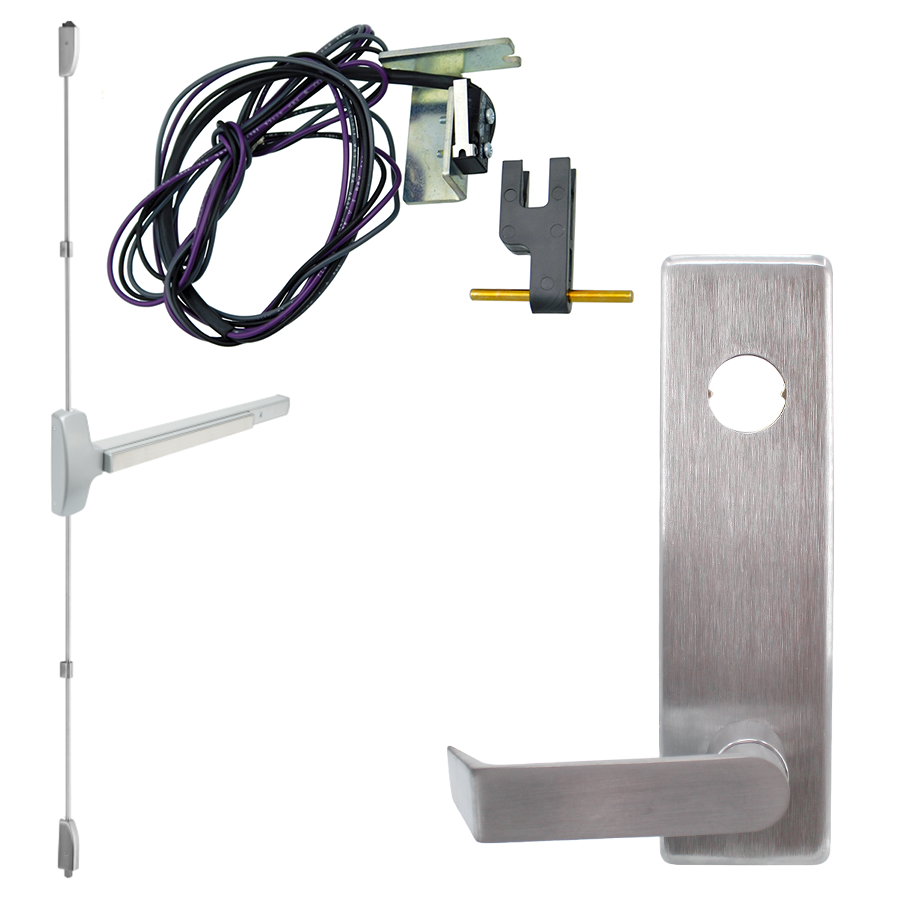

KIT - RX Request to Exit, Electrified Trim, SVR Surface Vertical Rod Exit Device, Escutcheon x Dane Lever Trim 510L-FSE, 36in x 96in, Hex Dogging, LHR Left Hand Reverse/Reversible Handing, Grade 1, 626/US26D Satin Chrome

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25 Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• Includes panic exit and fire exit hardware for single and double door applications.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Field reversible.
• Strikes: 3788 top strike is surface applied; 2130 bottom strike is mortised into floor.
• Angle Bracket: Use 4215 angle bracket in flush transom installations. Allows use of standard 3788 strike.
• Latchbolt: Top stainless steel 3⁄4" throw. Bottom bolt, 1⁄2" throw.
• Deadlocking Latchbolt: Standard in top latch.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify "CD" prefix. Uses 1-1⁄8" long mortise cylinder with standard cam.
• Doors: 1-3⁄4" thick, wood or metal. Specify thickness if other than 1-3⁄4".
• Projections: 2-3⁄4" maximum, 2" dogged.
• Electric Features: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Vertical Rods: Furnished to length based on a 40-1⁄4" horizontal CL from finished floor and a 7’ 0" door standard. Variations from these standards must be specified when ordering.
• 25-V-LBR: Less bottom rod vertical device.
• Shim Kits: For glass lite applications; 1⁄4" thick, specify SK25-V.

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 612/US10 - Bronze, Satin
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Stainless Steel, Bright
• 630/US32D - Stainless Steel, Satin
• 628/US28 - Anodized Aluminum
• 643e/US11 - Bronze, Aged
• 710/313AN - Anodized Duranodic
