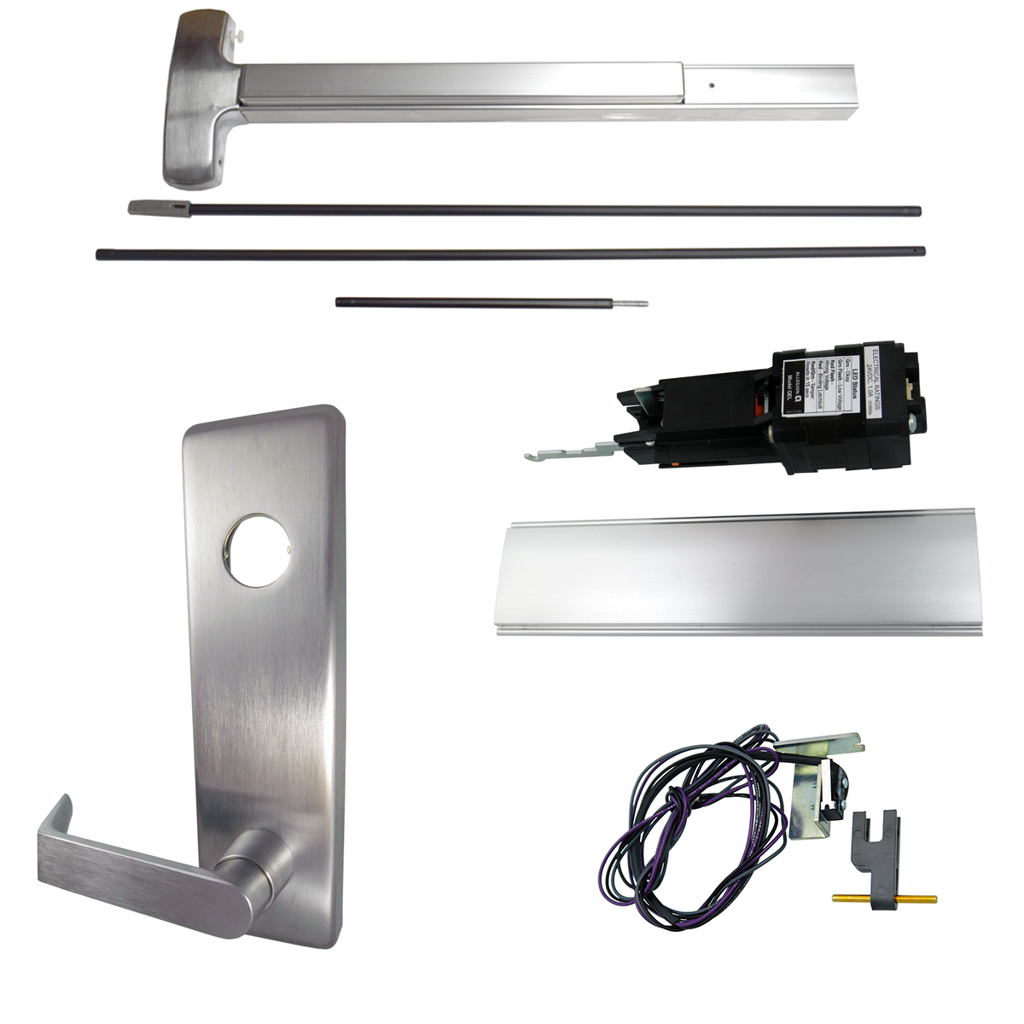

Falcon Lock RX-MEL-25R-L-DAN-US26D-36-RHR KIT RX Motorized Exit Device, Rim Latch, Dane Lever Trim 510L, Satin Chrome

Falcon Lock RX-MEL-25R-L-DAN-US26D-36-RHR KIT offers an advanced solution for electronic control of exit devices, combining functionality with energy efficiency. This Motorized Electric Latch Retraction (MEL) system is ideal for multifamily and commercial facilities, enabling cost-effective operation without sacrificing security. Designed for a 36-inch door, the kit is Right Hand Reverse/Reversible (RHR) and operates on 24VDC at 1 Amp, ensuring reliable performance. The RX-MEL features a modular design that simplifies installation, allowing for easy conversion of existing Falcon 24 or 25 Series exit devices. Its self-calibrating motor assembly provides diagnostics for efficient troubleshooting, and the vandal-resistant construction detects tampering attempts, enhancing security. The push bar retracts electronically when dogged, allowing authorized users seamless access. This device requires a standard 1-1/4 mortise cylinder and is compatible with various power supplies, making it versatile for multiple applications. With a Grade 1 rating and a sleek Satin Chrome finish (626/US26D), the RX-MEL not only meets stringent security standards but also adds a touch of modern elegance to any entryway. Optimize your building’s safety with the Falcon Lock RX-MEL-25R-L-DAN, where innovation meets design.

KIT - RX Request to Exit, Motorized Electric Latch Retraction, Rim Exit Device, Escutcheon x Dane Lever Trim 510L, (Requires 1-1/4 Mortise Cylinder), 36in, RHR Right Hand Reverse/Reversible, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
