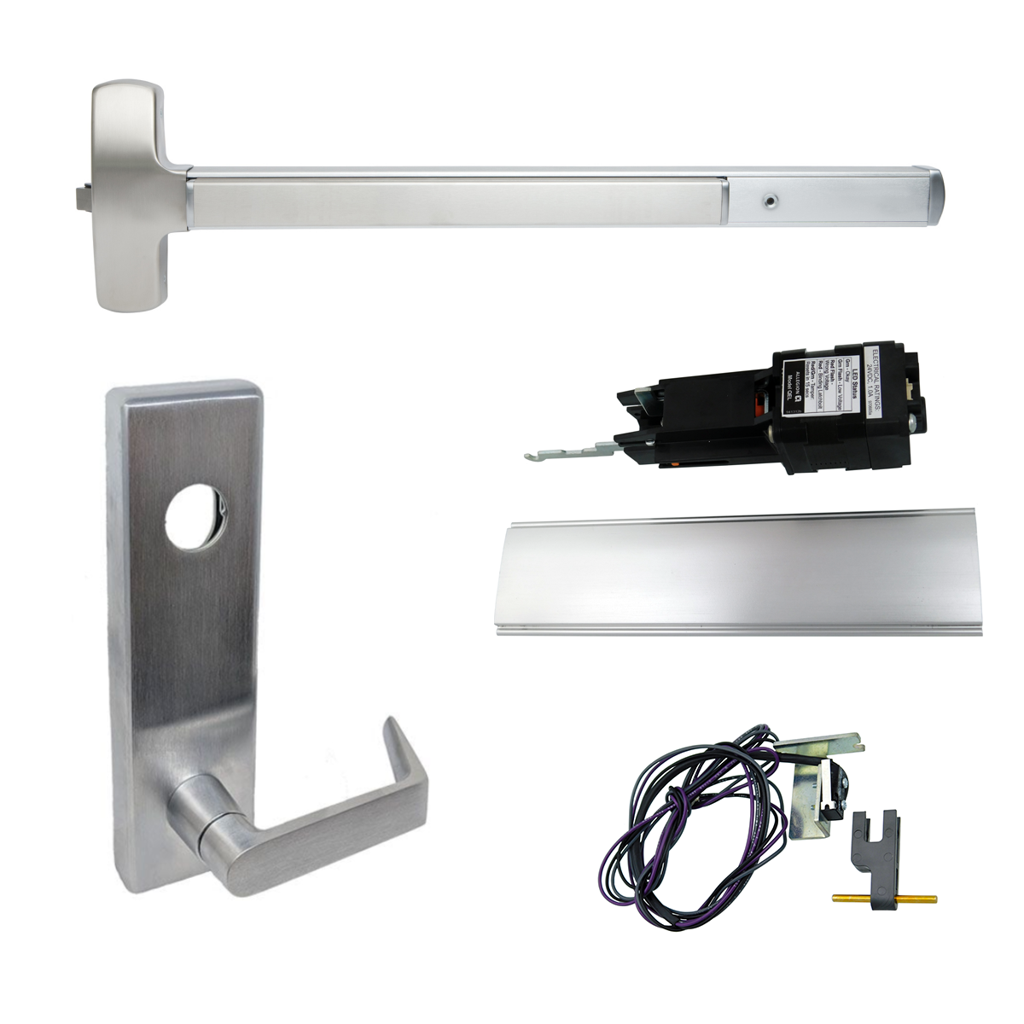

Falcon Lock RX-MEL-25R-L-NL-QUA-US26D-36-LHR KIT RX Motorized Exit Device, Rim Latch, Quantum Trim 510L-NL, Satin Chrome

Falcon Lock RX-MEL-25R-L-NL-QUA-US26D-36-LHR KIT combines advanced security with user-friendly functionality, making it an ideal choice for multifamily and commercial properties. This motorized electric latch retraction (MEL) system provides efficient electronic control over exit devices while ensuring mechanical egress at all times. Designed for durability, this rim exit device features an elegant Quantum Lever Nightlatch Trim and comes finished in 626/US26D satin chrome. With a left-hand reverse/reversible configuration, this device operates on 24VDC at 1 Amp, ensuring compatibility with standard Schlage power supplies. The modular design simplifies installation and allows for seamless upgrades to existing Falcon 24 or 25 Series exit devices. Its self-calibrating motor assembly enhances reliability, while built-in diagnostics assist with installation and troubleshooting. Engineered for security, the RX-MEL-25R features vandal-resistant capabilities that detect and respond to tampering. It integrates easily with credential readers for controlled access, allowing authorized users to unlatch doors momentarily or keep them open for extended periods. Additionally, the system supports security monitoring and fail-safe/electric trim options, providing versatile solutions tailored to your needs. This Falcon Lock product is a powerful combination of security, efficiency, and ease of use, ensuring peace of mind for both building professionals and knowledgeable homeowners.

KIT - RX Request to Exit, Motorized Electric Latch Retraction, Rim Exit Device, Escutcheon x Quantum Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 36in, LHR Left Hand Reverse/Reversible, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
