Falcon Lock RX-MEL-25V-L-NL-QUA-US26D-36X96-RHR RX MEL Motorized Exit Device w/ Quantum Lever Trim, Satin Chrome, Grade 1

Falcon Lock RX-MEL-25V-L-NL-QUA-US26D-36X96-RHR KIT offers an advanced motorized electric latch retraction (MEL) system, providing electronic control over exit devices for enhanced security and convenience. Designed for multifamily and commercial properties, this surface vertical rod exit device incorporates the Quantum lever nightlatch trim and requires a 1-1/4 mortise cylinder. The RX-MEL features a robust construction with a Grade 1 rating and a sleek satin chrome finish (626/US26D). The energy-efficient 24VDC motor ensures reliable operation, allowing for longer wire runs and compatibility with standard Schlage power supplies. Its modular design simplifies installation, making it easy to convert existing mechanical Falcon 24 or 25 series exit devices to the MEL system. With built-in diagnostics for installation and troubleshooting, the self-calibrating motor assembly ensures optimal performance. This device also detects tampering, adding an extra layer of security. The RX-MEL can be integrated with credential readers, allowing authorized users quick access, or configured for extended access periods. Compliance with various power supply options guarantees versatility, while the vandal-resistant design enhances durability. Ideal for high-traffic areas, the Falcon Lock RX-MEL-25V-L-NL-QUA-US26D-36X96-RHR KIT is the perfect solution for reliable and efficient access control.

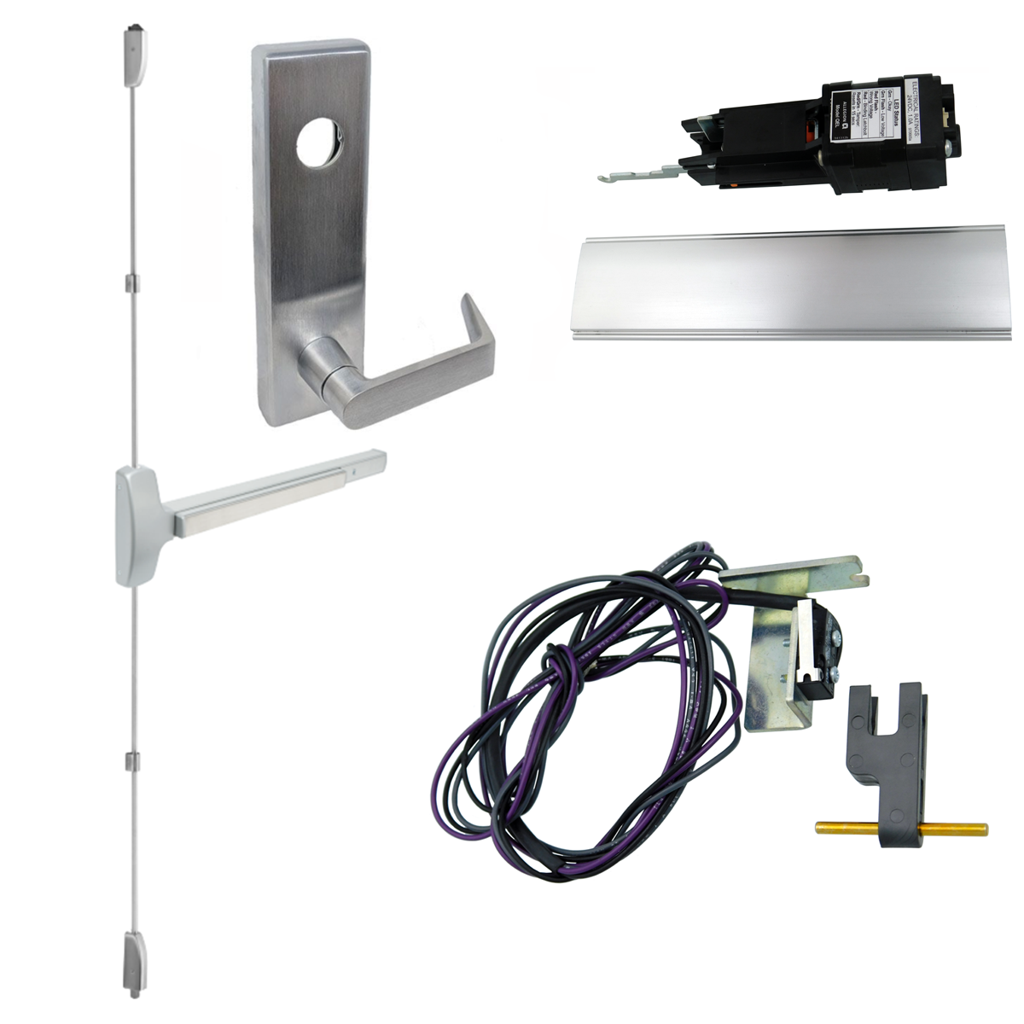

KIT - RX MEL Request to Exit, Motorized Electric Latch Retraction, Surface Vertical Rod Exit Device, Escutcheon x Quantum Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 36in x 96in, RHR, 24VDC 1 Amp, Grade 1, 626/US26D Satin Chrome

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies - PS902, 904, 906, 914; 900 Series Option Boards - 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Finishes:

• 605/US3 - Brass, Bright
• 606/US4 - Brass, Satin
• 613/US10B - Bronze, Oil Rubbed
• 619/US15 - Nickel, Satin
• 622/US19 - Black, Matte
• 625/US26 - Chromium, Bright
• 626/US26D - Chromium, Satin
• 629/US32 - Satinless Steel, Bright
• 630/US32D - Satinless Steel, Satin
• 643e/US11 - Bronze, Aged
