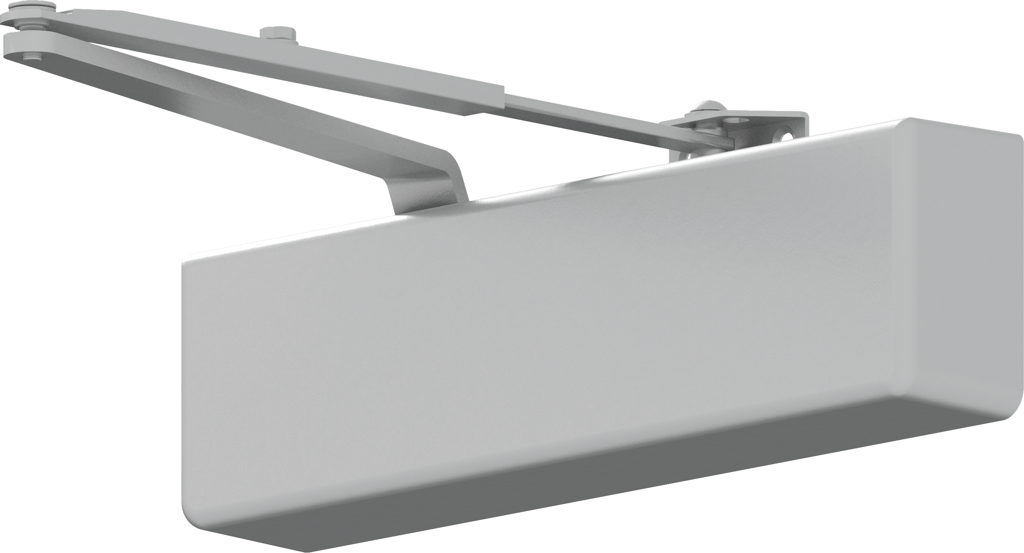

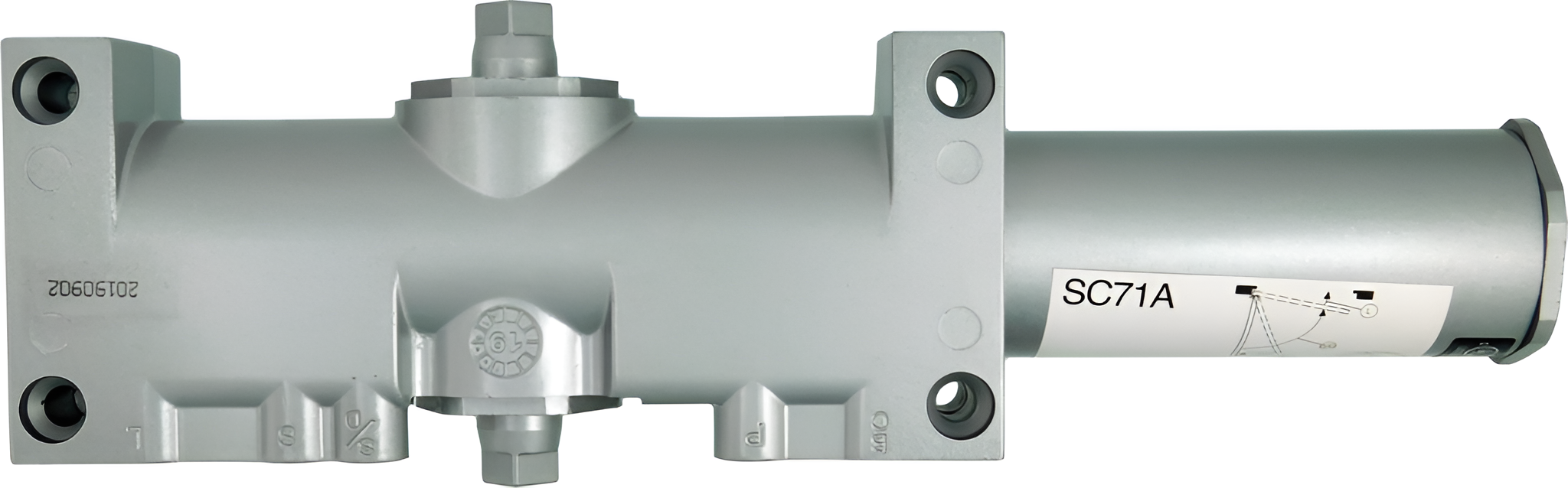

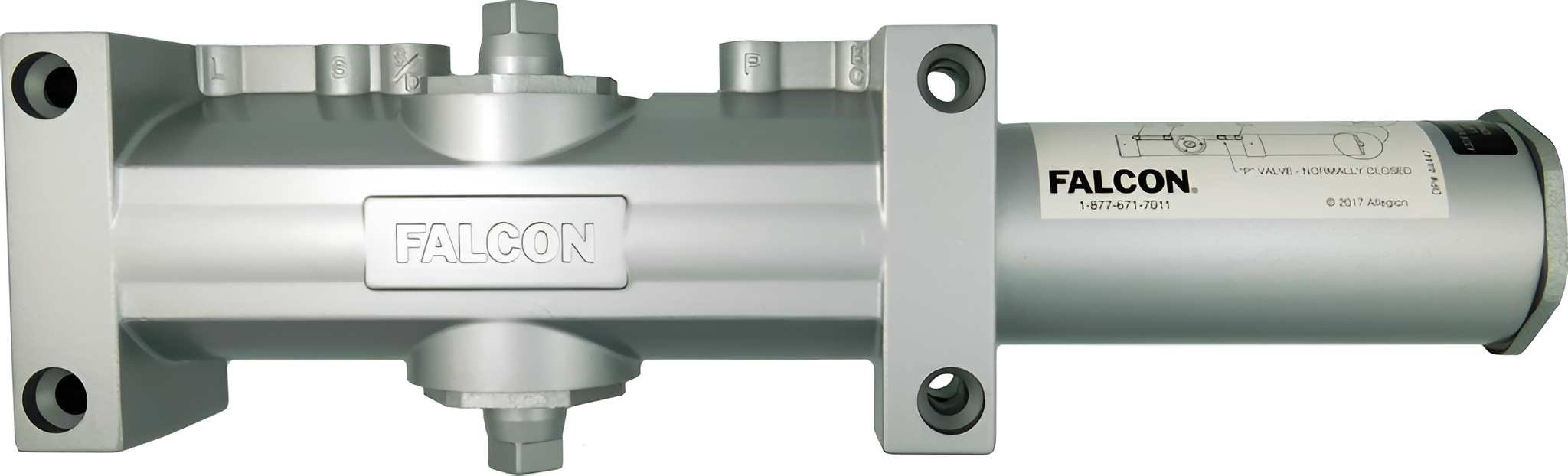

Falcon Lock SC71A-RWPA 689 Heavy Duty Surface Door Closer offers exceptional reliability and performance for high-traffic environments. Designed to meet the demands of both interior and exterior doors, this door closer is ANSI grade 1 certified and ADA compliant, ensuring accessibility and durability in retail shops, restaurants, and small offices. This model features a regular arm with a parallel arm bracket, allowing versatile mounting on hinge side, top jamb, or parallel arm configurations. With fully adjustable sizes 1-6, it accommodates various door conditions, ensuring optimal control. The SC71A-RWPA is built with a robust cast aluminum body and a double heat-treated pinion for enhanced longevity. Installation is straightforward with a universal screw pack suitable for aluminum, hollow metal, and wood doors, which includes self-reaming and tapping screws. The closer also includes separate adjustments for general speed, latch speed, and backcheck, allowing precise control over door movement. Additionally, this door closer is UL listed and complies with fire-rated assembly standards, making it a reliable choice for safety-conscious installations. With a 10-year warranty, the Falcon Lock SC71A-RWPA 689 Heavy Duty Surface Door Closer is an excellent investment for any professional looking to enhance door control while maintaining aesthetic appeal.

Heavy Duty Surface Door Closer, Regular Arm with Parallel Arm Bracket, Full Plastic Cover, Cast Aluminum, Adjustable Sizes 1-6, Double Heat-Treated Pinion, Through Bolt, Wood Machine Screws, ADA, UL, Grade 1, 689/SP28 Painted Aluminum

The SC70A Series heavy duty closers are built for applications that demand reliable door control and easy maintenance. The SC70A Series closers are ANSI grade 1, ADA compliant and deliver tough performance. Choose the SC70A for interior or exterior doors in retail shops, restaurants, small offices and many other high traffic applications.

Features:

• Fully adjustable sizes 1-6.
• Separate adjustable general speed, latch speed and backcheck.
• Closer mounts hinge side, top jamb or parallel arm when either the RW/PA or HW/PA arm is specified.
• Non-handed for left or right swinging doors.
• 1-1⁄2" diameter heat treated steel piston.
• Double heat-treated pinion.
• Universal screw pack for aluminum, hollow metal, and wood doors, includes self reaming and tapping screws.
• Staked valves.
• Meets ANSI A117.1.
• Listed ANSI/BHMA A156.4, grade 1.
• UL listed and compliant to UL10C and UBC 7-2 (1997).
• Fast and easy installation.
• 10-year warranty.

Specifications:

• Cover is UL approved for use in fire rated assemblies.
• Compliant with the UL 10C and UBC 7-2 (1997) fire test.
• Certified ANSI/BHMA A156.4 Grade 1.
• The SC71A meets the American Disabilities Act (ADA) and ANSI A117.1.

Arm Types:

• SC70A-3077PA Regular Arm: Non-handed arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• SC70A-3049PA Hold-open Arm: Optional, non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• SC70A-3077HD Heavy Duty Regular Arm: Optional, non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.
• SC70A-3077DS Dead Stop Arm: Optional, non-handed, stamped, heavy duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• SC70A-3049DS Dead Stop Hold-Open Arm: Optional, non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.
• SC70A-3077SS Spring-n-Stop Arm: Optional, non-handed, extra heavy-duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• SC70A-3049SS Spring-n-Stop Hold-Open Arm: Optional, non-handed, extra heavy-duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.
• SC70A-3077FA Forged Arm: Optional, non-handed, extra heavy-duty arm with parallel arm bracket. Includes a forged steel main arm and forearm for maximum durability in high traffic and/or abusive applications. Parallel Arm (PA) bracket is a permanent feature, installation on "push" side of the door in a parallel arm type configuration is required.
• SC70A-3049FA Forged Arm with Hold Open: Optional, left or right handed, extra heavy-duty arm with parallel arm bracket that incorporates a hold open feature. Includes a forged steel main arm and forearm formaximum durability in high traffic and/or abusive applications. Parallel Arm (PA) bracket is a permanent feature, installation on "push" side of the door in a parallel arm type configuration is required.

Installation Accessories:

• SC70A-30 Soffit Shoe Support: Provides anchorage for fifth screw used with soffit shoe, where reveal is less than 3-1⁄16" (78mm).
• SC70A-61 Blade Stop Spacer: Required to lower parallel arm shoe to clear 1⁄2" (13mm) blade stop.
• SC70A-62A Auxiliary Shoe: Requires a top rail of 7" (178mm). Optional shoe replaces PA shoe for parallel arm mounting of regular arm with overhead holder/stop.
• SC70A-72 Cover: Standard, non-handed, full plastic cover encloses the closer body.
• SC70A-18 Plate: Required for hinge side mount where top rail is less than 3-7⁄8" (98mm). Required for top jamb mounting where head frame is less than 3-7⁄8" (98mm).
• SC70A-18PA Plate: Required for parallel arm mounting where top rail is less than 6" (152 mm), measured from the stop. Plate requires 1-3⁄4" (44mm) minimum top rail measured from stop.

Finishes:

• 622 - Matte Black
• 689 - Aluminum
• 695 - Dark Bronze
• 696 - Brass
