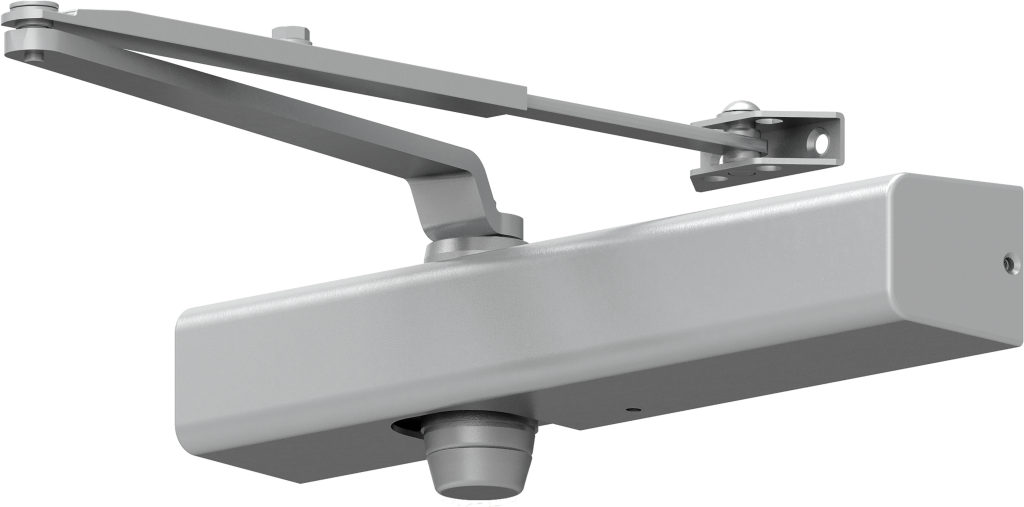

Falcon Lock SC81A-SS-689 Medium Duty Surface Door Closer offers the perfect blend of durability and performance for medium-duty applications, making it ideal for retail storefronts, cafes, and clinics. This closer is designed to ensure smooth and secure door operation while meeting the demands of accessibility standards. With an adjustable size range of 1-6, it accommodates various installation needs and complies with the Americans with Disabilities Act (ADA) and ANSI A117.1. The SC81A features a single-piece cast aluminum body that is non-handed, making it suitable for both left and right swinging doors. Its heat-treated steel piston and pinion guarantee longevity, while the cover is crafted from high-impact, UL Listed fire-retardant plastic. This product is UL approved and passes the UL 10C and UBC 7-2 (1997) fire tests, ensuring safe use in various environments. Mounting options include hinge side, top jamb, or parallel arm, providing flexibility for different door configurations. Additionally, the Falcon Lock SC81A-SS-689 comes with a universal screw pack and a 10-year warranty, underscoring its reliability and value. Enjoy peace of mind with a product that combines functionality and safety in one robust package.

Medium Duty Surface Door Closer, Spring-N-Stop Arm, Adjustable Sizes 1-6, Grade 1, 689/SP28 Painted Aluminum

Medium-duty applications like retail storefronts, cafes and clinics that need a closer that makes door operation smooth and secure. The Falcon SC80 Series brings durability and reliable performance to interior and exterior aluminum storefronts. An adjustable design ensures flexible installation and ADA compliance. The Falcon SC81 is UL approved and compliant with UL 10C and UBC 7-2 (1997) fire test. Additionally, the SC81 is designed to meet the Americans with Disabilities Act (ADA) and ANSI A117.1.

Specifications:

• Meets ANSI A117.1
• UL Listed
• 1-1/4" diameter piston
• Closer mounts hinge side, top jamb or parallel arm when either the Rw/PA or Hw/PA arm is specified
• Adjustable sizes 1-6
• Single piece cast aluminum body
• Non-handed for left or right swinging doors
• Separate adjustable general speed, latch speed and backcheck
• Heat-treated steel piston
• Heat-treated pinion
• Cover is high-impact UL Listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test
• UL 228 listed
• UL 10C approved fluid
• Universal screw pack
• 10-year warranty

Mounting Options:

• Hinge (Pull Side)
• Top Jamb (Push Side)
• Parallel (Push Side)
• Heavy Duty (Parallel)
• Dead Stop HO (Parallel)

Arm Types:

• All SC80 Series closers come with slim cover, standard arm and screw pack.
• Regular Arm, SC80-3077PA: Non-handed arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• Hold-Open Regular Arm, SC80-3049PA: Optional, non-handed, hold open arm with adjustable forearm assembly to accommodate a range of doors and frame reveal conditions. Mounts hinge side, top jamb or parallel arm. PA shoe included to allow installation in a parallel arm configuration.
• Heavy Duty Arm, SC80-3077HD: Optional, non-handed, stamped, heavy duty, parallel arm for use in high-traffic applications.
• Dead Stop Arm, SC80-3077DS: Optional, non-handed, stamped, heavy-duty, parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.
• Dead Stop Hold-Open Arm, SC80-3049DS: Optional, non-handed, stamped, heavy duty, hold-open parallel arm includes a positive mechanical stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions. Also includes a manually selective hold-open function.
• Spring-n-Stop Arm, SC80-3077SS: Optional, non-handed, extra heavy duty, forged parallel arm includes an integral spring stop and non-adjustable forearm assembly for high volume traffic or potentially abusive installation conditions.

Installation Accessories:

• Soffit Shoe Support, SC80-30: Provides anchorage for fifth screw used with soffit shoe, where reveal is less than 3-1/16" (78mm).
• Blade Stop Spacer, SC80-61: Required to lower parallel arm shoe to clear 1/2" (13mm) blade stop.
• Auxiliary Shoe, SC80-62A: Requires a top of rail of 7" (178mm). Optional shoe replaces PA shoe for parallel arm mounting of regular arm with overhead holder/stop.
• Plate, SC80-18: Required for top jamb mounting where head frame is less than 1-3/4" (44mm) to flush ceiling conditions exist.
• Plate, SC80-18FC: Required for top jamb mounting where head frame is less than 1-3/4" (44mm) or flush ceiling conditions exist. To be used with a full cover SC80-72FC.
• Plate, SC80-18PA: Required for parallel arm mounting where top rail is less than 4-3/8" (111mm), measured from the stop. Plate requires 1-7/8" (48mm) minimum top rail measured from stop.
• Plate, SC80-18PAFC: Required for parallel arm mounting where top rail is less than 4-3/8" (111mm), measured from the stop. Plate requires 1-7/8" (48mm) minimum top rail measured from stop. To be used with a full cover SC80-72FC.
• Cover, SC80-72: Standard, non-handed, slim line plastic cover encloses the closer body with a cap on the unused pinion shaft.
• Cover, SC80-72FC: Optional non-handed, full plastic cover encloses the closer body.

Cylinder Options:

• Standard Cylinder (STD) - Standard cylinder provides a main speed function to control the motion of the door from maximum opening angle until the door is a few inches from the latch where latch function controls the final closing motion. The opening swing is controlled by the hydraulic backcheck function from about 70 degrees to maximum opening angle.
• Without Backcheck (WOBC) - Special cylinder provides a main speed function to control the motion of the door from maximum opening angle until the door is a few inches from the latch where latch function controls the final closing motion.
• Delayed Action Cylinder - Special cylinder provides a separate adjustable delayed closing motion from maximum opening angle to approximately 70 degrees. Then the main speed function controls the door motion until the door is a few inches from the latch where latch function controls the final closing motion. During the opening swing the door is controlled by the hydraulic backcheck function from about 70 degrees to maximum opening angle.

Features

• UL Listed
• Heat-treated pinion
• Heat-treated steel piston
• Cover is high-impact UL Listed fire retardant plastic that meets UL 10C and UBC 7-2 (1997) fire test
• UL 10C approved fluid
• Universal screw pack
• Adjustable sizes 1-6
• Closer mounts hinge side, top jamb or parallel arm when either the Rw/PA or Hw/PA arm is specified
• 10-year warranty
• UL 228 listed
• Separate adjustable general speed, latch speed and backcheck
• Single piece cast aluminum body
• 1-1/4" diameter piston
• Non-handed for left or right swinging doors
• Meets ANSI A117.1
