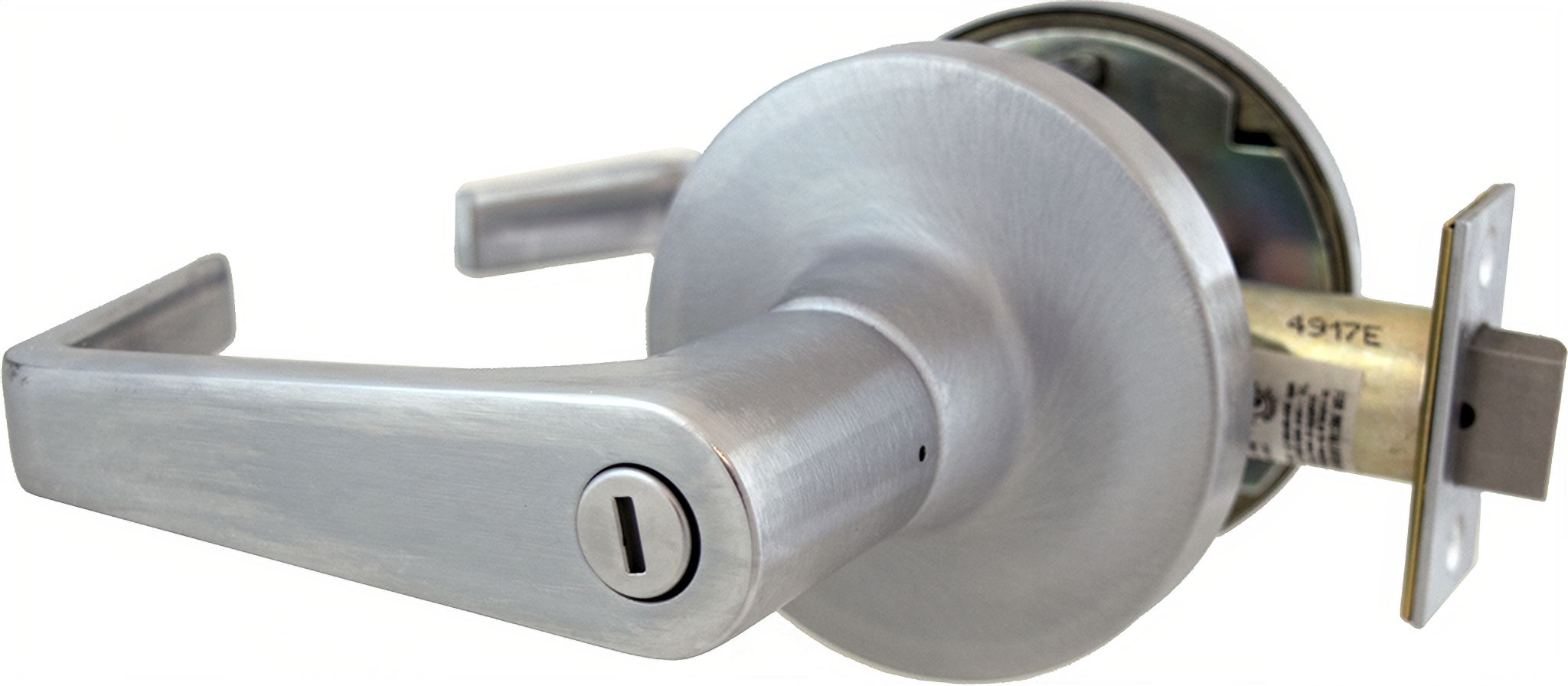

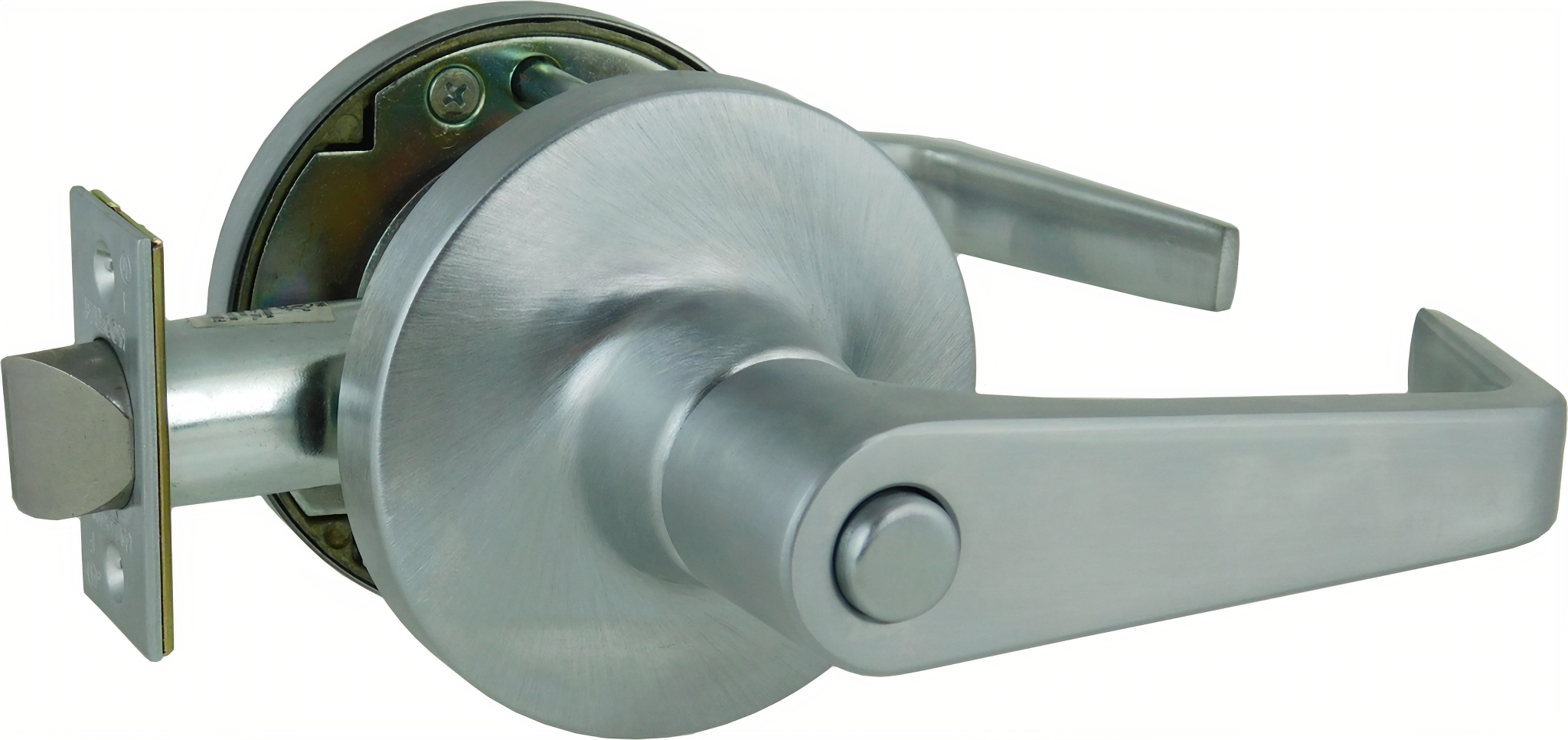

Falcon Lock T301SDAN626 Privacy Dane Lever Lock, Non-Keyed, Grade 1, Satin Chrome, 2-3/4in BacksetFalcon Lock T301SDAN626 Privacy Dane Lever is engineered for durability and performance, making it an ideal choice for high-use environments. This non-keyed cylindrical lock features a robust construction with a heavy-duty compression spring that exceeds ANSI/BHMA cycle test requirements. The T Series lock ensures reliable operation, thanks to its unique design that avoids common torsion spring failures. Designed to meet ANSI/BHMA A156.2, Series 4000, Grade 1 standards, the T301SDAN626 is UL Listed for a three-hour fire rating, providing peace of mind in terms of safety. The Pressure Release™ feature allows the outside lever to move freely when locked, enhancing user convenience. This privacy lock accommodates door thicknesses ranging from 1-3/4" to 2-1/8" and comes with a standard 2-3/4" backset, with options for 2-3/8" and 5" as well. The rose and lever are crafted from solid materials, ensuring they match seamlessly with the satin chrome finish. Installation is straightforward, with a non-handed design that eliminates the need for field adjustments. The T301SDAN626 is an excellent choice for both commercial and residential applications, providing reliable locking solutions that blend functionality with style.
Privacy Dane Lever, Non-Keyed, Cylindrical Lock, ANSI Strike, 2-3/4in Backset, Grade 1, UL, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Falcon is focused on offering a solid product, which is why the T Series lock is constructed with a compression spring that far exceeds ANSI/BHMA cycle test requirements. Unlike typical torsion springs that can break at the bend points, the T Series spring provides the most robust lever support for years of reliable performance. Perfect for high-use applications, the T Series lock delivers on Falcon’s promise of providing a solid product at a solid price.
Features:
- Key-in-lever cylindrical locksets shall be Falcon Lock T Series or equal and meet the following requirements:
- All locks shall meet the new ANSI/BHMA A156.2, Series 4000,Grade 1 for key-in-lever locksets.
- Locksets shall be UL Listed (3 hour A Label).
- Locksets shall be provided standard with Pressure Release™feature. When outside lever is locked, it is not rigid but will move freely without operating the latch bolt.
- Lever trim shall have individual heavy-duty compression springs behind rose for lever return and to prevent lever sag. Trim shall be through-bolted with two (2) 10-32 screws coated with thread sealant to provide strength and resistance to loosening. Inner Elevation Door Edge Standard Strike
- All lever designs shall be solid and meet the federal ADA and state disability requirements. Inside levers shall be attached by Allen-head set screw to prevent tampering or vandalism.
- Locksets shall adjust to fit door thickness from 1-3/4" to 2- 1/8".
- All locksets shall be non-handed and not require field disassembly for re-handing.
- Preparation for door must be non-handed.
Specifications:
- Door Thickness: 1-3/4" to 2-1/8" standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4", please specify door thickness.
- Backset: 2-3/4" standard. 2-3/8" also available. Link (A22161-005-10) available for 5" backset.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
- Handing: Locks are non-handed.
- Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
- Keyways: "G" keyway standard on conventional cylinders. "A" keyway standard on I/C core cylinders. Also available with some optional keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
- Latches: 9/16" bolt projection, UL listed with latch faceplates 2-1/4" x 1-1/8" with square corners standard. 3/4" projection, UL listed latch with 2-3/4" backset also available. Adjustable front standard.
- Strikes: 4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.* Screws: Furnished with combination screws for use in wood or metal doors and frames.
- Electric Functions: Available in 24 VDC .185 AMP.
- Certifications: ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1. UL: 3 hour A label. and outer trim shall "bottom out" to prevent door collapse. Roses shall be minimum of 3-1/2" diameter.
Functions:
- T101 - Passage/Closet Latchset
- T301 - Privacy Lock
- T351 - Closet Lock
- T381 - Classroom Security Lock
- T411 - Asylum Lock
- T501 - Entry Lock
- T511 - Entry/Office Lock
- T521 - Office Lock
- T561 - Classroom Lock
- T571 - Dormitory Lock
- T581 - Storeroom Lock
- T851 - Storeroom (Electrified – Fail Safe)
- T881 - Storeroom (Electrified – Fail Secure)
- T12 - Dummy Trim
Finishes:
- 605/US3 - Bright brass
- 606/US4 - Satin brass
- 613/US10B - Oil rubbed bronze
- 619/US15 - Satin nickel
- 622/US19 - Matte black
- 625/US26 - Bright chrome
- 626/US26D - Satin chrome
- 643e/US11 - Aged bronze
Attributes
Alternate Codes: 104724, 496067, T301SDAN626
Backset: 2-3/4"
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Certifications: A156.2, A label, ANSI, BHMA, UL Listed for 3-hour fire door
Cylinder Type: Keyless
Door Application: Cylindrical Levers
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Fasteners: Metal Screws, Wood Screws
Finish Code: 626
Finish Color: Satin Chrome
Fire Rated: Yes
Fire Rating: 180 min
Function: Privacy Lock
Grade: Grade 1
Handing: Non-Handed
Key Quantity: 2
Latchbolt Type: 1-1/8" x 2-1/4", Springlatch, Square Corner
Lever Design: Dane
Manufacturer: Falcon Lock
Rose/ Escutcheon: Rose
Series: T Series
Strike Lip Length: 1-3/16"
Strike Type: ANSI 1-1/4" x 4-7/8"
